E30013 Welding Adapter G1 for Process Sensors Stainless Steel | IFM

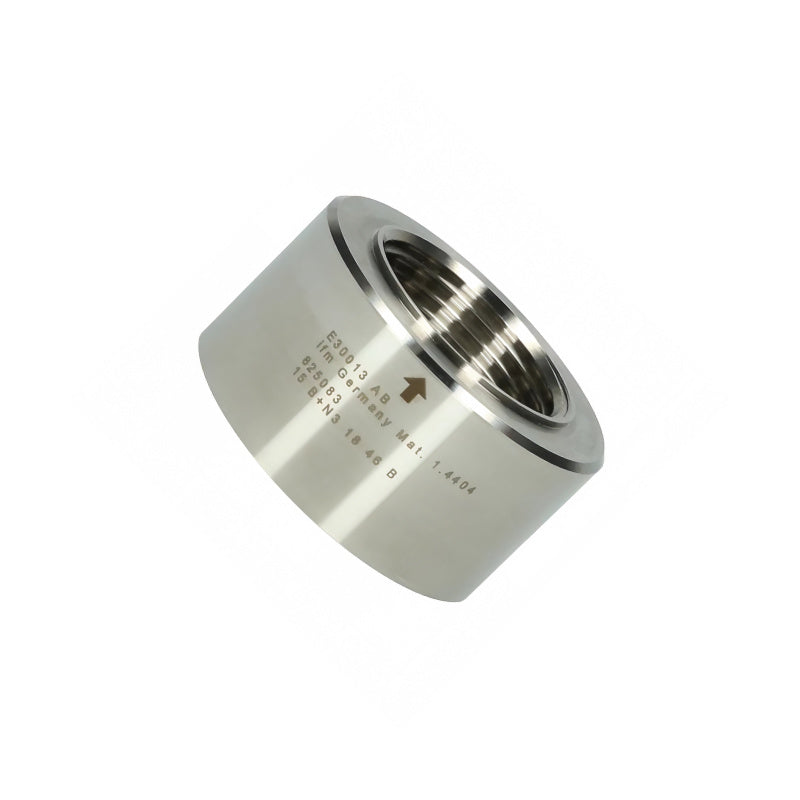

The Original New IFM E30013 Welding Adapter is a hygienic G1 welding adapter designed for the permanent installation of process sensors in tanks and piping systems. Manufactured from high‑grade stainless steel (1.4404 / 316L), this adapter enables EHEDG‑compliant and FDA‑compliant integration, making it ideal for applications in the food and beverage, pharmaceutical, and sanitary process industries. Its robust stainless steel design ensures high pressure resistance and reliable sealing even in harsh industrial environments.

Core Engineering Highlights:
G1 hygienic sensor connection (sealing cone) | Welding adapter Ø 50 mm process connection | Stainless steel (1.4404 / 316L) construction | 150 bar pressure rating | Surface finish Ra < 0.4 µm / Rz = 4 µm | EHEDG Tested | EC1935/2004 approved | FCM compliant | 300 g weight | 1 piece per packing unit

Key Features:

• Original New IFM E30013 welding adapter

• Hygienic G1 sealing cone connection for process sensors with G1 hygienic fitting

• Welding adapter Ø 50 mm for tank or pipe installation

• High‑grade stainless steel (1.4404 / 316L) for corrosion resistance and durability

• 150 bar pressure rating for demanding industrial applications

• Surface finish of wetted parts: Ra < 0.4 µm / Rz = 4 µm for hygienic requirements

• EHEDG Tested and EC1935/2004 approved for food and pharmaceutical applications

• FCM (Food Contact Material) compliant

• Robust stainless steel design for use in harsh industrial environments

• Suitable for industrial and sanitary applications

• Compatible with sensors with G1 sealing cone connection

• CRN approved for applications according to CRN standards

Applications:

• Hygienic installation of process sensors in tanks and piping systems

• Food and beverage industry (EHEDG and FDA compliant installations)

• Pharmaceutical and biotechnology applications

• Sanitary process industries requiring hygienic sensor integration

• Industrial applications with high pressure requirements

• CIP (Clean‑in‑Place) capable systems

• Dairy and beverage production lines

Technical Specifications:

System Compatibility:

• Compatible with IFM process sensors with G1 hygienic fitting (sealing cone)

• Suitable for sensors with G1 sealing cone connection

• Tanks and piping systems requiring hygienic sensor integration

• Food and beverage, pharmaceutical, and sanitary process equipment

• CIP (Clean‑in‑Place) capable systems

Installation Notes:

• Welding must be carried out by authorised personnel

• The adapter must not warp or have the sealing edge damaged during the welding process

• For hygienic areas to EHEDG and 3‑A, adhere to the applicable EHEDG and 3‑A directives

• Compatibility between medium and product material must be checked in all applications

Related Products:

• E30011 – Welding adapter for tanks (Ø 30 mm)

• E30012 – Welding adapter for tanks (Ø 40 mm)

• E30014 – Welding adapter variant

• Welding mandrel (brass, G1) – Accessory for heat dissipation during welding

• E43301 – Welding adapter G1/2 for process sensors
