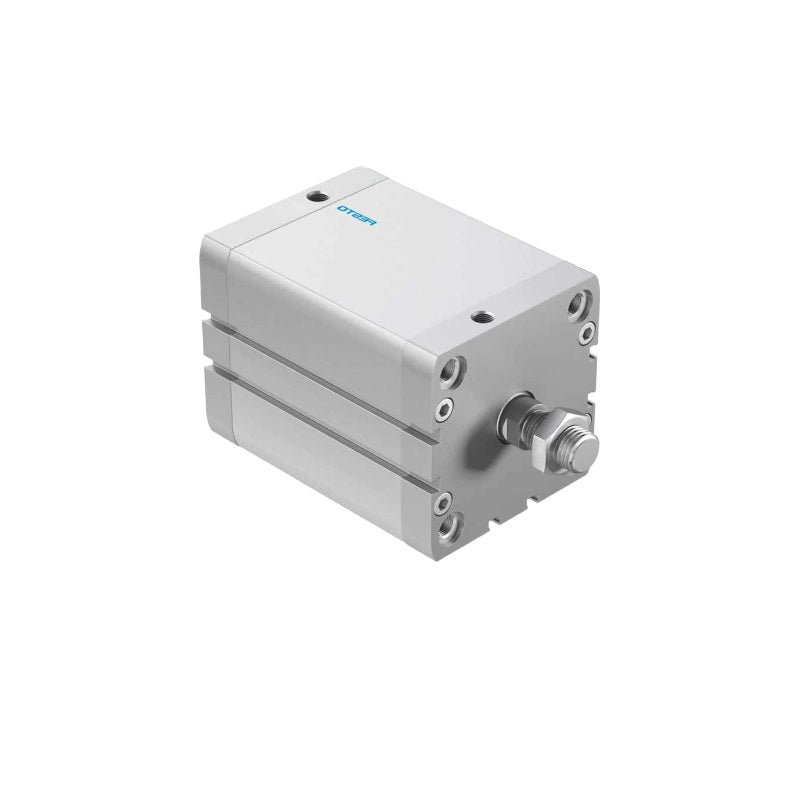

Festo ADN-50-25-A-P-A Compact Cylinder 50mm Bore 25mm Stroke Double Acting

Overview
The Festo ADN-50-25-A-P-A (part number 536314) is a high-performance double-acting compact cylinder from the ADN series, designed for precise linear motion in tight industrial spaces. It conforms to the ISO 21287 standard, offering up to 50% less installation space compared to comparable cylinders to ISO 15552.

With a 50 mm piston diameter and a 25 mm stroke, this cylinder delivers a theoretical force of 1178 N advancing and 1057 N retracting at 6 bar. It is suitable for small loads, low speeds, and applications requiring minimal cushioning capacity. The G1/8 pneumatic connection and M12x1.25 male piston rod thread provide easy integration into existing systems.

The cylinder features elastic cushioning rings/plates at both ends, which absorb residual energy, ensure long service life, and require no adjustment, saving time during installation. It includes a magnetic piston for position sensing and is designed for any mounting position. The cylinder is RoHS compliant and carries a corrosion resistance class of CRC 1 (low corrosion stress), making it suitable for a wide range of industrial applications. The country of origin is Germany.

Key Features

• Double-Acting Compact Cylinder – Provides powered motion in both directions for precise control over extend and retract strokes.

• ISO 21287 Compliant – Conforms to international standards, ensuring global compatibility and up to 50% less installation space than comparable ISO 15552 cylinders.

• 50 mm Bore x 25 mm Stroke – Compact cylinder size ideal for applications requiring reliable linear motion in confined spaces.

• Elastic Cushioning Rings/Plates (P) at Both Ends – Integrated cushioning absorbs residual energy, extends service life, and requires no adjustment, saving time during installation.

• High-Alloy Steel Piston Rod with Male Thread – Provides excellent corrosion resistance and durability, with an M12x1.25 male thread for direct attachment of tooling.

• Magnetic Piston – Enables non-contact position sensing via proximity switches for accurate end-position detection.

• Wide Operating Range – Operates at 0.06…1 MPa (0.6…10 bar) pressure and -20…+80 °C temperature, suitable for diverse industrial environments.

• Theoretical Force @ 6 bar – 1178 N advancing / 1057 N retracting for reliable actuation of moderate loads.

• G1/8 Pneumatic Connection – Standard port size for easy integration into existing pneumatic systems.

• Low Corrosion Stress (CRC 1) – Suitable for applications with low corrosion stress.

• Original Brand New, Within Warranty Period – Genuine Festo product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

Applications
Ideal for linear motion control in factory automation, packaging machinery, material handling, pick-and-place systems, assembly lines, and general industrial automation where space is limited. Suitable for applications such as clamping, ejecting, lifting, and pressing that require reliable double-acting actuation in confined spaces.

Package Includes

• 1 x Festo ADN-50-25-A-P-A Compact Cylinder (536314)

• Note: Mounting accessories, proximity switches, and fittings are sold separately.
