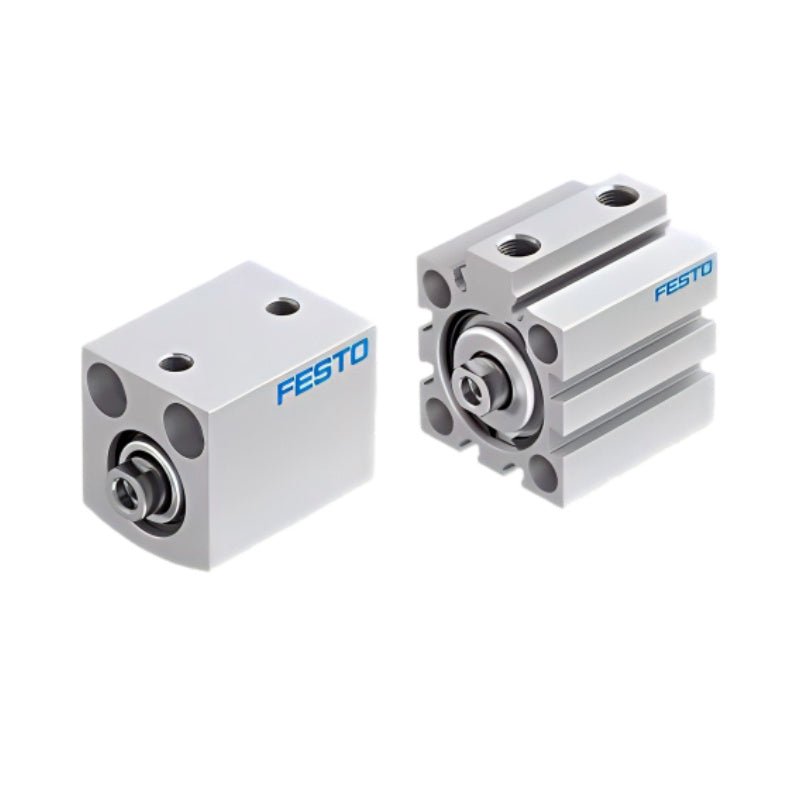

Festo ADVC-25-10-I-P-A 8076360 Compact Cylinder 25mm Bore 10mm Stroke

Festo ADVC-25-10-I-P-A is a double-acting compact cylinder from the ADVC short-stroke series. It features a piston diameter of 25 mm and a stroke of 10 mm. The cylinder body is made of anodised aluminium, and the piston rod is manufactured from high-alloy stainless steel. It is designed for clamping tasks in confined spaces, provides high forces relative to its size, and offers rapid response when pressure is applied. The cylinder is suitable for position sensing and is ideal for applications with limited installation space.

Applications:

• Clamping tasks in machining jigs and fixtures

• Positioning, ejecting, pressing and lifting operations in automation systems

• Material handling in confined spaces with short strokes

• OEM machine building and general factory automation

Core Specifications:

• Mode of operation: Double‑acting

• Piston diameter: 25 mm

• Stroke: 10 mm

• Piston-rod end: Female thread

• Cushioning: Elastic cushioning rings/pads at both ends (P)

• Operating pressure range: 1 … 10 bar

• Pneumatic connection: M5

• Recommended operating medium: Compressed air to ISO 8573‑1:2010 [7:4:4]

• Position sensing: Via proximity switch (magnetic piston)

• Mounting position: Any

• Theoretical force at 6 bar, advancing: 295 N

• Theoretical force at 6 bar, retracting: 247 N

Advanced Specifications:

• Construction material: Anodised aluminium (barrel), high‑alloy steel (piston rod), NBR, TPE‑U(PU) (seals)

• Ambient temperature: –20 °C … +80 °C

• Corrosion resistance class (CRC): 1 (low corrosion stress)

• Fastening type: Through‑hole mounting; optional accessories for swivel, foot, or flange mounting

• LABS (PWIS) conformity: VDMA24364‑B2‑L

System Integration:

• The dimensions of the pneumatic cylinder conform to the mounting hole pattern of VDMA 24562 for a 25 mm piston diameter.

• Easy attachment of proximity sensors (e.g., SME‑8‑S‑LED‑24, SMT‑8 series) into integrated T‑slots for end‑position sensing.

• Compatible with additional mounting accessories, such as swivel brackets, foot mountings, and other fastening elements.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
