Festo ADVU-50-10-P-A Compact Cylinder 50mm Bore 10mm Stroke Double Acting

Overview

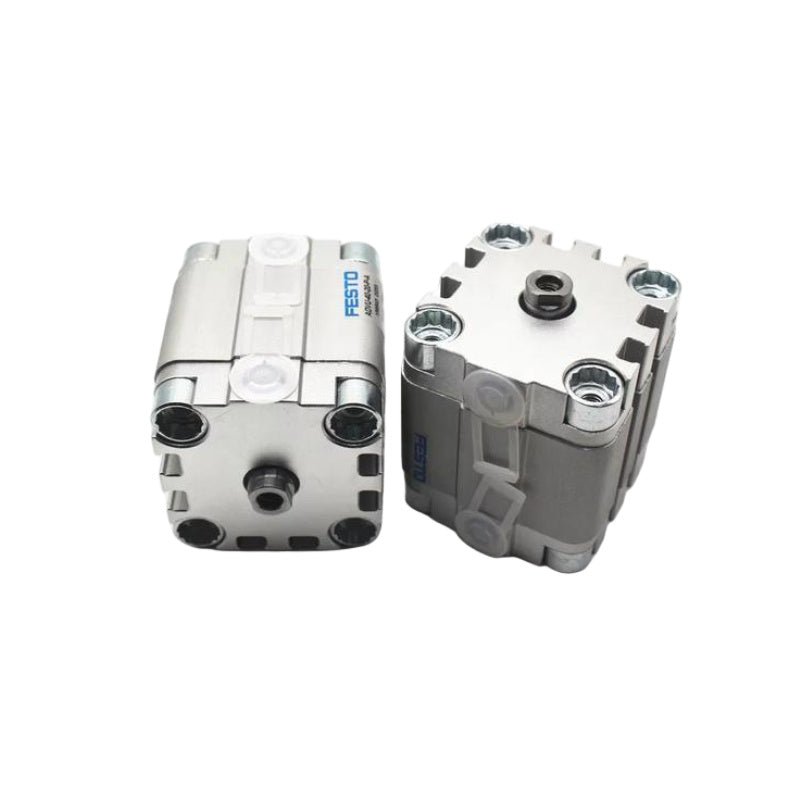

The Festo ADVU-50-10-P-A (part number 156550) is a high-performance double-acting compact cylinder from the ADVU series, designed for precise linear motion in industrial automation applications requiring a space-saving design. This profile cylinder conforms to ISO 21287, offering up to 50% less installation space compared to standard cylinders to ISO 15552.

With a 50 mm piston diameter and 10 mm stroke, this cylinder delivers a theoretical force of 1178 N advancing and 1057 N retracting at 6 bar. It features G1/8 pneumatic connection and an M8 female piston rod thread, enabling easy integration into a wide range of pneumatic systems.

The ADVU-50-10-P-A is equipped with elastic cushioning rings/plates at both ends (P cushioning), which reduce impact energy at the end of the stroke, minimizing noise and mechanical stress for extended service life. A magnetic piston allows for non-contact position sensing via proximity switches mounted along the cylinder body.

The cylinder barrel and covers are manufactured from wrought aluminium alloy, while the piston rod is constructed from high-alloy steel, providing excellent corrosion resistance (CRC 2 – Moderate corrosion stress) and durability in demanding industrial environments. The cylinder operates over a wide pressure range of 0.8 to 10 bar and a temperature range of -20 °C to +80 °C, making it suitable for diverse industrial environments.

Key Features

• Double-Acting Operation – Provides powered motion in both directions for precise control over extend and retract strokes.

• ISO 21287 Compliant – Conforms to international standards, offering up to 50% less installation space than comparable ISO 15552 cylinders.

• 50 mm Bore x 10 mm Stroke – Compact cylinder size ideal for applications requiring reliable linear motion in confined spaces.

• Elastic Cushioning Rings/Plates at Both Ends (P) – Integrated cushioning absorbs residual energy, extends service life, and requires no adjustment, saving time during installation.

• High-Alloy Steel Piston Rod with Female Thread – Provides excellent corrosion resistance and durability, with an M8 female thread for direct attachment of tooling.

• Magnetic Piston – Enables non-contact position sensing via proximity switches for accurate end-position detection.

• Wide Operating Range – Operates at 0.8…10 bar pressure and -20…+80 °C temperature, suitable for diverse industrial environments.

• Theoretical Force @ 6 bar – 1178 N advancing / 1057 N retracting for reliable actuation of moderate loads.

• G1/8 Pneumatic Connection – Standard port size for easy integration into existing pneumatic systems.

• Corrosion Resistance Class CRC 2 – Suitable for applications with moderate corrosion stress.

• Original Brand New, Within Warranty Period – Genuine Festo product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

Applications
Ideal for linear motion control in factory automation, packaging machinery, material handling, pick-and-place systems, assembly lines, and general industrial automation where space is limited. Suitable for applications such as clamping, ejecting, lifting, and pressing that require reliable double-acting actuation in confined spaces.

Package Includes

• 1 x Festo ADVU-50-10-P-A Compact Cylinder (156550)

• Note: Mounting accessories, proximity switches, and fittings are sold separately.
