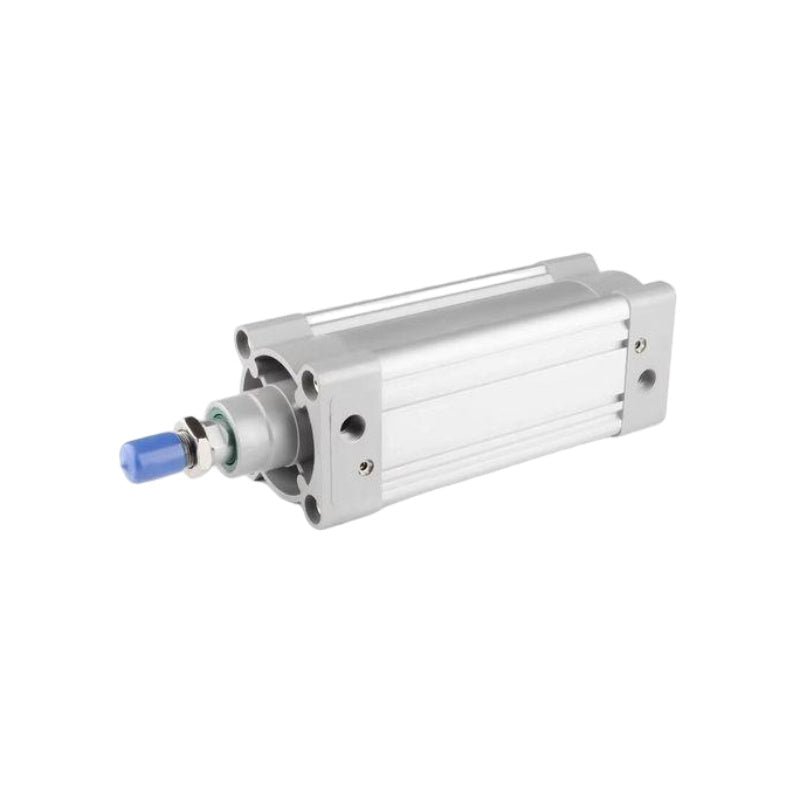

Festo DSBC-63-50-PPVA-N3 1383580 ISO Cylinder 63mm Bore 50mm Stroke

Festo DSBC-63-50-PPVA-N3 is a double-acting pneumatic cylinder compliant with ISO 15552. Piston diameter 63 mm, stroke 50 mm. Piston rod thread M16x1.5 male. Adjustable pneumatic cushioning (PPV) at both ends for smooth stroke deceleration. Profile barrel design with two integrated sensor slots for position detection. Wide operating pressure range 0.4 … 12 bar. Die‑cast aluminium end covers, wrought aluminium alloy barrel, high‑alloy steel piston rod. For industrial automation, material handling, packaging machinery, and assembly systems requiring robust linear motion.

Applications:

• General pneumatic actuation in factory automation

• Material handling and conveyor systems

• Packaging machinery and assembly lines

• OEM equipment requiring ISO 15552 dimensional compliance

Core Specifications:

• Mode of operation: Double‑acting

• Piston diameter: 63 mm

• Stroke: 50 mm

• Piston rod thread: M16x1.5 male

• Pneumatic connection: G 3/8 (female)

• Operating pressure: 0.4 … 12 bar

• Cushioning: Pneumatic cushioning, adjustable at both ends (PPV)

• Cushioning length: 22 mm

• Ambient / media temperature: –20 °C … +80 °C

• Position detection: Via proximity sensor (sensor slots on barrel)

• Conforms to standard: ISO 15552 (ISO 6431, VDMA 24562)

Advanced Specifications:

• Theoretical force at 6 bar advancing: 1870 N

• Theoretical force at 6 bar retracting: 1682 N

• Operating medium: Compressed air as per ISO 8573‑1:2010 [7:4:4] (lubricated possible; continued lubrication required if applied)

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• Impact energy in end positions: 1.3 J

• Basic weight for 0 mm stroke: 1740 g

• Additional weight per 10 mm stroke: 62 g

• Moving mass at 0 mm stroke: 430 g

• Additional moving mass per 10 mm stroke: 25 g

• Mounting position: any

• Piston rod material: High‑alloy steel

• Cylinder barrel material: Wrought aluminium alloy, smooth anodised

• End cover material: Die‑cast aluminium, coated

• Seal material: TPE‑U(PU)

• RoHS compliant

System Integration:

• Belongs to Festo DSBC series of ISO 15552 profile cylinders.

• Two integrated sensor slots accept Festo proximity sensors (SME/SMT‑8, SMT‑10 series) without additional mounting brackets.

• Direct mounting via female thread; comprehensive range of mounting accessories (foot, flange, trunnion, swivel, clevis) available for flexible installation.

• For detailed installation and pneumatic circuit diagrams, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
