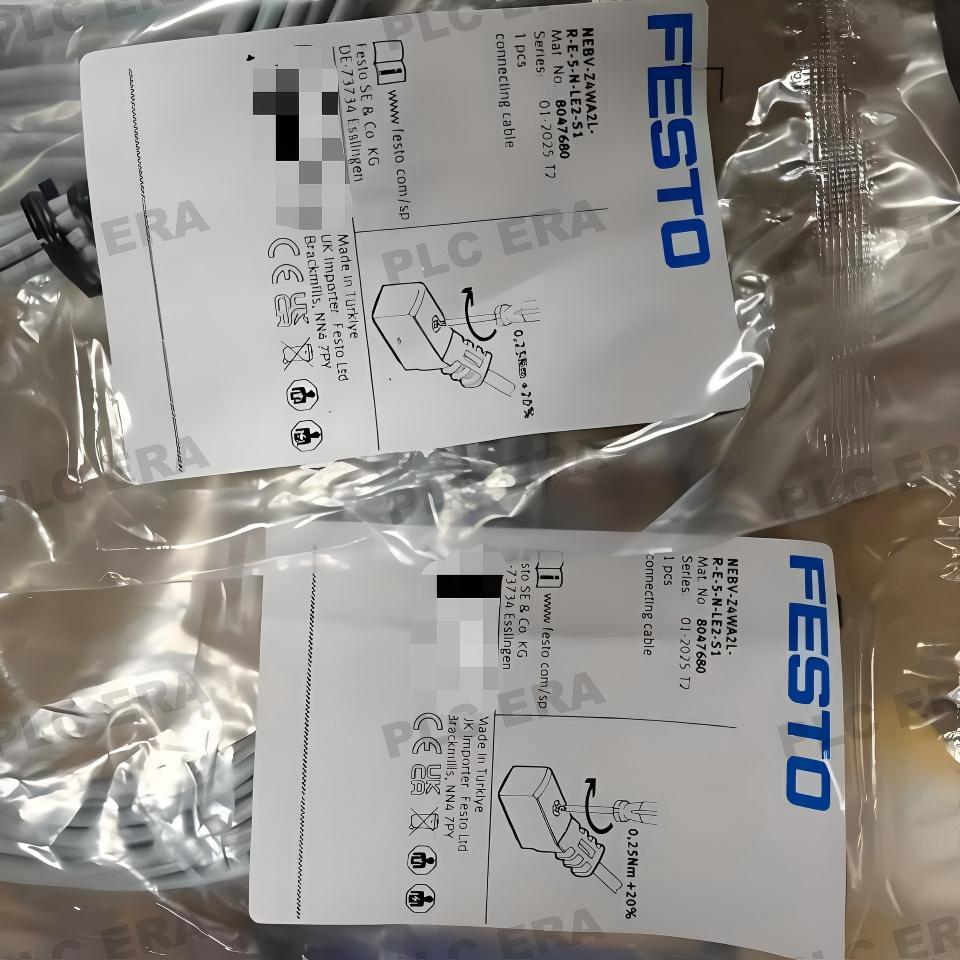

Festo NEBV-Z4WA2L-R-E-5-N-LE2-S1 8047680 Connecting Cable 5m IP65

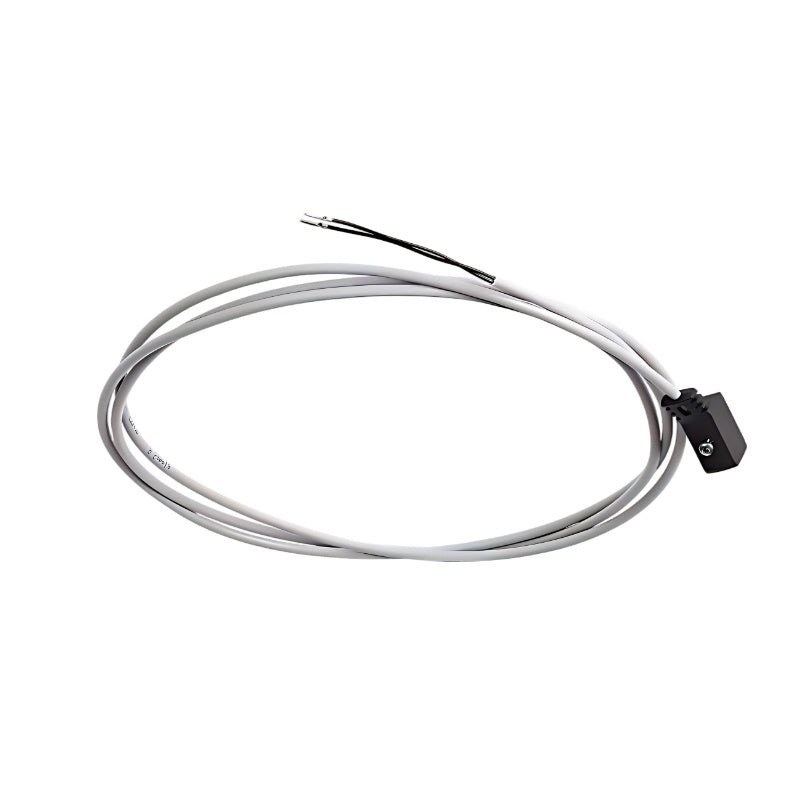

Festo NEBV-Z4WA2L-R-E-5-N-LE2-S1 is a pre-assembled connecting cable for solenoid valves and pneumatic pilot valves. 5 metres in length, 2-pole configuration with angled plug socket (ZC connector pattern, M2 central screw) on the field device side and open ends on the controller side. Integrated yellow LED for signal status display, holding current reduction, and protective circuit.

Applications:

• Power supply and control signalling for Festo solenoid valves (Type A/B/C)

• Valve terminal and manifold connections

• Industrial automation and pneumatic control systems

• OEM equipment requiring pre-assembled valve cabling

Core Specifications:

• Series: NEBV

• Cable length: 5 m

• Number of poles: 2

• Electrical connection 1 (field device side): Angled plug socket, ZC connection pattern, M2 central screw

• Electrical connection 2 (controller side): Open end

• Nominal operating voltage: 24 V DC

• Operating voltage range: 20.4 – 26.4 V DC

• Surge strength: 2.4 kV

• Cable diameter: 2.9 mm ±0.1 mm

• Cable structure: 2 × 0.14 mm²

• Conductor cross-section: 0.14 mm²

• Cable sheath material: TPE-U(PUR), grey

• Housing material: TPE-U(PU), black

• Screw material: Stainless steel

• Protection rating: IP65 (when assembled)

• Ambient temperature: -10 °C … +50 °C

• Corrosion resistance class (CRC): 3 – high corrosion stress

• Product weight: approx. 90 g

• Product weight (incl. packaging): approx. 59 g

• Country of origin: Bulgaria (ISO code BG)

• Packaging unit: 1 piece

• CE, RoHS compliant

Advanced Specifications:

• Signal status display: Yellow LED

• Additional functions: Holding current reduction, protective circuit

• Polarity protected: Bipolar

• Suitable for energy chains (chain-link trunking)

• Minimum bending radius (flexible installation): ≥ 29 mm

• Connection frequency: 50 mating cycles

• Material, electrical contacts: Copper alloy, tinned

• Material, insulation: PP (polypropylene)

• Cable identification: Without inscription label holder

System Integration:

• Belongs to Festo NEBV series of pre-assembled connecting cables for pneumatic valves.

• Designed for use with Festo solenoid valves with connection pattern ZC.

• Mounts via M2 central screw on the field device side; open ends for direct wiring on controller side.

• For detailed installation and wiring diagrams, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
