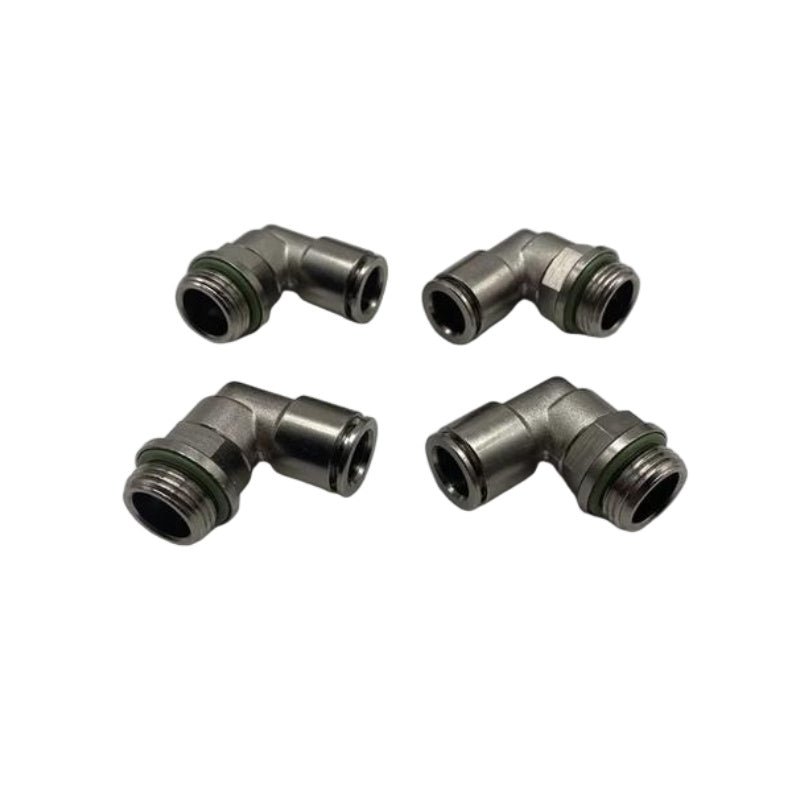

Festo NPQH-L-G38-Q10-P10 578288 Push-in L-fitting G3/8 to 10mm 90° Elbow
Festo NPQH-L-G38-Q10-P10 578288 Push-in L-fitting G3/8 to 10mm 90° Elbow
555 en existencias
No se pudo cargar la disponibilidad de retiro
Overview
The Festo NPQH-L-G38-Q10-P10 (order code: 578288) is a compact push‑in L‑fitting designed for quick and reliable connection of rigid or semi‑rigid pneumatic tubing. Featuring a 90° elbow design with a male G3/8 thread on one end and a 10mm push‑in connector on the other, this fitting allows space‑saving tube routing in tight automation environments. The nickel‑plated brass body provides excellent corrosion resistance, while the push‑pull principle enables tool‑free, one‑handed installation.
Key Features
-
Original brand new, within warranty period – Factory‑sealed, genuine Festo component with full manufacturer warranty.
-
100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.
-
90° elbow (L‑shape) design – Ideal for tight spaces and directional changes, allowing clean routing of air lines without bending or stressing the tubing.
-
Tool‑free push‑in technology – Push‑pull principle enables quick connection and disconnection of tubing without special tools, reducing downtime during installation or maintenance.
-
High corrosion resistance (CRC 3) – Robust, solid nickel‑plated brass construction with chemical resistance, suitable for demanding industrial environments and even applications involving welding spatter.
-
Wide operating pressure range – Rated for -0.95 bar to 20 bar, powerful enough for use with FESTO pressure booster DPAs.
-
High temperature resistance – Operating temperature from 0 °C to 150 °C, suitable for high‑temperature pneumatic applications.
-
Food industry compatible – Suitable for use with food, NSF/ANSI 169 certified, and resistant to cleaning agents.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Festo |
| Type / Part No. | NPQH-L-G38-Q10-P10 / 578288 |
| Product type | Push‑in L‑fitting (90° elbow) |
| Pneumatic connection 1 | Male thread G3/8 |
| Pneumatic connection 2 | For 10 mm OD tubing |
| Operating pressure | -0.95 bar … 20 bar |
| Operating temperature | 0 °C … 150 °C |
| Nominal size | 8.5 mm |
| Tubing insertion depth | 18.3 mm |
| Material | Nickel‑plated brass (housing); FPM (seal); high‑alloy stainless steel (tube retaining claw) |
| Corrosion resistance class (CRC) | 3 (high corrosion stress) |
| Type of seal on screw‑in stud | Sealing ring |
| Assembly position | Any |
| Container size | 10 pieces |
| Nominal tightening torque | 9 Nm (±20%) |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| RoHS compliant | Yes |
Applications
-
Compressed air systems in factory automation, packaging machinery, and assembly lines.
-
Space‑constrained installations requiring 90° tube routing inside control cabinets and automation frames.
-
High‑pressure systems up to 20 bar, including use with pressure booster DPAs.
-
Food industry applications requiring NSF certification and cleaning agent resistance.
Package Includes
-
1 x Festo NPQH-L-G38-Q10-P10 push‑in L‑fitting (578288)
