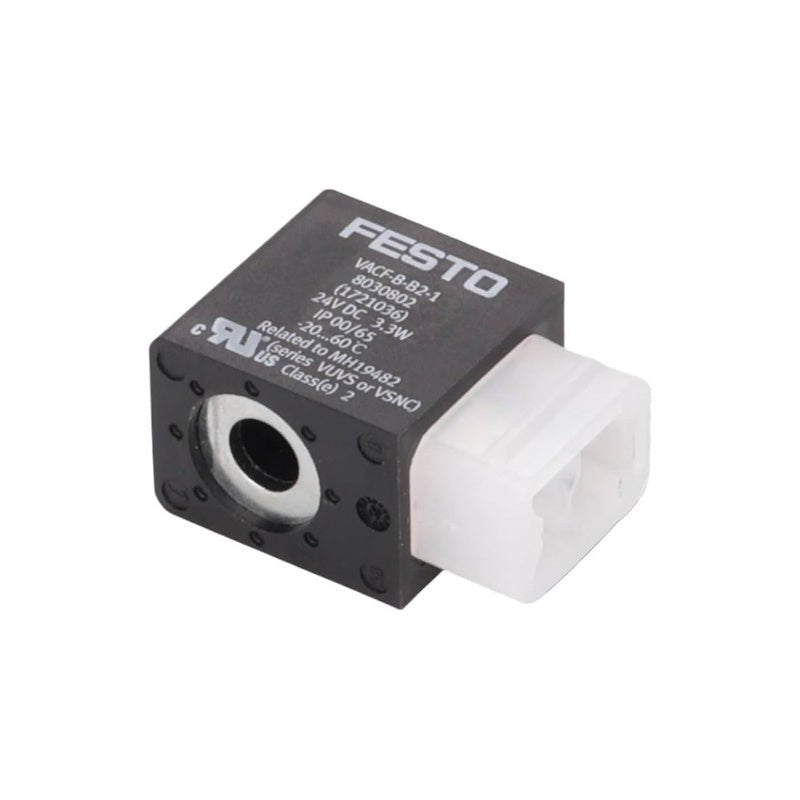

Festo VACF-B-B2-1 8030802 Solenoid Coil 24V DC 3.3W IP65

Festo VACF-B-B2-1 is a solenoid coil for pneumatic directional control valves with DC voltage 24 V and a rated power consumption of 3.3 W. Designed for VUVS and VSNC valve series, the housing of PA and steel provides reliable electromagnetic actuation for valve systems. A 100 % duty cycle supports continuous operation, and the IP65 degree of protection together with the extensive temperature range enables use in demanding industrial environments.

Applications:

• 3/2, 5/2 and 5/3 directional control valves with VUVS and VSNC series

• Factory automation, packaging and material handling systems

• Pneumatic manifold assemblies

• Machinery building and OEM equipment

Core Specifications:

• Type: VACF‑B‑B2‑1, 8030802

• Control voltage: 24 V DC, ±10 % permissible fluctuation

• Power consumption: 3.3 W

• Electrical connection: Form B (type B, plug pattern to industry standard, 11 mm)

• Solenoid armature: For 8.0 mm armature tube

• Insulation material class: H (high thermal capability)

• Duty cycle: 100 %

• Degree of protection: IP65

Advanced Specifications:

• Ambient temperature: –20 °C … +50 °C

• Media temperature: –20 °C … +50 °C

• Housing material: PA and steel

• Solenoid coil material: Copper, steel and thermoplastic

• Winding material: Copper

• Mounting type: With knurled nut

• Mounting position: Any

• Permissible voltage fluctuation: ±10 %

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

• Conforms to standards: IEC 61010‑1

• Product weight: approx. 0.056 kg (56.5 g)

• Width: 22 mm

• Country of origin: CN (China)

• RoHS compliant

• Certifications: c UL us – Recognized (OL) and DNVGL Maritime classification

System Integration:

• Part of the Festo VACF series of solenoid coils (accessories for valves)

• The coil belongs to the family of VSNC and VUVS solenoid valve systems and snaps onto an 8.0 mm armature tube

• The Form B electrical connection (plug pattern type B, 11 mm) is compatible with industrial socket connectors of the MSSD‑F / K / C type (e.g. Festo MSSD‑F 34431, PG9 cable gland, IP65)

• For detailed installation, wiring and valve compatibility, refer to the product hardware manual

Standards & Compliance:
Conforms to IEC 61010‑1, c UL us Recognized, DNVGL Maritime approved. For detailed certification and compliance information, refer to manufacturer official documentation.

Related Products:

• VACF‑B‑B2‑1A (8030804) – same mechanical design with 24 V AC (50/60 Hz, 3.9 VA/2.6 VA)

• VACF‑B‑B2‑7 (8030803) – 48 V DC version

• Mating plug socket: MSSD‑F (34431) – 3‑pin angled plug socket, IP65, PG9, for Form B connector pattern
