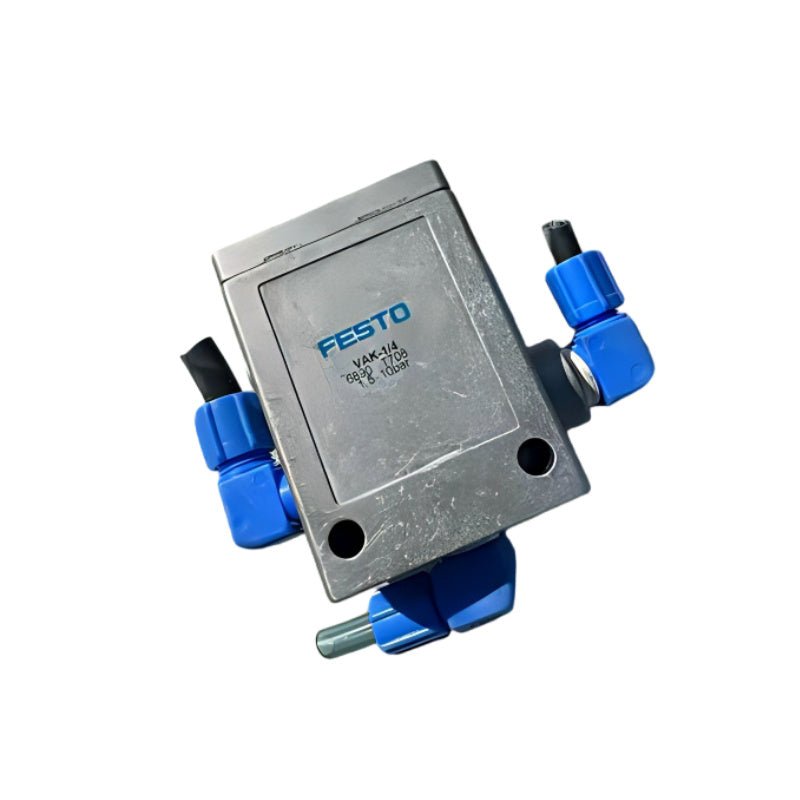

Festo VAK-1/4 6890 Vacuum Generator G1/4 80% Vacuum

Festo VAK-1/4 is a pneumatic vacuum generator based on the Venturi principle. It generates vacuum using compressed air and is designed for material handling, pick-and-place, and workpiece transportation applications. The T-shaped die-cast aluminium housing provides robust mechanical strength. With a 1 mm de Laval nozzle, the ejector achieves an 80 % vacuum capacity. An integrated pneumatic ejector pulse releases workpieces safely and reliably after transport. The unit operates with compressed air to ISO 8573‑1:2010 [7:4:4] within a pressure range of 1.5 bar to 10 bar. Through‑hole mounting supports flexible installation. The design is free of copper and PTFE, and operation with oil lubrication is possible. A wide temperature range of –20 °C to +80 °C ensures suitability for many industrial environments.

Applications:

• Pick‑and‑place workpieces in assembly automation

• Conveyor system workpiece hold‑down

• Moving and holding materials in packaging lines

• Handling sensitive components requiring controlled release

Core Specifications:

• Nominal Laval nozzle width: 1 mm

• Max. vacuum: 80 %

• Operating pressure range: 1.5 bar … 10 bar

• Max. suction flow: 19.5 L/min (at 6 bar supply pressure)

• Vacuum connection: G1/4 female thread

• Medium: Compressed air to ISO 8573‑1:2010 [7:4:4]; oil‑lubricated operation possible (if applied, continued lubrication required)

• Ambient / media temperature: –20 °C … +80 °C

• Housing material: Die‑cast aluminium

• Design: T‑shape, through‑hole mounting

Advanced Specifications:

• Ejector characteristic: High vacuum

• Integrated function: Ejector pulse, pneumatic

• Symbol: 00991484

• Weight: 260 g

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• Free of copper and PTFE conforming to supplier`s product standards

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

System Integration:

• Belongs to the Festo VAK vacuum generator series.

• Suitable for mounting on Festo vacuum suction cups (VAS and VASB series).

• Built‑in ejector pulse provides gentle workpiece release without additional valving.

• Through‑hole mounting permits direct installation on machine frames or brackets.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• VAD‑1/4 (9394) – Vacuum generator, 1 mm nozzle, 80 %, G1/4

• VAS‑30‑1/8‑NBR – 30 mm suction cup for vacuum pick‑up

• VASB‑30‑1/8‑SI‑B – 30 mm bellows suction cup for uneven surfaces
