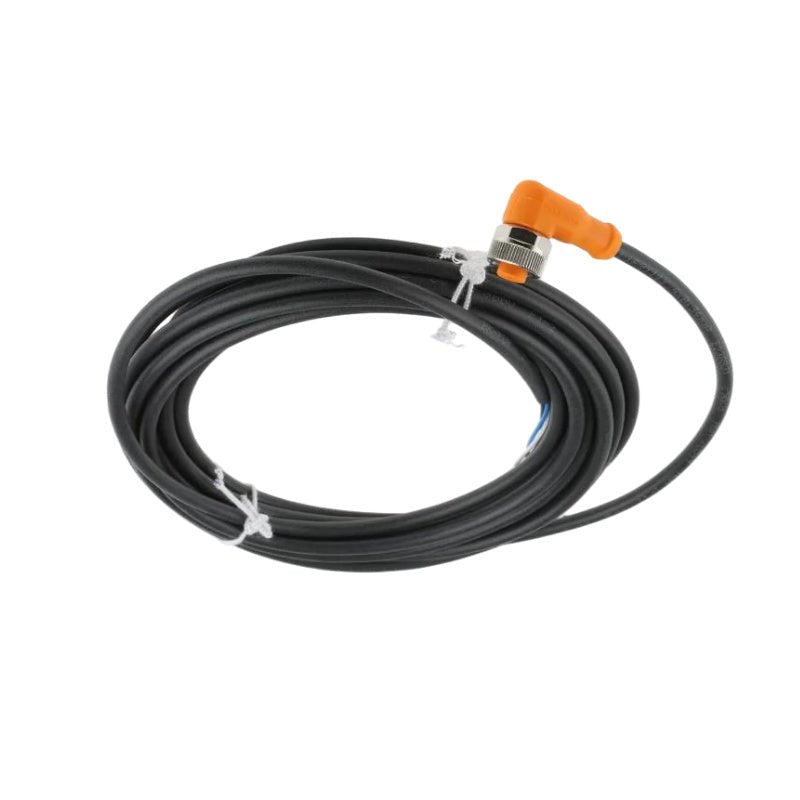

IFM EVC005 M12 Female Cordset 4-Pin 5m PUR Cable IP68 IP69K 24V

Overview
The IFM EVC005 (ADOAH040MSS0005H04) is a high‑quality M12 female cordset designed for reliable signal and power transmission in demanding industrial automation environments. Featuring a 4‑pin M12 straight female connector with a 5‑meter PUR (polyurethane) cable, this cordset provides a ready‑to‑use, pre‑wired connection solution for sensors, actuators, and field devices. The coupling ring with a locking mechanism ensures vibration and shock‑resistant connection, while the mechanical end stop protects the O‑ring from destruction during tightening. The PUR cable is resistant to oils and coolants, making it ideal for machine tools, hydraulic systems, and industrial washdown areas. Rated IP65, IP67, IP68, and IP69K, the EVC005 withstands dust, temporary immersion, and high‑pressure, high‑temperature washdowns, ensuring permanent, reliable sealing even when mounted without tools.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Resistant to oils and coolants – PUR cable jacket provides exceptional resistance to oils, coolants, and industrial lubricants, making the cordset suitable for machine tools, hydraulic systems, and metalworking applications.

• Permanent, reliable sealing even when mounted without tools – The O‑ring sealing system ensures reliable IP protection without requiring excessive tightening torque, simplifying installation and reducing the risk of damage.

• High protection rating for harsh industrial environments – Rated IP65, IP67, IP68, and IP69K, providing dust‑tight protection, resistance to temporary immersion, and high‑pressure, high‑temperature washdown resistance for food processing and outdoor installations.

• Vibration and shock resistant thanks to coupling ring with locking mechanism – The coupling ring features a positive locking mechanism that prevents loosening under vibration and shock, ensuring continuous signal integrity in high‑vibration environments such as conveyors and mobile equipment.

• Mechanical end stop to protect the O‑ring from destruction – Integrated mechanical end stop prevents over‑tightening, protecting the O‑ring from crushing and ensuring long‑term sealing performance.

• 4‑pin M12 straight female connector with gold‑plated contacts – A‑coded M12 connector with gold‑plated contacts provides corrosion resistance, low contact resistance, and reliable signal transmission for sensor‑actuator connections.

• 5‑meter PUR cable with flexible stranded wires – 5 m (5000 mm) PUR cable, oil and coolant resistant, with 4 x 0.34 mm² (AWG 22) stranded copper wires, suitable for drag chain applications and flexible routing.

• Wide operating temperature range – Cable temperature range -25…90°C (fixed installation) / -25…90°C (flexible), connector temperature range -25…90°C, accommodating extreme thermal conditions.

• Halogen‑free and RoHS compliant – PUR cable is halogen‑free, reducing toxic smoke emission in case of fire, and fully RoHS compliant for environmental sustainability.

Technical Specifications

Applications

• Connecting M12 sensors (proximity, photoelectric, pressure, flow) to PLC I/O modules or fieldbus junction boxes.

• Actuator and solenoid valve connections in machine tools, packaging machinery, and material handling systems.

• High‑vibration environments such as conveyors, mobile equipment, and robotic cells.

• Food and beverage industry requiring IP69K washdown resistance and oil/coolant resistance.

• Outdoor and wet area installations requiring IP68 continuous immersion protection.

• Hydraulic and lubrication systems exposed to oils and coolants.

Package Includes

• 1 × IFM EVC005 female cordset with 5m PUR cable
