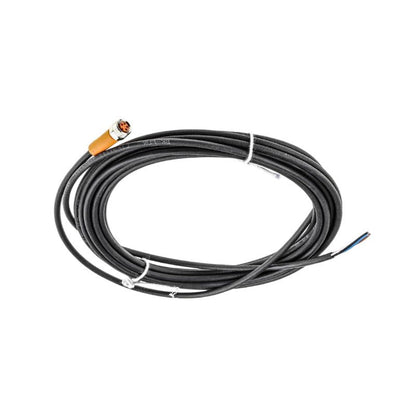

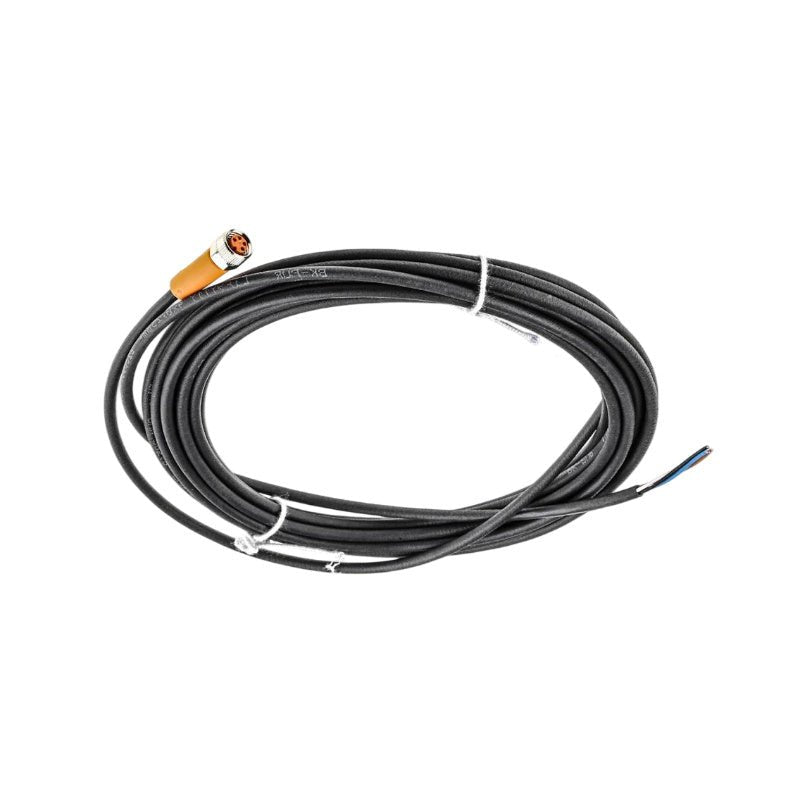

IFM EVC151 M8 Female Cordset 5m PUR IP69K Oil Resistant

Overview
The IFM EVC151 (ADOGF040MSS0005H04) is a high‑quality M8 female cordset specifically designed for sensor and actuator connections in demanding industrial automation environments . Featuring a 4‑pin M8 straight female connector with a 5‑meter PUR (polyurethane) cable, this cordset provides a durable, ready‑to‑use connection solution for factory automation and machine tool applications . The PUR cable jacket offers exceptional resistance to oils and coolants, while the nickel‑plated brass coupling nut with a positive locking mechanism ensures vibration and shock resistance . Rated IP65, IP67, IP68, and IP69K, the EVC151 withstands dust, temporary immersion, and high‑pressure, high‑temperature washdowns . The connector features gold‑plated contacts, a mechanical end stop to protect the O‑ring from over‑tightening, and is silicone‑free and halogen‑free . With drag chain suitability (>5 million bending cycles), wide operating temperature range (-25…90°C), and a net weight of 117.3 g, this cordset delivers reliable performance in food processing, machine tools, and outdoor installations .

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Resistant to oils and coolants – PUR cable jacket provides exceptional resistance to oils, coolants, and industrial lubricants, making the cordset suitable for machine tools, hydraulic systems, and metalworking applications .

• Permanent, reliable sealing even when mounted without tools – Advanced O‑ring sealing system ensures reliable IP protection without excessive tightening torque, simplifying installation and reducing the risk of damage .

• High protection rating for harsh industrial environments – Rated IP65, IP67, IP68, and IP69K, providing dust‑tight protection, resistance to temporary immersion, and high‑pressure, high‑temperature washdown resistance for food processing and outdoor installations .

• Vibration and shock resistant thanks to coupling ring with locking mechanism – Nickel‑plated brass coupling nut features a positive locking mechanism that prevents loosening under vibration and shock, ensuring continuous signal integrity .

• Mechanical end stop to protect the O‑ring from destruction – Integrated mechanical end stop prevents over‑tightening, protecting the O‑ring from crushing and ensuring long‑term sealing performance .

• Drag chain suitable with >5 million bending cycles – Designed for flexible applications with a minimum bending radius of 10× cable diameter, max. travel speed of 3.3 m/s, and max. acceleration of 5 m/s², ensuring durability in moving applications .

• Gold‑plated contacts for reliable electrical connections – 4 gold‑plated A‑coded contacts provide superior corrosion resistance, low contact resistance, and long‑term signal integrity .

• Silicone‑free and halogen‑free construction – Silicone‑free and halogen‑free materials reduce toxic smoke emission in case of fire, meeting stringent safety and environmental standards .

Technical Specifications

Applications

• Machine tools and metalworking: Connecting M8 sensors (inductive, capacitive, photoelectric) exposed to oils and coolants in CNC machines, lathes, and milling equipment .

• Food and beverage industry: Hygienic and wet area installations requiring IP69K washdown resistance, silicone‑free materials, and high‑pressure cleaning resistance .

• Factory automation: Connecting miniaturized sensors and actuators in packaging machinery, assembly lines, and material handling systems .

• Drag chain applications: Moving cable tracks requiring high flexibility and long bending cycles (>5 million) in robotic cells and automated guided vehicles (AGVs) .

• Outdoor and wet area installations: Applications requiring IP68 continuous immersion protection and wide temperature range .

• Automotive industry: Sensor connections in assembly lines, paint shops, and test stands requiring oil and coolant resistance .

Package Includes

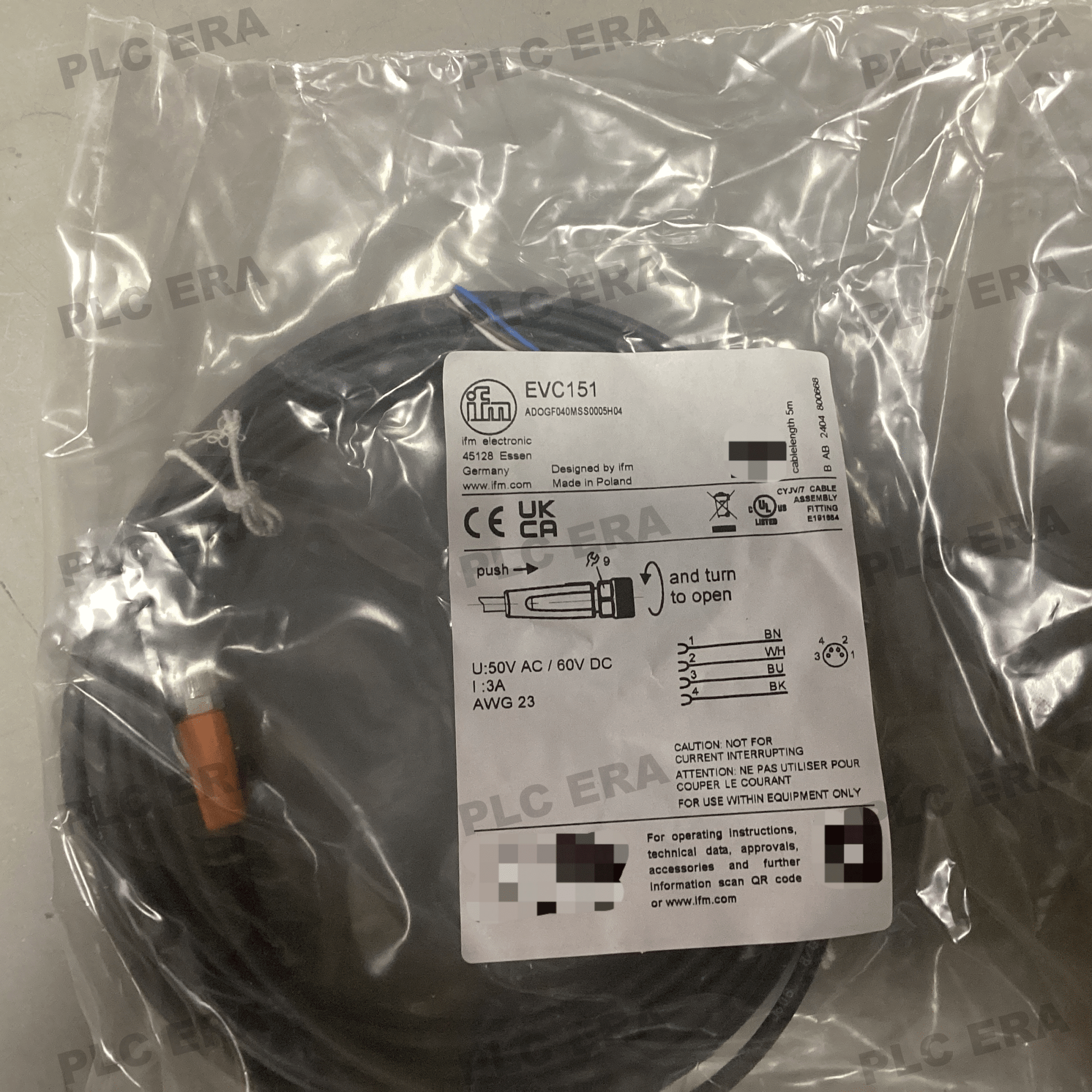

• 1 × IFM EVC151 M8 female cordset with 5m PUR cable (ADOGF040MSS0005H04)
