IFM EVC810 M12 Female Field Wireable Connector 4-Pin Screw IP69K

Overview

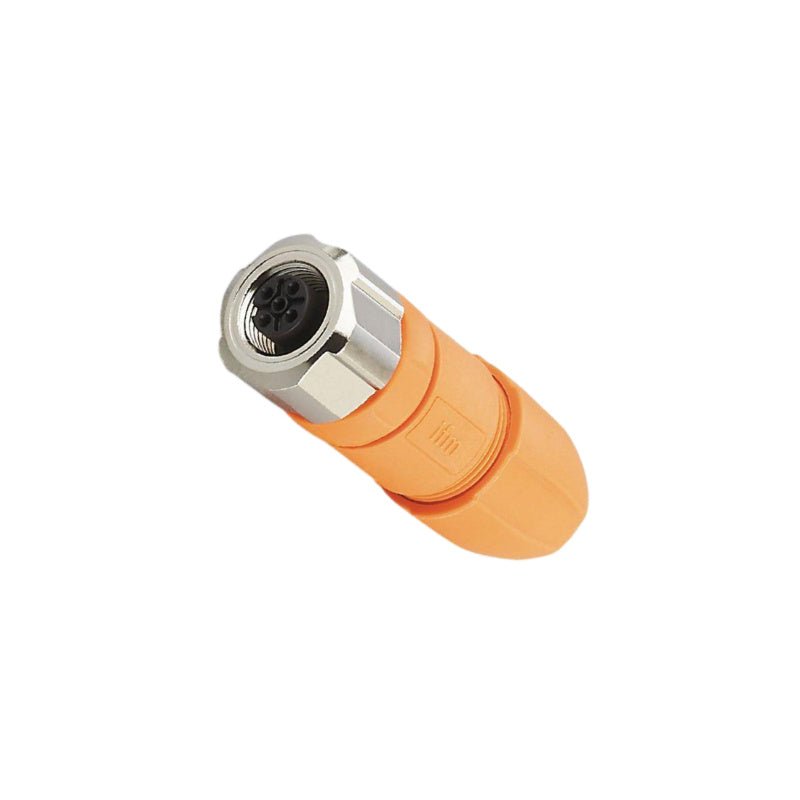

The IFM EVC810 (SDOGH040MSSFKPG) is a high-quality M12 female field‑wireable connector designed for on‑site assembly in demanding industrial automation environments. Featuring a straight design with 4 gold‑plated contacts and a patented three‑way ball clamp strain relief, this connector ensures secure and reliable electrical connections. The screw terminal wiring enables simple and fast field assembly without special tools, while the nickel‑plated brass coupling nut with a mechanical end stop provides secure mating and protects the O‑ring from over‑tightening. Rated IP65, IP67, IP68, and IP69K, the EVC810 withstands dust, temporary immersion, and high‑pressure, high‑temperature washdowns, making it ideal for food processing, machine tools, and outdoor installations. The robust PA 6.6 orange housing delivers vibration and shock resistance, ensuring long‑term performance in harsh industrial environments.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Gold‑plated contacts for reliable electrical connections – 4 gold‑plated contacts provide superior corrosion resistance, low contact resistance, and long‑term signal integrity, ensuring reliable electrical connections in harsh industrial environments.

• High protection rating for harsh industrial environments – Rated IP65, IP67, IP68, and IP69K, offering dust‑tight protection, resistance to temporary immersion, and high‑pressure, high‑temperature washdown resistance, enabling use in hygienic and wet areas.

• Patented three‑way ball clamp technology provides excellent strain relief – Patented three‑way ball clamp securely grips the cable jacket, preventing pull‑out and torsional stress, ensuring reliable strain relief even under vibration and mechanical load.

• Simple and fast wiring by means of screw terminals – Screw terminals accept 0.25…1 mm² (AWG 23…17) wire and cable sheath diameters of 3.5…6 mm, enabling quick, tool‑friendly field assembly without special crimping equipment.

• Straight M12 design for easy installation – Straight M12 A‑coded connector geometry allows simple, straightforward installation in control cabinets and field devices.

• Nickel‑plated brass coupling nut with mechanical end stop – Nickel‑plated brass (1.4404/316L) coupling nut with positive locking mechanism prevents loosening under vibration, while the mechanical end stop protects the O‑ring from over‑tightening.

• Wide operating temperature range – Operates reliably from -25°C to +90°C, accommodating extreme thermal conditions in industrial automation.

• High reliability with global certifications – CE certified, RoHS compliant, halogen‑free, and silicone‑free, meeting stringent environmental and safety standards for global deployment.

Technical Specifications

Applications

• Field assembly of M12 sensor and actuator cables in industrial automation.

• Food and beverage industry requiring IP69K washdown resistance and silicone‑free materials.

• Machine tools, hydraulic systems, and metalworking applications with vibration exposure.

• Outdoor and wet area installations requiring IP68 continuous immersion protection.

• Control cabinet wiring in space‑constrained environments.

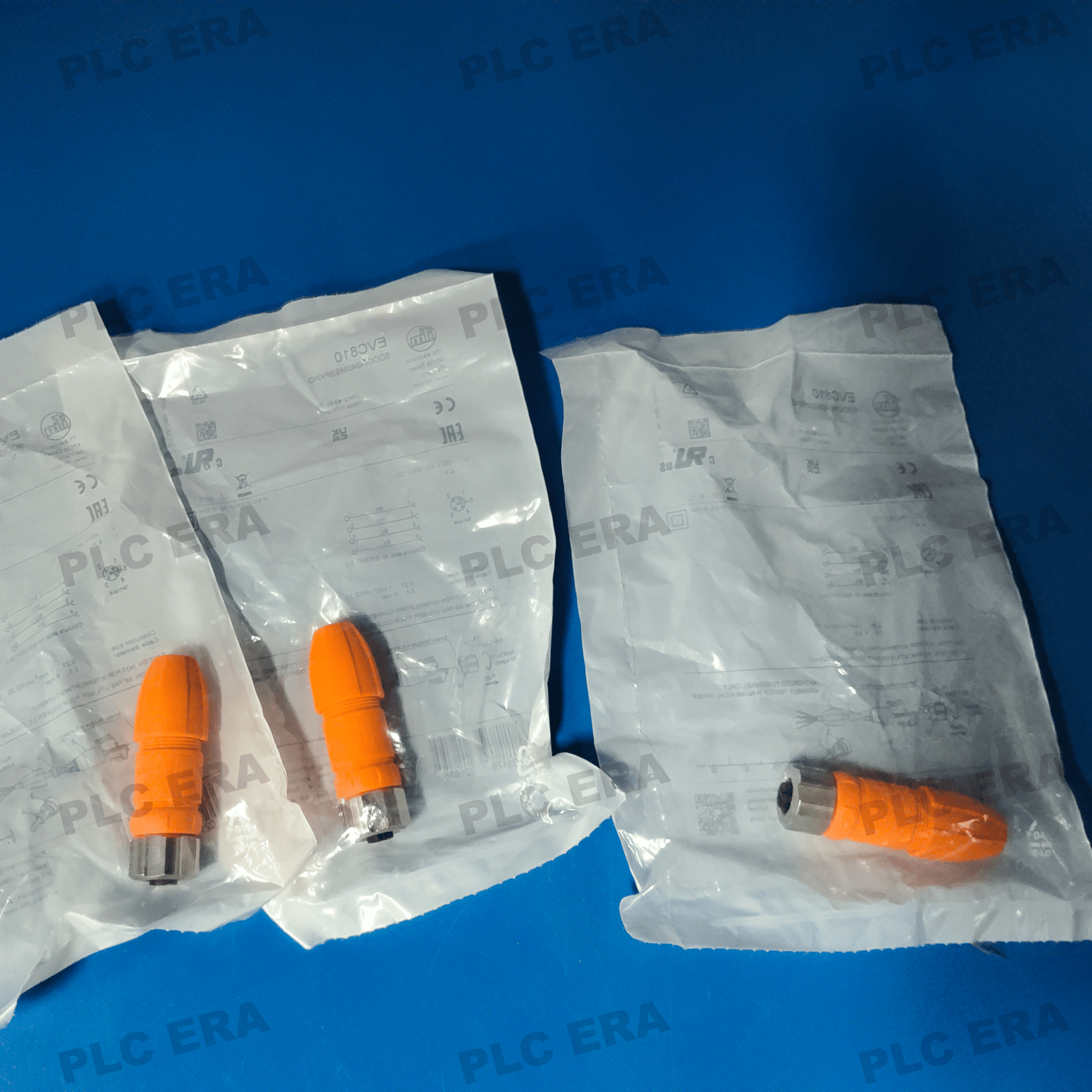

Package Includes

• 1 × IFM EVC810 female wirable M12 connector (SDOGH040MSSFKPG)

• Nickel‑plated brass coupling nut (pre‑installed)

• FKM sealing ring (pre‑installed)

• Screw terminals (pre‑installed)

• Instruction manual

⚠️ Cable not included. Suitable for cable sheath diameters 3.5…6 mm, wire cross‑section 0.25…1 mm² (AWG 23…17).
