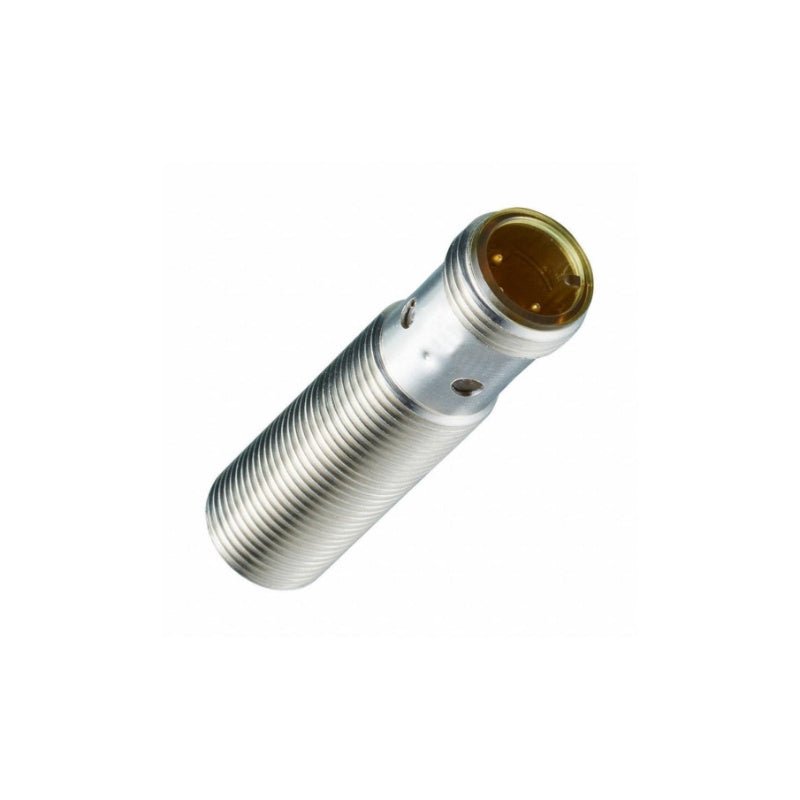

IFM IFT203 Inductive Sensor IFB3004BBPKG/V4A/US-104 4mm PNP IP69K
IFM IFT203 Inductive Sensor IFB3004BBPKG/V4A/US-104 4mm PNP IP69K
74 en existencias
No se pudo cargar la disponibilidad de retiro
Overview
The IFM IFT203 (IFB3004BBPKG/V4A/US‑104) is a high‑performance inductive proximity sensor designed for demanding industrial automation applications, particularly in the food and beverage industry. Featuring a flush‑mountable M12 stainless steel housing with a PEEK sensing face, this sensor provides reliable non‑contact detection of metal objects up to 4mm. The robust construction includes IP68 and IP69K protection ratings, making it resistant to high‑pressure cleaning with aggressive cleaning agents – a critical requirement for hygienic environments. With a wide operating temperature range of 0°C to 100°C and excellent temperature shock resistance, the IFT203 maintains consistent performance even under frequent thermal fluctuations. The gold‑plated M12 connector contacts ensure corrosion‑free signal transmission, while the 4 LED indicators provide clear visual confirmation of switching status.
Key Features
-
Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.
-
100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.
-
Robust stainless steel housing for food industry – Constructed from stainless steel (316L/1.4404) with a PEEK sensing face, certified for use in the food and beverage industry and resistant to aggressive cleaning agents.
-
IP68 and IP69K protection ratings – Withstands dust, continuous immersion, and high‑pressure, high‑temperature washdowns, ensuring reliable operation in harsh industrial environments including CIP/SIP cleaning cycles.
-
Wide operating temperature range – Operates reliably from 0°C to 100°C, suitable for extreme temperature applications such as hot food processing lines and cold storage.
-
Temperature shock resistant – Maintains consistent performance even with frequent temperature fluctuations, eliminating false triggers and ensuring process stability.
-
Gold‑plated M12 connector contacts – Gold‑plated contacts provide superior corrosion resistance and signal integrity, ensuring long‑term reliability in washdown environments.
-
Increased sensing range (4mm, flush mountable) – Flush mountable design with an increased sensing range of 4mm (real Sr = 4mm ±10%, operating distance 0…3.24mm) enables detection through non‑metal walls for hidden installation.
-
PNP normally open output with comprehensive protection – DC PNP, normally open output with 100mA continuous current rating, 800Hz switching frequency, and built‑in short‑circuit, overload, and reverse polarity protection.
-
High reliability with MTTF of 1134 years – Exceptional mean time to failure ensures long‑term dependable operation, minimizing unplanned downtime and maintenance costs.
-
Correction factor of 1 for steel – Provides a constant sensing distance for all metals (steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3), simplifying setup when detecting different metal types.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | IFM Electronic |
| Type / Part No. | IFT203 / IFB3004BBPKG/V4A/US‑104 |
| Product type | Inductive proximity sensor |
| Electrical design | DC PNP |
| Output function | Normally open (NO) |
| Sensing range | 4 mm (flush mountable) |
| Real sensing range (Sr) | 4 mm ±10% |
| Operating distance | 0…3.24 mm |
| Switching frequency | 800 Hz |
| Hysteresis | 1…20% of Sr |
| Switch point drift | –10…+10% of Sr |
| Correction factors | Steel: 1 / Stainless steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3 |
| Operating voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Max. voltage drop (output) | 2.5 V |
| Continuous current rating | 100 mA |
| Short‑circuit protection | Yes (pulsed type) |
| Overload protection | Yes |
| Reverse polarity protection | Yes |
| Protection class | II |
| Enclosure rating | IP68; IP69K (including “COP” – Clean Oil Protection) |
| Housing material | Stainless steel (316L/1.4404) |
| Sensing face material | PEEK natural |
| LED window material | PEI |
| Lock nuts material | Stainless steel (316L/1.4404) |
| Tightening torque | 15 Nm |
| Dimensions | M12 × 1 / L = 45 mm (threaded type) |
| Ambient temperature | 0…100 °C |
| Storage temperature | –25…80 °C |
| EMC compliance | EN 61000-4-2 ESD (4 kV CD / 8 kV AD), EN 61000-4-3 (10 V/m), EN 61000-4-4 (2 kV Burst), EN 61000-4-6 (10 V HF conducted), EN 55011 Class B |
| MTTF | 1134 years |
| UL approval | UL File No. E174191, Enclosure Type 1 |
| Certifications | CE, cULus, EAC, KC |
| RoHS compliant | Yes |
| Country of origin | Romania (RO) |
Applications
-
Food and beverage industry: Position detection in filling machines, conveyor systems, and packaging equipment requiring frequent washdowns with aggressive cleaning agents.
-
High‑temperature environments: Reliable operation in hot food processing lines, ovens, and industrial drying systems (0‑100°C).
-
Hygienic and sanitary areas: Detection of metal objects in cleanrooms, pharmaceutical manufacturing, and cosmetic production where corrosion resistance is critical.
-
Machine tools and metalworking: Presence sensing on CNC machines, stamping presses, and assembly lines requiring high switching frequency (800Hz).
-
Hidden installation: Increased sensing range allows installation behind non‑metal walls (e.g., PTFE or ceramic), protecting the sensor from mechanical damage.
-
Automotive industry: Parts presence detection on automated assembly lines and conveyor systems.
-
Mobile equipment and outdoor applications: Rugged IP68/IP69K housing withstands dust, rain, and pressure washing.

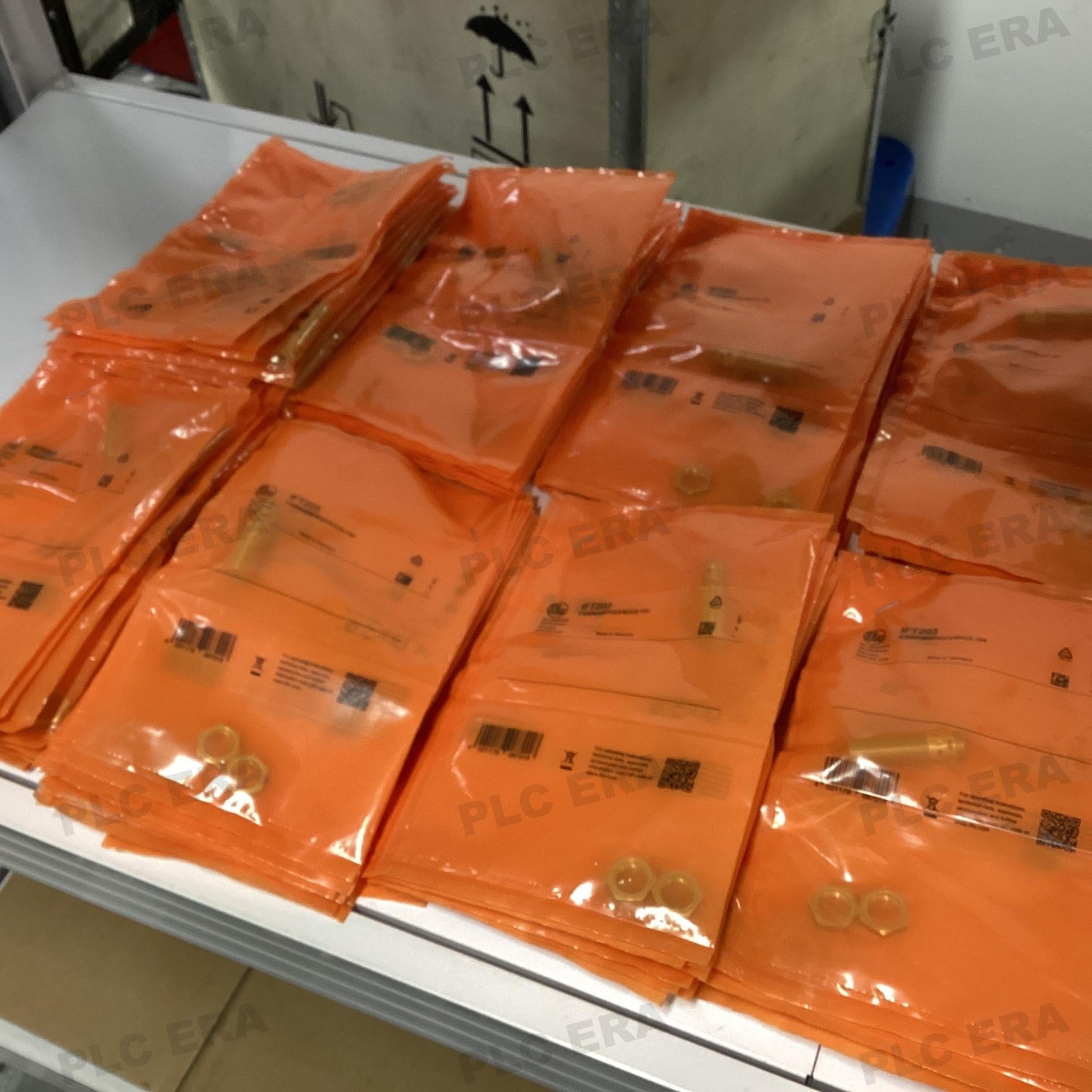

Package Includes
-
1 × IFM IFT203 inductive sensor (IFB3004BBPKG/V4A/US‑104)
-
2 × lock nuts (stainless steel 316L/1.4404)
-
Instruction manual
