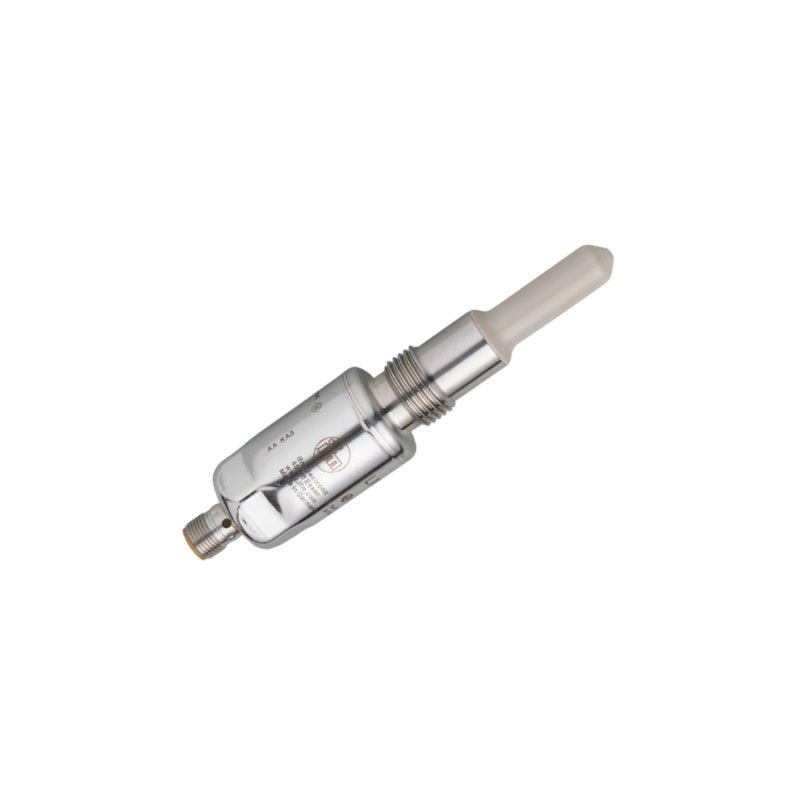

IFM LMT102 Point Level Sensor LMCCE-A12E-QSKG-2/US PNP/NPN 38mm Probe

Overview
The IFM LMT102 (LMCCE-A12E-QSKG-2/US) is a high‑performance point level sensor based on capacitive measurement technology, designed for reliable level control in tanks and containers across demanding industrial applications, particularly in the food and beverage industry. This hygienic, maintenance‑free sensor detects the presence or absence of media across a wide spectrum — from liquids and viscous media to bulk solids and powders. With two programmable switching outputs (PNP/NPN, NO/NC) offering flexible integration, and advanced signal processing for reliable suppression of deposits or foam, the LMT102 delivers accurate detection even in challenging media conditions. The robust stainless steel (316L) body and PEEK wetted parts are electropolished to Ra < 0.8 / Rz 4, meeting strict sanitation requirements. Rated IP68 and IP69K, it withstands continuous immersion and high‑pressure, high‑temperature washdowns, making it ideal for hygienic and harsh industrial environments. Integrated IO‑Link V1.1 communication (COM2, 38.4 kBaud) enables remote parameterisation, process data readout, and extended diagnostics.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Hygienic design for food and beverage industry – Stainless steel (1.4404/316L) housing and PEEK wetted parts with electropolished surface finish (Ra < 0.8 / Rz 4), meeting EHEDG and FDA compliance requirements for sanitary applications.

• Multi‑media compatibility – Detects liquids (including water‑based and oil‑based), viscous media, bulk solids, and powders, with factory preset to hydrous media and the ability to differentiate between media types via parameterisation of the switching outputs.

• Reliable deposit and foam suppression – Advanced capacitive measurement with signal processing algorithms reliably suppresses false readings caused by deposits, buildup, or foam on the probe, ensuring accurate level detection in challenging media conditions.

• Dual programmable switching outputs (PNP/NPN) – Two digital outputs (PNP/NPN, configurable as NO or NC) with a switching capacity of 100 mA per output, short‑circuit (pulsed) and overload protected.

• IO‑Link V1.1 communication – Integrated IO‑Link interface (COM2, 38.4 kBaud) enables remote parameterisation, process data readout (1 analogue + 2 binary), and extended diagnostics, with a minimum process cycle time of 2.3 ms, supporting SIO mode and Smart Sensor Profile.

• Extreme environmental protection (IP68/IP69K) – IP68 rating for continuous immersion, plus IP69K rating for resistance to high‑pressure, high‑temperature washdowns, making it ideal for food processing, CIP/SIP cleaning cycles, and outdoor installations.

• Wide temperature and pressure range – Operates with media temperatures from -20°C to 100°C (up to 150°C for 1 hour), ambient temperatures from -20°C to 85°C, and tank pressures up to 40 bar (MAWP for CRN applications), suitable for demanding process applications including CIP/SIP cycles.

• Robust 38 mm probe with gold‑plated contacts – 38 mm probe length (Ø 30 mm housing) with gold‑plated M12 connector contacts ensures corrosion‑free signal transmission for long‑term reliability.

• High reliability with MTTF of 223 years – Exceptional mean time to failure of 223 years ensures long‑term dependable operation, minimizing unplanned downtime and maintenance costs.

Technical Specifications

Applications

• Food and beverage industry: Level control in mixing tanks, storage vessels, and processing lines; CIP/SIP washdown environments.

• Liquid media monitoring: Overfill protection, dry‑run prevention, and low‑level alarms for water‑based and oil‑based liquids.

• Viscous media: Detection of syrups, pastes, creams, gels, and other thick substances in food, pharmaceutical, and cosmetic manufacturing.

• Bulk solids and powders: Level detection for powders, granules, and fine bulk materials in hoppers, silos, and conveyors.

• Phase separation and interface detection: Differentiation between two media types using programmable switching outputs.

• Pharmaceutical processing: Level monitoring in bioreactors, mixing tanks, and storage containers requiring hygienic design.

• Industrial automation: Level control in coolant tanks, hydraulic reservoirs, and lubrication systems.

Package Includes

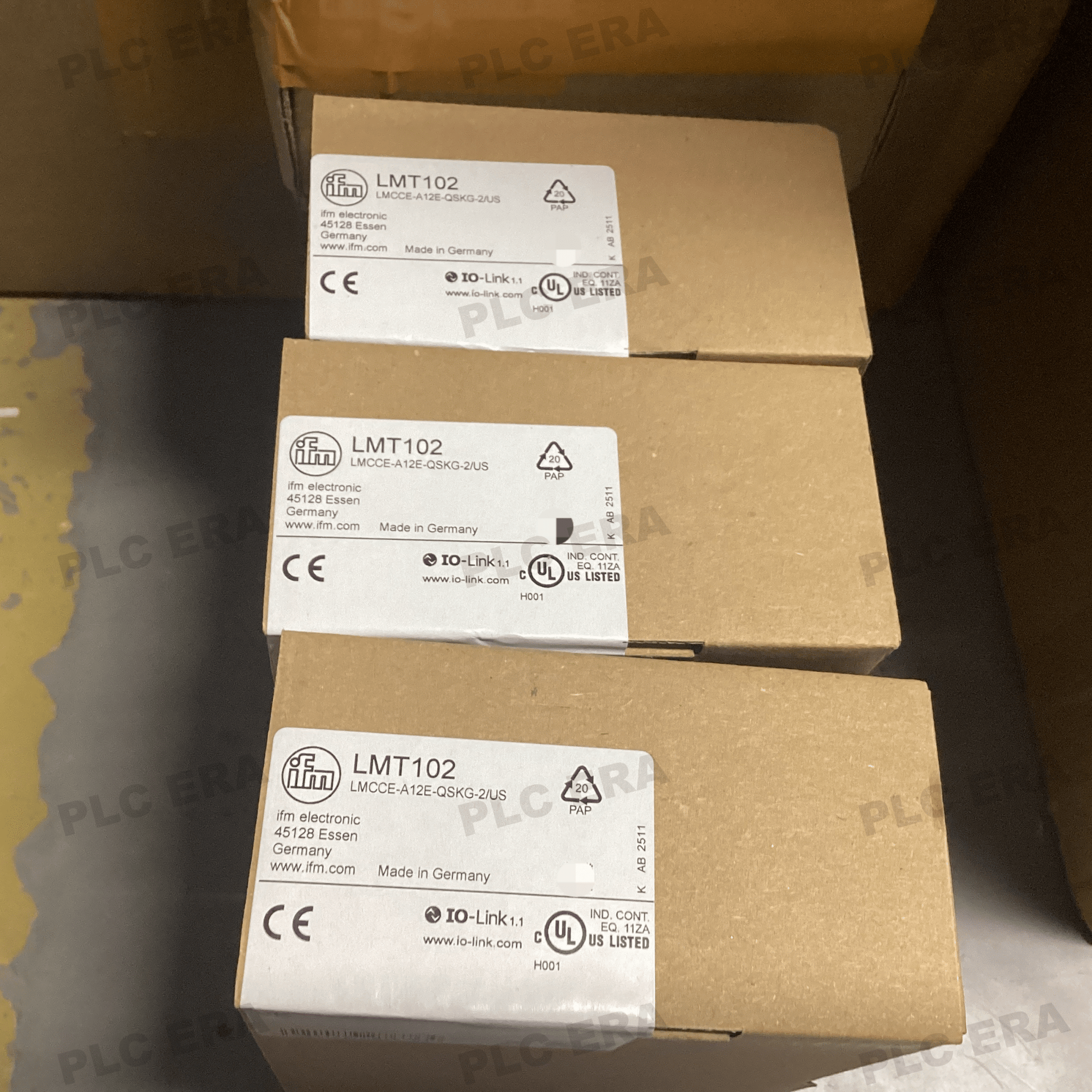

• 1 x IFM LMT102 point level sensor (LMCCE-A12E-QSKG-2/US)

• Gold‑plated M12 connector contacts (pre‑installed)

⚠️ Factory preset to hydrous media (water‑based). For other media (oils, powders, etc.), parameterisation via IO‑Link or teach process is required.
