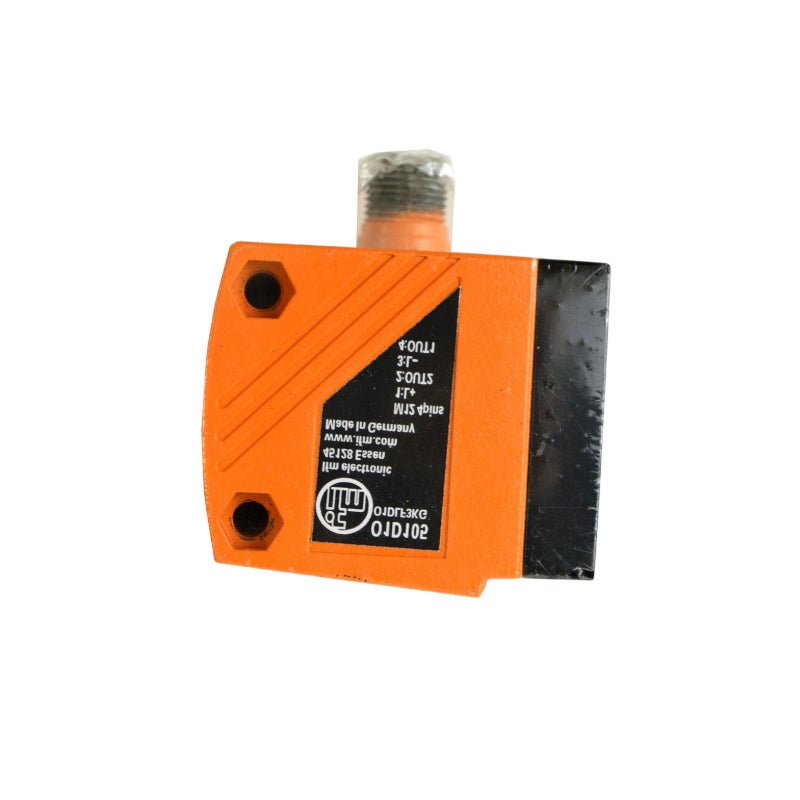

IFM O1D105 Laser Sensor O1DLF3KG/IO-LINK 10m 2xPNP 4-20mA IP67

Overview
The IFM O1D105 (O1DLF3KG/IO-LINK) is a high‑performance laser distance sensor based on Time‑of‑Flight (ToF) measurement technology, offering reliable optical distance measurement up to 10 meters. Featuring a visible red laser (Class 2, 650 nm, ≤ 4.0 mW) for easy alignment, this sensor provides exceptional performance for distance detection, positioning, and monitoring in demanding industrial environments. The device offers 2 PNP switching outputs (200 mA each, programmable NO/NC) with one output configurable as an analog output (4…20 mA or 0…10 V, scalable). The integrated IO‑Link V1.1 interface (COM2, 38.4 kBaud) enables remote parameterisation, process data readout, and diagnostic access, aligning with Industry 4.0 requirements. Housed in a robust die‑cast zinc rectangular housing (59 x 42 x 52 mm) with IP67 protection, the O1D105 operates reliably from -10°C to 60°C. With scalable measuring range and window function, background suppression, and an excellent price/performance ratio, this sensor is suitable for logistics, automated production lines, packaging machinery, and automotive manufacturing.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Time‑of‑Flight (ToF) measurement up to 10 m – Measures distances from 0.2 m to 10 m (white 90% remission) using pulsed laser technology, unaffected by object colour, texture, or surface finish within specified reflectivity limits.

• 2 PNP switching outputs (200 mA) – one programmable as analog output – Two robust PNP outputs (programmable NO/NC) with one output configurable as 4…20 mA (max. load 250 Ω) or 0…10 V (min. load 5000 Ω) analog output, eliminating the need for a separate analog module.

• Scalable measuring range and window function – Adjustable measuring range and programmable window function (hysteresis mode / window mode) enable precise detection within defined distance zones, supporting reliable background suppression.

• IO‑Link V1.1 communication (COM2, 38.4 kBaud) – Integrated IO‑Link interface with Smart Sensor Profile enables remote configuration, real‑time process data readout (2 analog + 2 binary values, 6 ms cycle time), extended diagnostics, and device identification, reducing downtime.

• Background suppression (10…100 m) – Effectively ignores objects beyond the defined detection window (10…100 m background suppression range), preventing false triggers from conveyors, walls, or other static backgrounds.

• Visible red laser (Class 2, 650 nm) with 15 mm light spot – Class 2 visible red laser (650 nm, ≤ 4.0 mW, 1.3 ns pulse) with 15 mm maximum light spot diameter at 10 m simplifies alignment and enables precise targeting of small objects.

• Robust IP67 housing with 4‑digit alphanumeric display – Die‑cast zinc rectangular housing (59 x 42 x 52 mm), IP67 protection for dust‑tight and temporary immersion resistance, plus 4‑digit alphanumeric display for on‑site programming and real‑time distance indication.

• Wide operating voltage and comprehensive protection – 18…30 V DC operating voltage with reverse polarity protection, pulsed short‑circuit protection, overload protection, and 50,000 h typical lifetime, ensuring reliable operation in demanding industrial environments.

• High reliability with 107‑year MTTF – Exceptional mean time to failure ensures long‑term dependable operation, minimising unplanned downtime and maintenance costs.

Technical Specifications

Applications

• Logistics and warehousing – Pallet positioning, rack height detection, AGV obstacle avoidance and navigation.

• Automated production lines – Workpiece thickness/height measurement, robot pick‑and‑place positioning, conveyor material tracking.

• Packaging machinery – Roll diameter monitoring, fill level detection, packaging gap control.

• Automotive manufacturing – Body contour detection, component assembly positioning, welding station monitoring.

• General industrial automation – Distance monitoring, presence detection, positioning tasks in demanding environments.

Package Includes

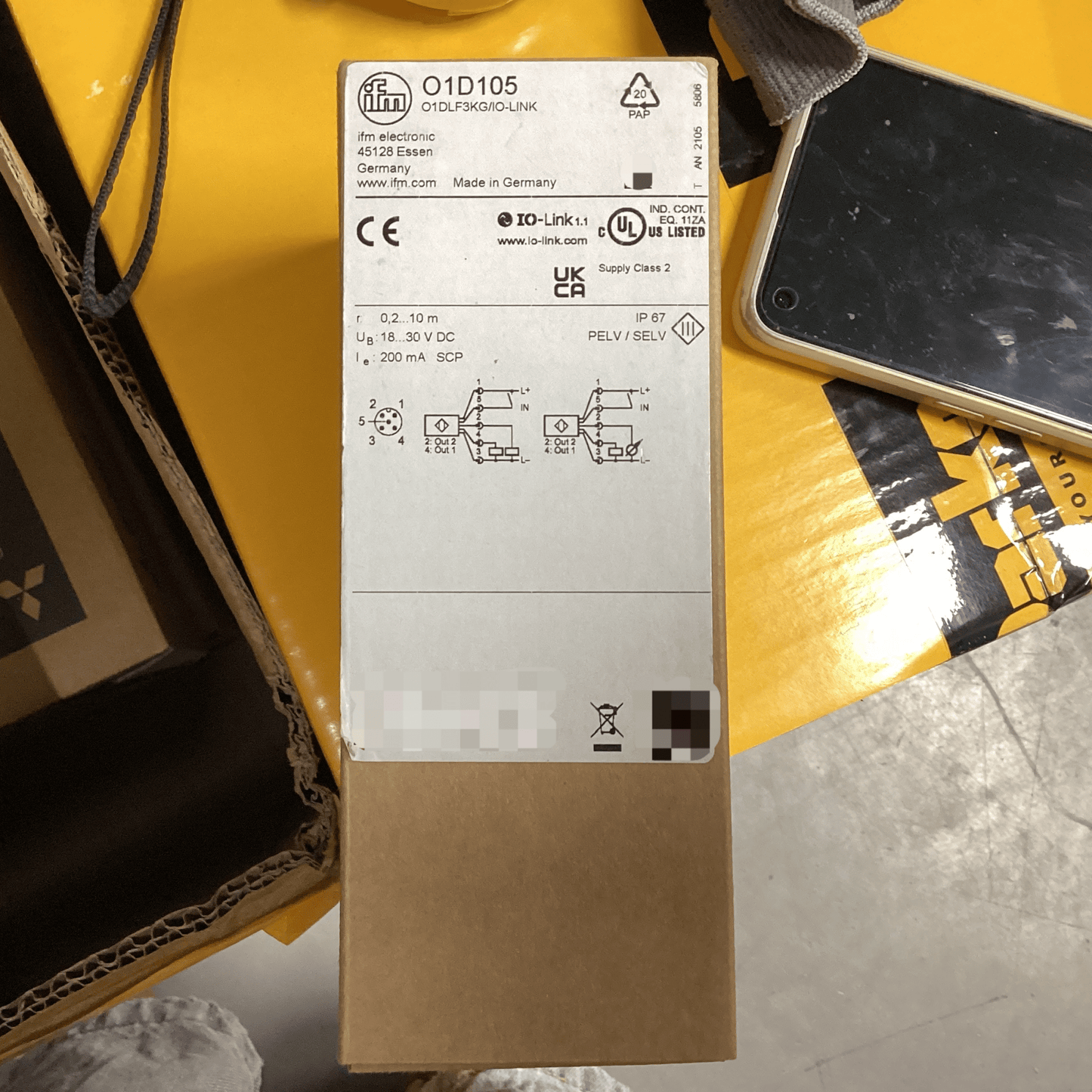

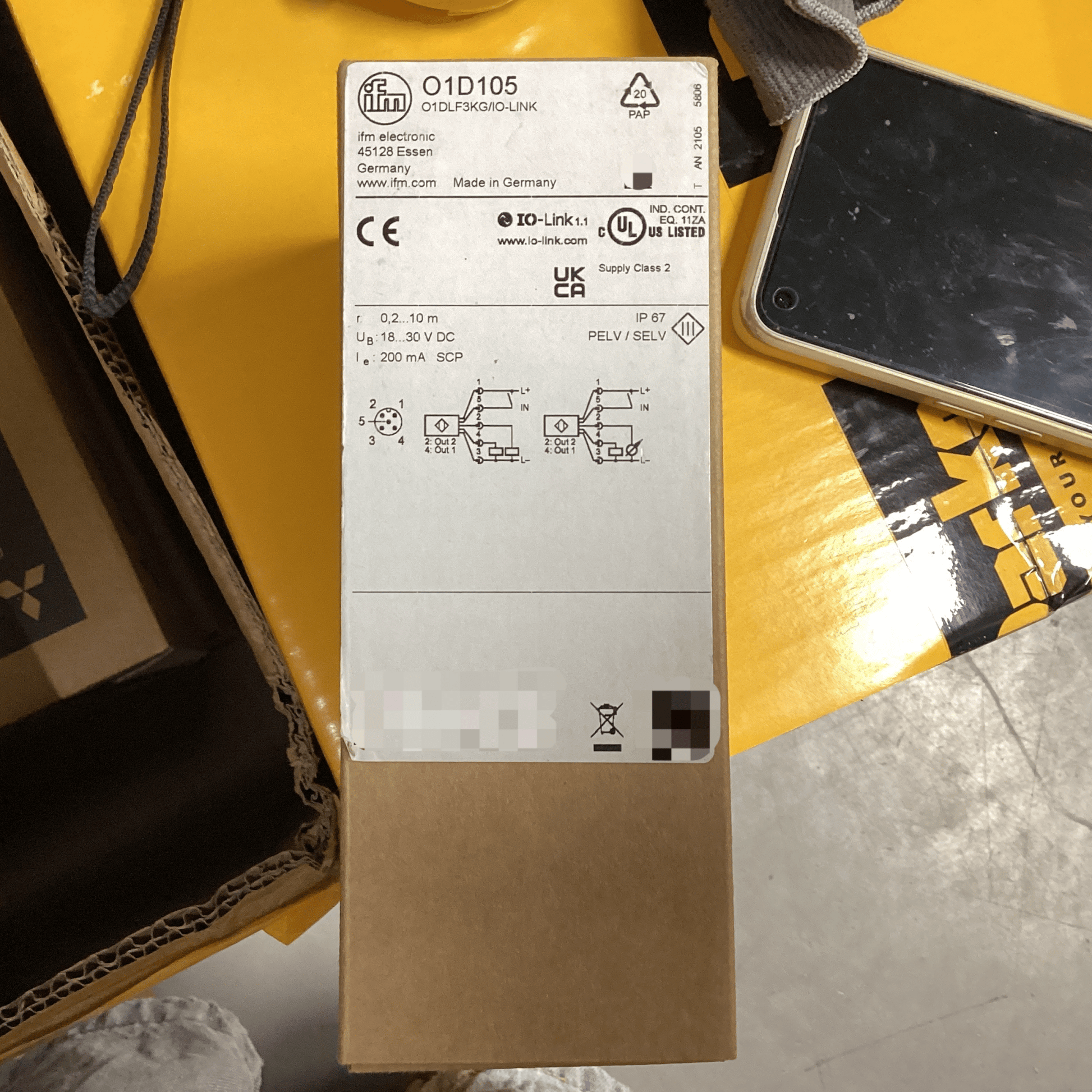

• 1 × IFM O1D105 laser distance sensor (O1DLF3KG/IO‑LINK)

• Instruction manual

• Mounting accessories (as per standard packaging)

⚠️ M12 mating connector sold separately. Accessories such as protective cover (E21133) available.
