IFM PM1504 Flush Pressure Sensor -1-10bar 4-20mA IO-Link IP69K Hygienic

Overview

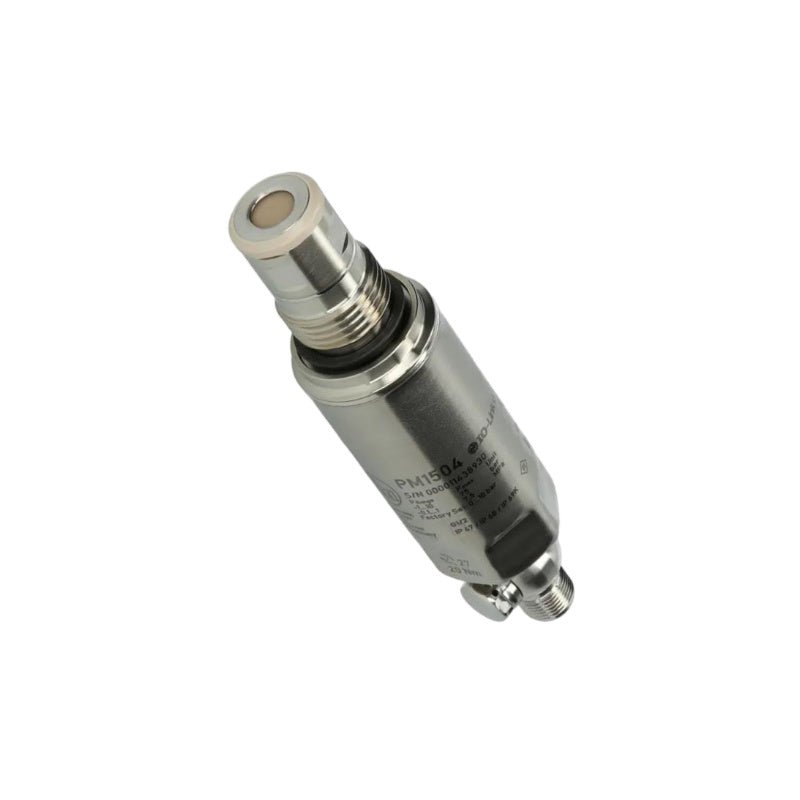

The IFM PM1504 (PM-010-REA12-A-ZVG/US) is a high‑precision flush pressure sensor with an overload‑resistant ceramic‑capacitive measuring cell, designed for hygienic applications in the food and beverage industry. With a measuring range of -1…10 bar (-14.5…145 psi / -0.1…1 MPa), this relative pressure and vacuum sensor provides reliable pressure monitoring in viscous media, liquids with suspended particles, and gases — even in environments exposed to aggressive cleaning agents or extreme temperature fluctuations.

The sensor combines a scalable analogue output (4…20 mA) with integrated IO‑Link V1.1 communication (COM2, 38.4 kBaud) for remote parameterisation, process data readout, and extended diagnostics. Housed in a robust stainless steel (316L) body with gold‑plated contacts and a G 1/2 external thread sealing cone process connection, the PM1504 is flush mountable for the food and beverage industry. Rated IP67, IP68, and IP69K, the sensor withstands high‑pressure washdowns and CIP/SIP cleaning processes. With integrated temperature monitoring via IO‑Link (-25…150 °C), high accuracy (repeatability < ±0.1 %), and a pressure rating of 75 bar (min. bursting pressure 175 bar), the PM1504 delivers long‑term stability and reliability in demanding hygienic applications.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Hygienic flush‑mount design for food and beverage industry – Stainless steel housing with flush ceramic‑capacitive measuring cell, electropolished surface, G 1/2 external thread sealing cone, and EHEDG/FDA compliant design, preventing contamination in sanitary applications.

• Resistant to high‑pressure cleaning with aggressive cleaning agents – Triple‑rated IP67 / IP68 / IP69K protection ensures reliable operation under high‑pressure washdowns and CIP/SIP cleaning cycles, even with aggressive cleaning agents.

• High temperature resistance with integrated temperature monitoring – Medium temperature range from -25…150 °C (up to 125 °C continuous, 150 °C for < 1 h), ambient temperature from -25…80 °C, plus integrated temperature measurement via IO‑Link for simultaneous pressure and temperature monitoring.

• Wide pressure measurement range with vacuum capability – Measures relative pressure from -1…10 bar (-14.5…145 psi / -0.1…1 MPa) with vacuum resistance down to -1000 mbar, suitable for vacuum and pressure applications.

• Scalable 4‑20 mA analogue output with IO‑Link communication – Scalable 4‑20 mA analogue current output (load up to 700 Ω at 24 V) with IO‑Link V1.1 (COM2, 38.4 kBaud) enables remote parameterisation, process data readout, and extended diagnostics.

• High accuracy and long‑term stability – Repeatability < ±0.1 % of span, characteristics deviation < ±0.5 %, linearity deviation < ±0.15 %, hysteresis deviation < ±0.15 %, and long‑term stability < ±0.1 % per year, ensuring consistent performance.

• Robust stainless steel housing with gold‑plated contacts – 316L stainless steel housing, gold‑plated M12 A‑coded connector contacts, IP67/IP68/IP69K protection, pressure rating 75 bar (min. bursting pressure 175 bar), CRN MAWP 43 bar, vacuum resistant to -1000 mbar.

• High overload protection and ceramic measuring cell – Ceramic‑capacitive measuring cell provides high overload protection (pressure rating 75 bar, min. bursting pressure 175 bar) and excellent corrosion resistance, ensuring long‑term measurement accuracy.

• Wide operating voltage with comprehensive protection – 18…30 V DC operating voltage, reverse polarity protection, short‑circuit protection, overload protection, integrated watchdog, and power‑on delay of < 0.5 s, ensuring reliable operation in demanding industrial environments.

Technical Specifications

Applications

• Food and beverage industry: Pressure and vacuum monitoring in pumps, tanks, pipelines, filling machines, and CIP/SIP washdown environments requiring hygienic design and IP69K washdown resistance.

• Dairy processing: Milk pasteurisation, cheese vats, yoghurt fermentation vessels, and cream storage tank pressure monitoring.

• Brewing and beverage: Mash tuns, fermentation tanks, bright beer tanks, carbonation vessels, and syrup tank pressure control.

• Pharmaceutical and biotechnology: Sterile processing equipment, bioreactors, and cleanroom applications requiring FDA/EHEDG compliant sanitary sensors.

• Hygienic processing: Monitoring of viscous media, liquids with suspended particles, and solids where flush‑mount design prevents clogging.

• Vacuum applications: Vacuum packaging, vacuum conveying, and vacuum drying systems requiring -1…10 bar vacuum/pressure measurement.

• Industrial automation: Pressure monitoring in hydraulic systems, cooling circuits, lubrication systems, and compressed air networks.

Package Includes

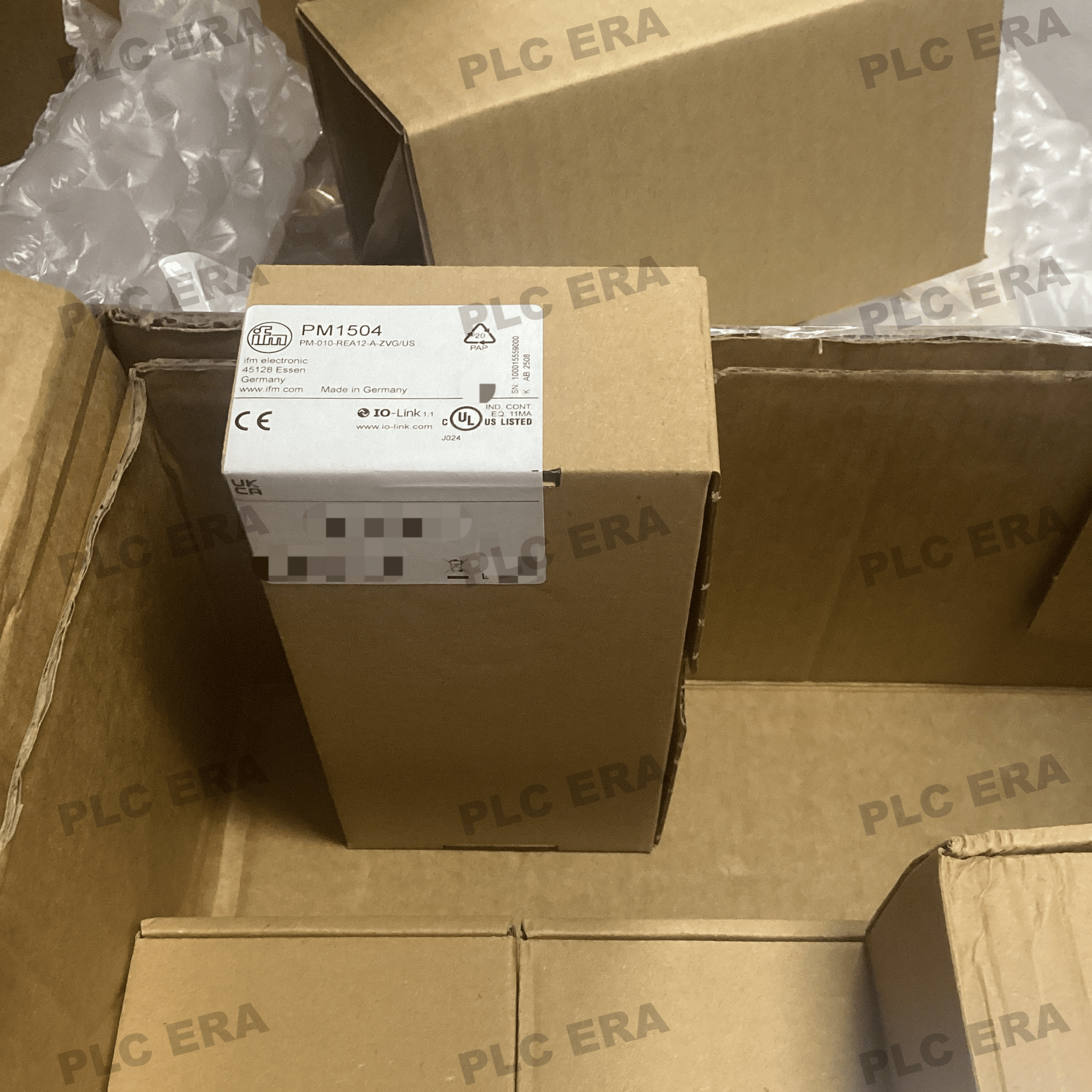

• 1 × IFM PM1504 flush pressure sensor (PM-010-REA12-A-ZVG/US)

• Gold‑plated M12 connector contacts (pre‑installed)

• Instruction manual (available at www.ifm.com)

⚠️ For gas applications > 25 bar, contact manufacturer for suitability. M12 mating connector and process adapters sold separately. IFM offers a full range of hygienic adapters (weld‑in, clamp, thread) for various mounting configurations.
