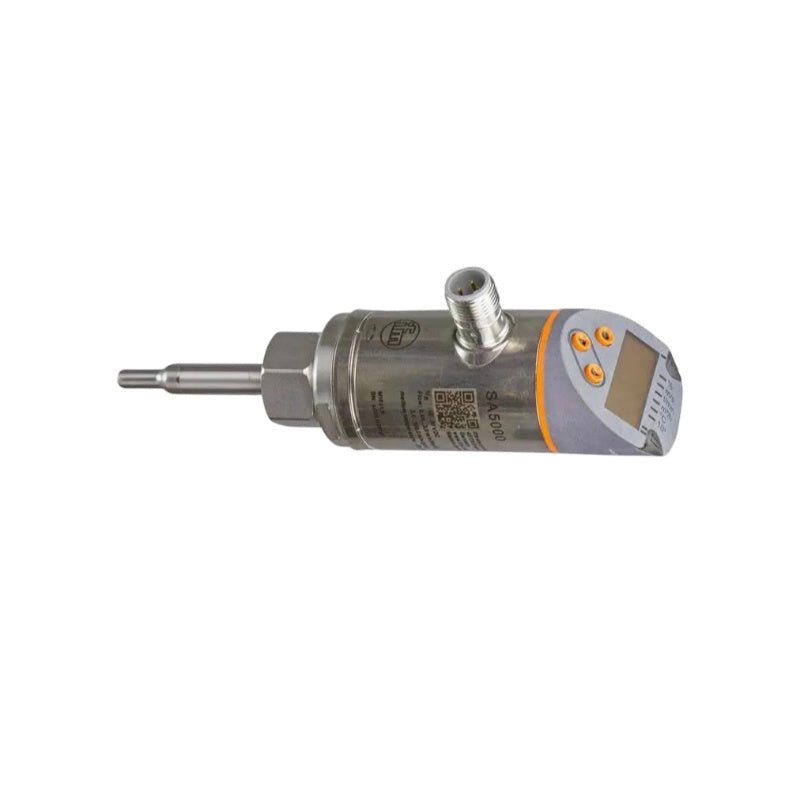

IFM SA5000 Flow Sensor SAD10XDBFRKG/US-100 0-6 m/s IP65/IP67

Overview
The IFM SA5000 (SAD10XDBFRKG/US‑100) is a high‑precision calorimetric flow sensor designed for simultaneous measurement of flow rate and temperature in industrial fluid systems. Optimized for water, oils, glycol solutions, and air, this sensor delivers reliable performance across a wide range of media types. The device features a 4‑digit alphanumeric red/green display that provides clear visual identification of the acceptable range, enabling instant process status recognition. With a 45 mm probe length and robust stainless steel construction (316L/1.4404), the SA5000 withstands pressure up to 100 bar and media temperatures from -20 °C to 90 °C. The rotatable M18 x 1.5 process connection allows optimum alignment during installation, while the IP65/IP67 protection rating ensures reliable operation in harsh industrial environments. The sensor offers 2 configurable switching outputs (PNP/NPN, 250 mA) plus one scalable analog output (4…20 mA, 350 Ω load). The integrated IO‑Link interface (V1.1, COM2) enables remote parameterization, process data exchange (2 analog + 2 binary values), and device diagnostics with a minimum cycle time of 3 ms. Calorimetric measurement principle provides maintenance‑free operation and long‑term stability.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Simultaneous flow and temperature measurement – Calorimetric measurement principle provides two critical process parameters in a single device, reducing installation complexity and saving valuable cabinet space.

• Optimized for water, oils and air – Supports water, glycol solutions, low‑viscosity oils (≤ 40 mm²/s at 40 °C), high‑viscosity oils (> 40 mm²/s), and air/gases, offering versatility across diverse industrial applications.

• Red/green display for clear acceptable range identification – 4‑digit alphanumeric display with red/green color coding instantly visualizes whether the flow rate is within the acceptable range, enabling rapid operator assessment.

• Dual flexible outputs plus analog signal – Two configurable digital outputs (PNP/NPN, NO/NC, 250 mA each) plus one scalable analog output (4…20 mA, 350 Ω load) with frequency output option (0…1000 Hz).

• IO‑Link V1.1 communication – IO‑Link interface (COM2, 38.4 kBaud) enables remote parameterization, process data readout (2 analog + 2 binary values), and extended diagnostics, reducing downtime and simplifying maintenance.

• Rotatable process connection for optimum alignment – M18 x 1.5 internal thread process connection with 345° rotation capability allows perfect display and cable alignment during installation, eliminating awkward mounting positions.

• Robust stainless steel housing for harsh environments – Constructed from stainless steel 316L/1.4404 and PBT‑GF materials, with IP65/IP67 protection rating, IP69K‑compatible cables, and pressure rating up to 100 bar.

• Wide temperature range and high accuracy – Media temperature from -20 °C to 90 °C, ambient temperature from -40 °C to 80 °C, storage from -40 °C to 100 °C, with accuracy of ±(7 % MW + 2 % MEW) in relative mode and repeatability of 0.05 m/s (water).

• High reliability with MTTF of 132 years – Exceptional mean time to failure ensures long‑term dependable operation, minimizing unplanned downtime and maintenance costs.

Technical Specifications

Applications

• Cooling water and hydraulic oil flow monitoring in industrial machinery.

• Air and compressed gas systems for leak detection and consumption monitoring.

• Machine tool lubrication circuits to ensure proper lubrication.

• Process control in food, beverage, and chemical plants.

• HVAC systems and energy management installations.

• General fluid control in industrial automation requiring flow and temperature monitoring simultaneously.

Package Includes

• 1 × IFM SA5000 flow sensor (SAD10XDBFRKG/US‑100)

• Instruction manual

⚠️ *Adapters for process connection (e.g., G 1/2, G 1/4, G 1) are sold separately. IFM offers a full range of welding adapters, mounting adapters, and T‑pieces.*
