IFM SI5010 Flow Monitor SID10ADBFPKG/US-100 3-300 cm/s IP67 IO-Link

Overview

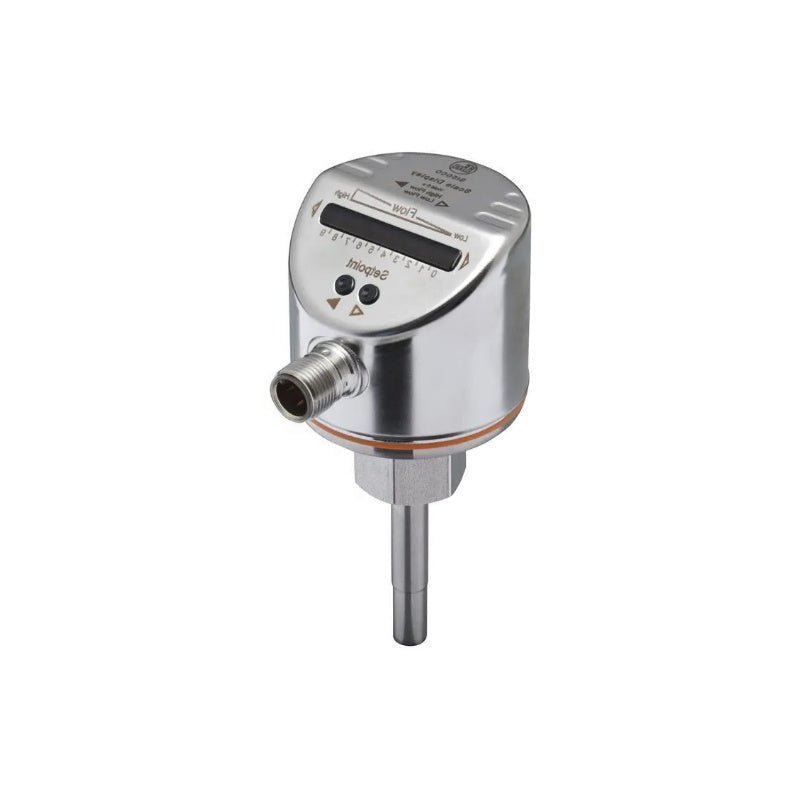

The IFM SI5010 (SID10ADBFPKG/US‑100) is a compact calorimetric flow monitor designed for reliable monitoring of liquids and gases in pipes. Utilizing microprocessor technology, this device provides accurate flow detection independent of pressure and temperature variations within its rated range. The sensor features a variable process connection using adapters (M18 x 1.5 internal thread), allowing flexible installation across diverse pipe sizes and configurations. The robust stainless steel housing with IP65/IP67 protection rating withstands harsh industrial environments, including dust, temporary immersion, and high‑pressure washdown. The intuitive 10‑segment LED bar graph provides clear visual indication of both switch point and current flow status, while push‑button adjustment enables quick and easy set‑up without specialized tools or software. With a PNP switching output (NO/NC configurable) and integrated IO‑Link V1.1 communication (COM2, 38.4 kBaud), the SI5010 enables remote parameterization, process data readout, and extended diagnostics. The 45 mm probe length with 8.2 mm diameter delivers reliable performance for cooling circuits, pump protection, and process control applications.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• Dual‑media compatibility (liquids & gases) – Monitors both liquid flow (3…300 cm/s) and gas flow (200…3000 cm/s) in a single device, reducing inventory complexity and offering versatility across diverse industrial applications.

• Variable process connection using adapters – M18 x 1.5 internal thread accepts a wide range of adapters for different pipe sizes and connection types, enabling flexible installation without sensor replacement.

• LED bar graph for indication of switch point and flow – 10‑segment LED bar graph provides real‑time visual indication of switch point setting and current flow status, simplifying commissioning and troubleshooting.

• Easy push‑button switch point adjustment – Teachable switch point setting via push‑button eliminates the need for external programmers or software, enabling quick set‑up and on‑the‑fly adjustments via convenient button operation.

• Robust stainless steel housing – IP65/IP67‑rated stainless steel construction resists corrosion, washdown, and harsh industrial conditions for long‑term reliability.

• IO‑Link V1.1 communication – Integrated IO‑Link interface (COM2, 38.4 kBaud) enables remote parameterization, process data readout, and extended diagnostics, reducing downtime and simplifying maintenance. Supports 3 ms minimum process cycle time with SIO mode and Smart Sensor Profile.

• Wide temperature and pressure ratings – Operates with media temperatures from -25°C to 80°C, ambient temperatures from -25°C to 80°C, and pressure ratings up to 300 bar, suitable for demanding process applications.

• Programmable PNP output (NO/NC) – Single digital PNP output configurable as normally open or normally closed, offering flexibility for integration into various control systems. Output rating: 250 mA continuous, short‑circuit and overload protected.

• High reliability with MTTF of 298 years – Exceptional mean time to failure ensures long‑term dependable operation, minimizing unplanned downtime and maintenance costs.

Technical Specifications

Applications

• Cooling circuit monitoring in machine tools, welding equipment, and industrial machinery.

• Pump protection and dry‑run prevention in water treatment, chemical processing, and irrigation systems.

• HVAC system flow verification for air handling units, chillers, and heat exchangers.

• Process control in food and beverage, pharmaceutical, and semiconductor manufacturing.

• Gas flow monitoring in combustion systems, ventilation, and compressed air networks.

• Retrofit and OEM applications requiring flexible adapter‑based installation.

Package Includes

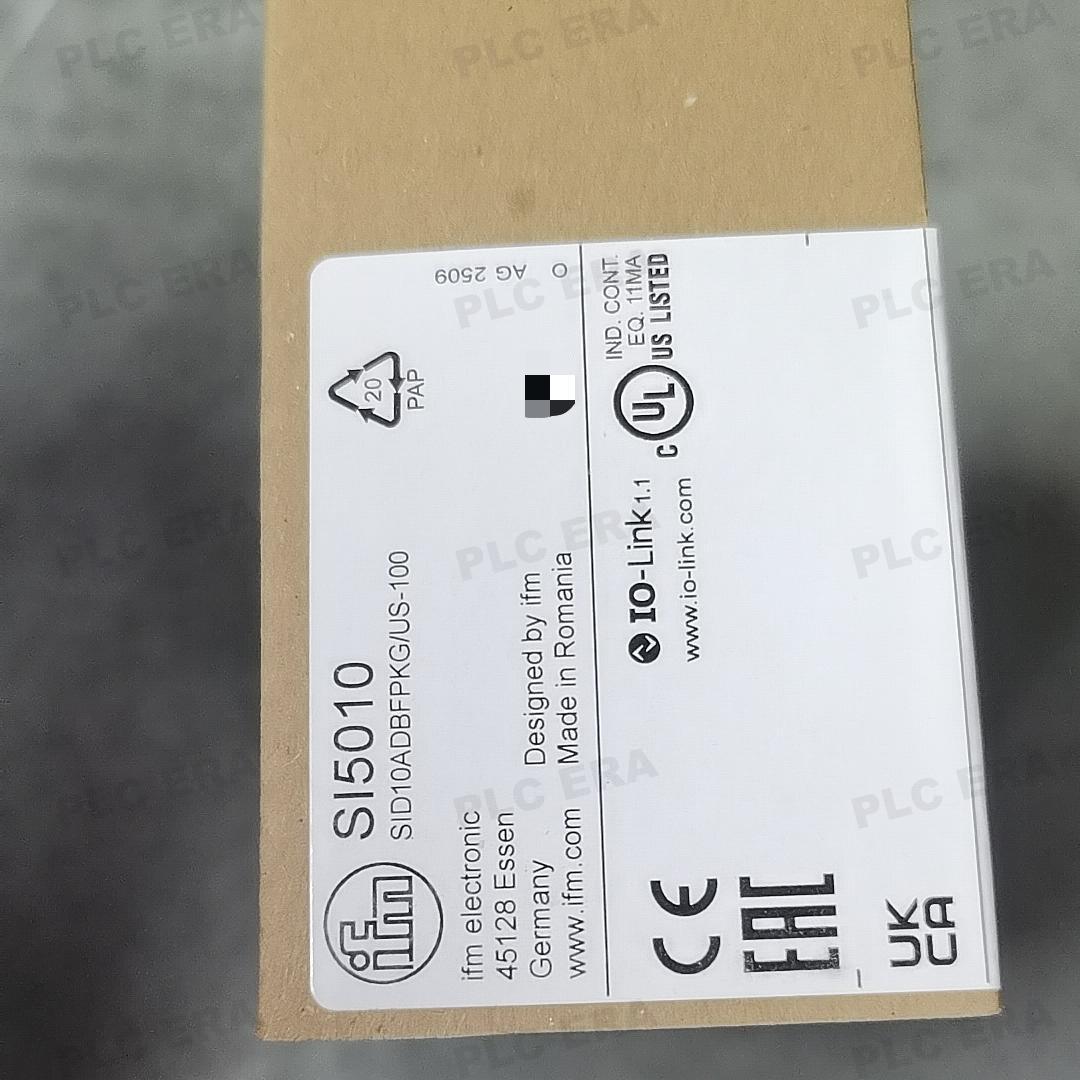

• 1 × IFM SI5010 flow monitor (SID10ADBFPKG/US‑100)

• Instruction manual

⚠️ Adapter for process connection sold separately. IFM offers a full range of welding adapters, mounting adapters, and T‑pieces for various pipe sizes.
