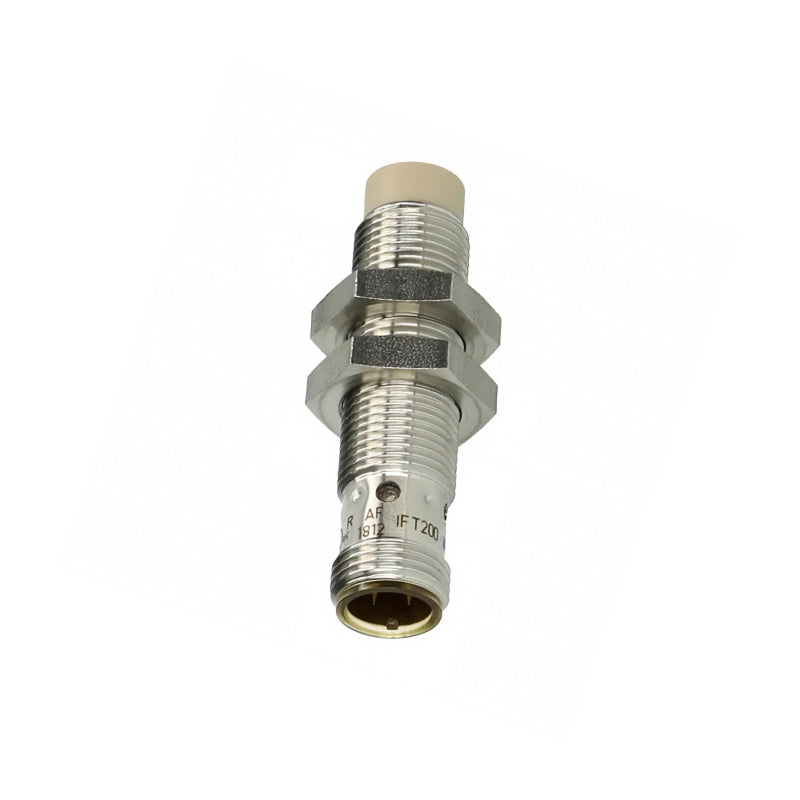

IFT200 Inductive Sensor 7mm PNP NO M12 Stainless Steel IP69K | IFM

The Original New IFM IFT200 is a high-performance inductive proximity sensor engineered for reliable metal object detection in the food and beverage industry and other demanding hygiene-critical environments. Housed in a robust stainless steel (1.4404 / 316L) body with a PEEK sensing face, it is resistant to high-pressure cleaning with aggressive cleaning agents and withstands frequent temperature fluctuations. Featuring a 7 mm non-flush mounting sensing range, gold-plated M12 connector contacts, and IP68 / IP69K protection, the IFT200 ensures reliable, long-term operation where standard sensors fail.

Core Engineering Highlights:
7 mm non-flush mountable sensing range | PNP normally open output | 10‑30 V DC operating voltage | 800 Hz switching frequency | 0°C to +100°C ambient temperature range | IP68 / IP69K protection rating | Stainless steel (316L) housing | PEEK sensing face | Gold‑plated M12 connector contacts | 1134 years MTTF

Key Features:

• Original New IFM IFT200 sensor

• Inductive proximity sensor for non‑contact detection of metal objects

• Non-flush (unshielded) mounting for extended sensing range

• 7 mm nominal sensing range with 0‑5.67 mm operating distance

• PNP normally open (NO) output with 100 mA continuous current rating

• 800 Hz switching frequency for high‑speed applications

• Stainless steel (1.4404 / 316L) housing and lock nuts for corrosion resistance

• PEEK sensing face for enhanced chemical and thermal resistance

• Gold‑plated M12 connector contacts for reliable signal transmission

• 4 yellow LEDs at 90° for clear switching status indication

• Reverse polarity, short‑circuit, and overload protection

• 10‑30 V DC wide operating voltage range

• Protection rating IP68 and IP69K for high‑pressure washdown and immersion

• Wide ambient temperature range: 0°C to 100°C

• Increased sensing range capability

• Correction factors: steel 1.0, stainless steel 0.7, brass 0.5, aluminium 0.4, copper 0.3

Applications:

• Metal object detection in food and beverage processing equipment

• Hygienic areas requiring regular cleaning processes

• High‑pressure washdown environments with aggressive cleaning agents

• Applications with frequent temperature fluctuations

• Position monitoring on stainless steel machinery and conveyors

• Packaging and bottling lines in the food industry

• Automated assembly and material handling systems

Technical Specifications:

System Compatibility:

• PLCs and controllers via PNP digital input

• M12 A‑coded connection cables (3‑wire)

• 24V DC power supplies (Class 2 source recommended)

• IFM mounting accessories and brackets

• Food and beverage industry equipment

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• IFT203 – Alternative variant with 4mm flush mounting

• IFT245 – Alternative variant with 6mm non‑flush sensing range

• IG6005 – Alternative article comparable to IFT200
