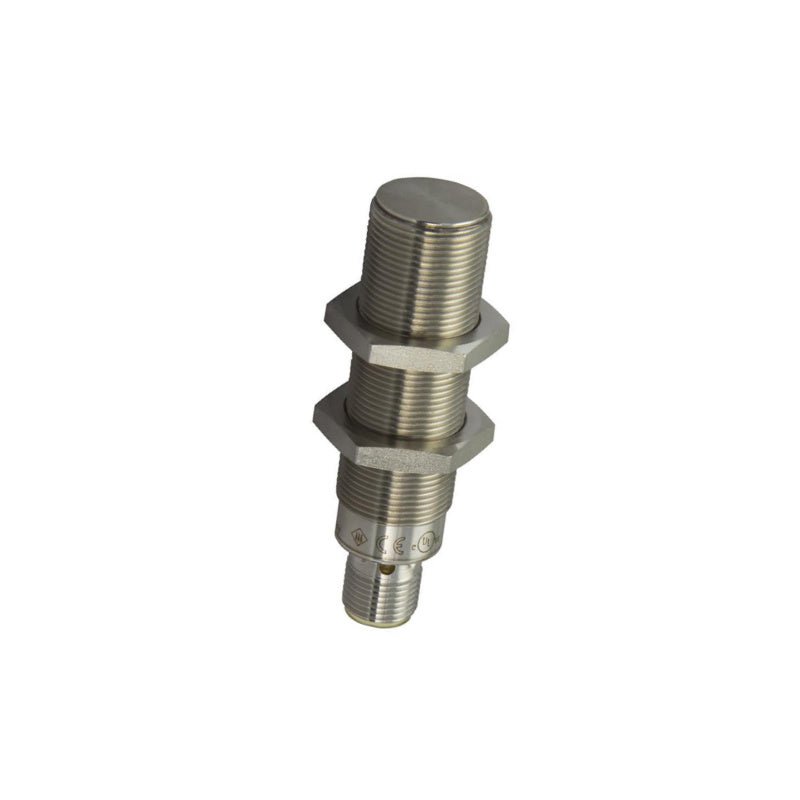

IGT247 Full-Metal Inductive Sensor M18 PNP 5mm IP68/IP69K | IFM

The Original New IFM IGT247 is a full-metal inductive proximity sensor engineered for the most demanding sanitary and high-pressure washdown environments. Featuring a robust 316L stainless steel housing with a flush metal sensing face, it is specifically designed for use in the food and beverage industry, pharmaceutical production, and automotive parts cleaning lines. The sensor is resistant to high-pressure cleaning with aggressive cleaning agents, withstands wide temperature fluctuations without thermal shock failure, and is rated IP68/IP69K for submersion and high-temperature, high-pressure washdown applications. With a 5 mm sensing range, gold-plated contacts, and a PNP normally open output, the IGT247 delivers reliable non-contact metal detection in harsh industrial environments.

Core Engineering Highlights:
5 mm flush sensing range | 316L stainless steel housing and sensing face | PNP normally open output | 100 Hz switching frequency | IP68 / IP69K protection | 0°C to +100°C operating temperature | 100 bar pressure resistance | Gold-plated contacts | M18 x 1 thread | M12 connector | 1258 years MTTF

Key Features:

• Original New IFM IGT247 sensor

• Full-metal 316L stainless steel housing and sensing face for extreme durability

• Flush mountable design for space-constrained installations

• Resistant to high-pressure cleaning with aggressive cleaning agents

• Temperature shock resistant – withstands frequent temperature fluctuations

• Wide operating temperature range: 0°C to +100°C

• IP68 / IP69K protection for submersion and high-pressure washdown

• 100 bar pressure resistance on the sensing face

• Gold-plated contacts for reliable electrical performance

• 5 mm sensing range with 0–4.05 mm working distance

• LED switching status indicator (4 x 90° yellow LED)

• MTTF: 1258 years for long-term reliability

• UL certified (E174191)

Applications:

• Food and beverage processing equipment

• Pharmaceutical manufacturing and clean-in-place (CIP) systems

• Automotive parts cleaning lines and high-pressure washdown areas

• Industrial washing machines and sterilization equipment

• Hygienic environments requiring frequent cleaning with aggressive agents

• General factory automation in harsh, wet, or high-temperature conditions

Technical Specifications:

System Compatibility:

• Compatible with PLCs via PNP digital input (3-wire DC)

• M12 A‑coded connection cables (4-pin)

• 24V DC power supplies (Class 2 source required)

• IFM mounting brackets and accessories

• Suitable for food and beverage, pharmaceutical, and high-pressure washdown environments

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• IGT249 – 12 mm non-flush version for longer sensing range

• IFT245 – M12 version for compact installations

• IGT203 – 8 mm flush version for higher switching frequency
