OID200 Laser Distance Sensor 2m Class 2 PNP M12 | IFM

The Original New IFM OID200 Laser Distance Sensor is a photoelectric distance sensor based on time‑of‑flight measurement, enabling very long sensing ranges up to 2 m. Designed for reliable object detection regardless of colour or surface gloss, it provides robust background suppression up to 20 m. Housed in a rugged M30 stainless steel barrel with IP65/IP67 protection, this sensor delivers high performance in harsh industrial environments. Parameter setting is simplified via a turnable, lockable adjustment ring, and IO‑Link communication enables advanced diagnostics and flexible configuration.

Core Engineering Highlights:
0.03‑2 m measuring range | Time‑of‑flight measurement principle | Background suppression up to 20 m | Visible red laser, Class 2 (650 nm) | PNP complementary outputs (NO/NC) | 33 Hz sampling rate | M30 x 1.5 threaded stainless steel housing | IP65 / IP67 protection | M12 connector (A‑coding) | IO‑Link V1.1 communication | 10‑30 V DC operating voltage | –25°C to +60°C operating temperature

Key Features:

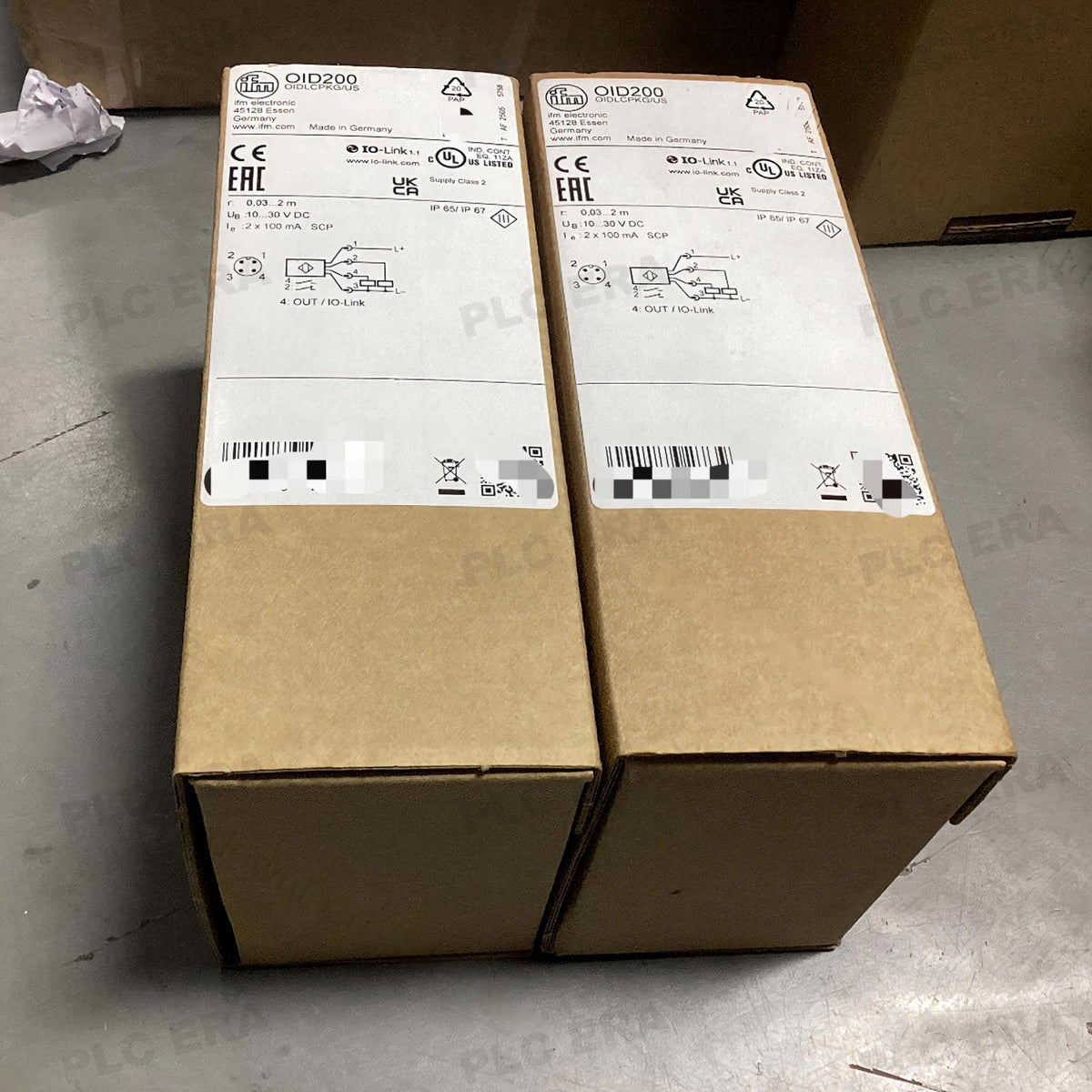

• Original New IFM OID200 sensor

• Very long range due to time‑of‑flight measurement

• Reliable background suppression and colour‑independent detection

• Reliable detection of glossy surfaces

• Easy parameter setting via turnable, lockable adjustment dial

• User‑friendly communication via IO‑Link

• Visible red laser light (650 nm, Class 2) for easy alignment

• 2 complementary PNP switching outputs (NO/NC)

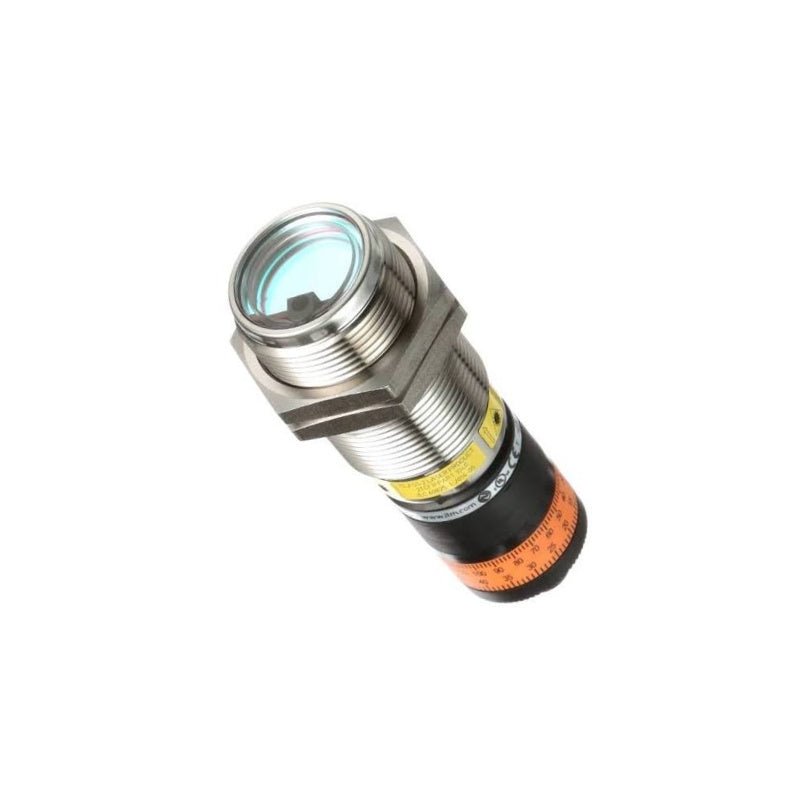

• Rugged M30 stainless steel housing for harsh industrial environments

• IP65 / IP67 protection rating

• M12 connector (A‑coding) for simple electrical connection

Applications:

• Distance measurement on conveyor and material handling systems

• Positioning and presence monitoring in automated assembly lines

• Object detection regardless of colour or surface gloss (including shiny surfaces)

• Level measurement and fill‑level monitoring

• Packaging machinery and OEM equipment

• Factory automation requiring long‑range background suppression

Technical Specifications:

Laser Safety Notes:

• Caution: Laser light, ≤ 4.0 mW, 650 nm, 1.3 ns pulse

• Laser Class: 2 (EN/IEC 60825‑1:2007, EN/IEC 60825‑1:2014)

• Complies with: 21 CFR 1040.10 except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

• Do not stare into beam. Avoid exposure to the laser light.

IO‑Link Smart Sensor Profile Support:

• Smart Sensor - SSP 0: Generic Profiled Sensor

• Sensor Identification, Binary Data Channel, Process Value, Sensor Diagnosis

• SIO mode supported

• 1 analog process data, 1 binary process data

System Compatibility:

• PLCs via PNP digital inputs (2 channels)

• IO‑Link masters for advanced parameterisation and diagnostics

• M12 A‑coded connection cables (4‑pin)

• 24V DC power supplies (Class 2 source required)

• IFM mounting brackets and accessories

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• E21133 – Protective cover for M30 sensors

• OID250 – Extended range version

• OID300 – Higher precision version
