PM1707 Flush Pressure Sensor -0.05…1 bar 4‑20mA G1 Aseptoflex | IFM

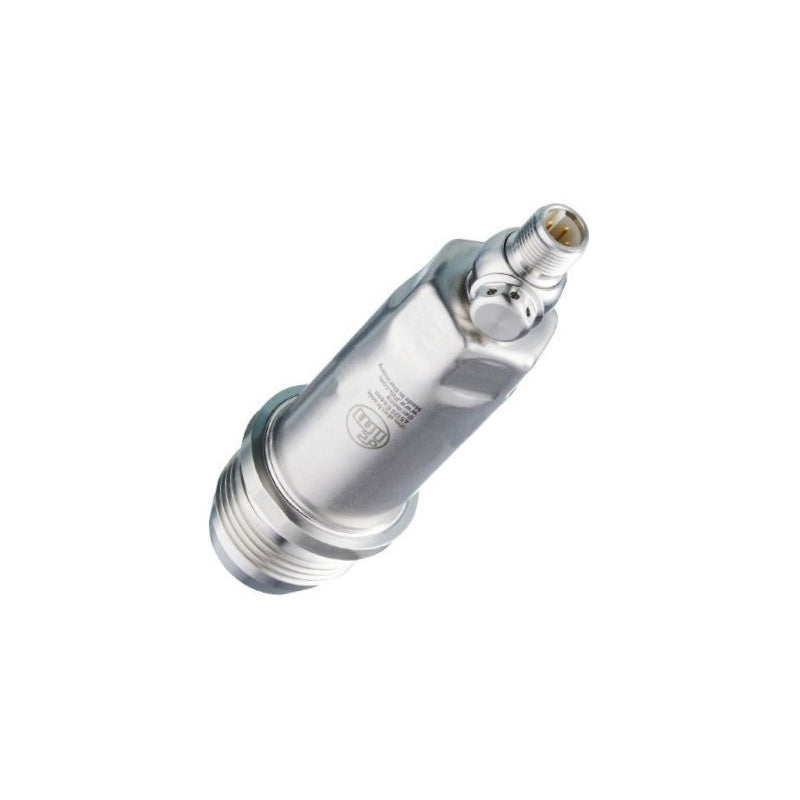

The Original New IFM PM1707 Flush Pressure Sensor is a hygienic electronic pressure transmitter designed for flush‑mount installation in the food and beverage industry. Featuring a robust stainless steel housing with a flush, gap‑free ceramic capacitive measuring cell, it prevents product buildup and enables reliable CIP/SIP cleaning. The sensor provides a scalable 4‑20 mA analog output with IO‑Link communication, delivering precise relative pressure measurement from –0.05 to 1 bar for viscous, solid‑containing, liquid, and gaseous media.

Core Engineering Highlights:
–0.05…1 bar measuring range | Ceramic capacitive measuring cell | 4‑20 mA scalable analog output | IO‑Link communication | G1 Aseptoflex Vario process connection | –25…150°C medium temperature | IP67 / IP68 / IP69K protection | 18‑30V DC | Flush‑mount sanitary design | 0.2% accuracy

Key Features:

• Original New IFM PM1707 sensor

• Hygienic flush‑mount design eliminates dead zones and prevents bacterial growth

• Robust stainless steel (V4A) housing for food and beverage applications

• Ceramic capacitive measuring cell with high overload resistance and long‑term stability

• Scalable 4‑20 mA analog output with adjustable measuring range

• IO‑Link communication for parameter setting, diagnostics, and process data

• Resistant to high‑pressure cleaning with aggressive cleaning agents

• Medium temperature range: –25°C to +150°C

• High protection rating: IP67, IP68, IP69K

• Gold‑plated contacts for reliable signal transmission

• G1 Aseptoflex Vario external thread process connection

• Suitable for viscous, solid‑containing, liquid, and gaseous media

• Relative pressure measurement with vacuum resistance down to –1000 mbar

• Accuracy: 0.2% of span characteristic curve deviation (including linearity, hysteresis, and repeatability)

• Repeatability: <±0.1% of span

Applications:

• Pressure monitoring in food and beverage processing

• Hygienic level measurement in tanks and vessels

• Viscous and solid‑containing media (pastas, sauces, dairy products)

• CIP/SIP (Clean‑in‑Place / Sterilize‑in‑Place) processes

• Pharmaceutical and biotechnology applications

• Dairy and beverage production lines

• Hydrostatic level measurement in open tanks

Technical Specifications:

Electrical Data:

Outputs:

Accuracy / Deviations:

Measuring / Setting Ranges:

Environmental & Physical:

System Compatibility:

• PLCs via 4–20 mA analog input (2‑wire loop power)

• IO‑Link masters for advanced parameter setting and diagnostics

• M12 A‑coded connection cables (4‑pin)

• 24V DC power supplies (Class 2 source recommended)

• IFM sanitary fittings and accessories

Typical System Architecture:
24V DC Power Supply
↓
PM1707 Flush Pressure Sensor (Flush‑mounted in tank / pipeline)
│
├── 4–20 mA Analog Output → PLC Analog Input (Continuous pressure monitoring)
├── IO‑Link → IO‑Link Master (Parameter setting / Diagnostics / Process data)
│
↓
Ceramic Capacitive Measuring Cell (Flush, gap‑free design)
↓
Food / Beverage / Pharmaceutical Process Media

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• PM1708 – 0…0.25 bar version

• PM1709 – 0…0.1 bar version

• PM1789 – 0…0.1 bar version

• PM1714 – Alternative pressure range
