PN3094 Pressure Sensor -1…10 bar Red/Green Display PNP/NPN G1/4 | IFM

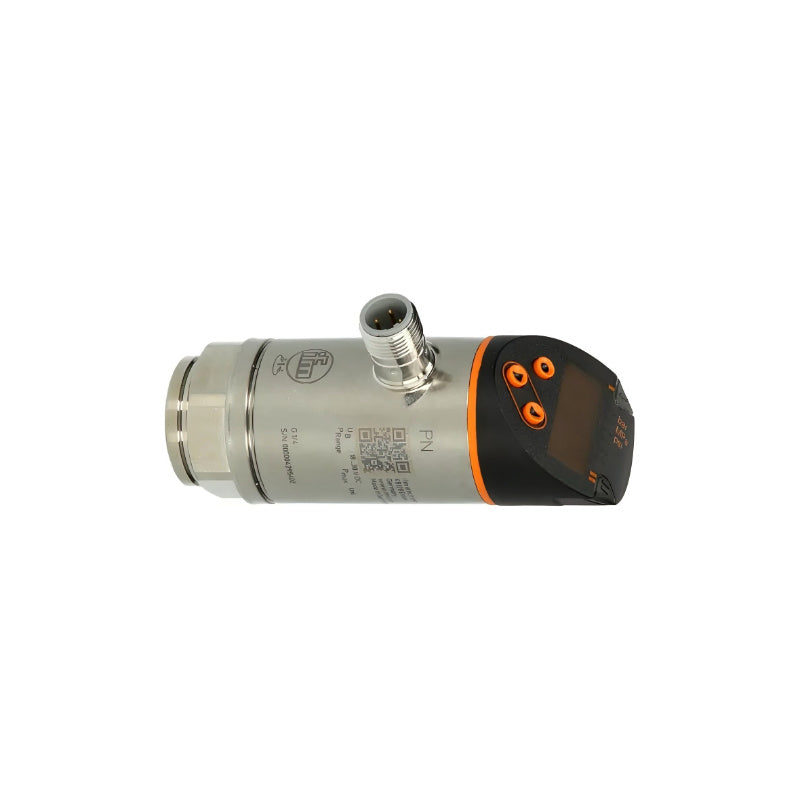

The Original New IFM PN3094 Electronic Pressure Sensor is a versatile, high-performance device designed for precise pressure monitoring in liquids and gases across a wide range of industrial applications. Featuring a red/green 4‑digit alphanumeric display for clear identification of the acceptable range, this sensor delivers reliable -1…10 bar relative pressure measurement with both switching and analogue outputs. The process connection can be rotated 345° for optimum alignment, and the ceramic-capacitive measuring cell ensures long‑term stability and high overload protection. With IO‑Link communication, gold‑plated contacts, and a robust design for harsh industrial environments, the PN3094 provides a convenient, durable, and cost‑effective solution for pressure monitoring in factory automation, hydraulic systems, pneumatic controls, and process applications.

Core Engineering Highlights:
-1…10 bar / -14.5…145 psi / -0.1…1 MPa measuring range| Red/green 4‑digit alphanumeric display| Programmable PNP/NPN switching output + scalable 4‑20 mA / 0‑10 V analogue output| IO‑Link communication| Ceramic‑capacitive pressure measuring cell| 345° rotatable housing for optimal alignment| 75 bar pressure rating / 150 bar bursting pressure| -25…80°C medium temperature| IP67 protection| G1/4 internal thread + M6 I system process connection| Gold‑plated contacts

Key Features:

• Original New IFM PN3094 pressure sensor

• Red/green display for clear identification of the acceptable range

• The process connection can be rotated for optimum alignment

• With long-term stability thanks to high overload protection

• Robust design for use in harsh industrial environments

• Programmable switching output with IO-Link and analogue output

• 4‑digit alphanumeric display with red/green backlighting

• 345° rotatable upper housing section for flexible installation

• 2 programmable outputs: 1 PNP switching output + 1 analogue output (4‑20 mA / 0‑10 V)

• PNP/NPN selectable electrical design

• Normally open / normally closed configurable output function

• Ceramic‑capacitive pressure measuring cell for high accuracy and long‑term stability

• IO‑Link communication for convenient parameter setting and diagnostics

• Gold‑plated contacts for reliable signal transmission

• Suitable for liquids and gases

• IP67 protection for harsh industrial environments

Applications:

• Hydraulic system pressure monitoring and control

• Pneumatic system pressure detection

• Air‑conditioning and refrigeration systems

• Factory automation and machine building

• Process control and industrial equipment

• Liquid and gas pressure monitoring in harsh environments

• OEM machine building and panel integration

Technical Specifications:

System Compatibility:

• Compatible with PLCs via PNP/NPN digital input (1 channel) and analogue input (4‑20 mA or 0‑10 V)

• IO‑Link masters for advanced parameterization and diagnostics

• M12 A‑coded connection cables (4‑pin)

• 18‑30 V DC power supplies

• G1/4 process connections with M6 internal thread

• IFM mounting brackets and accessories

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• E21133 – Protective cover for pressure sensors

• PN2094 – Similar sensor with 2 switching outputs + 1 analogue output (different output configuration)

• PN3594 – Alternative model with different measuring range
