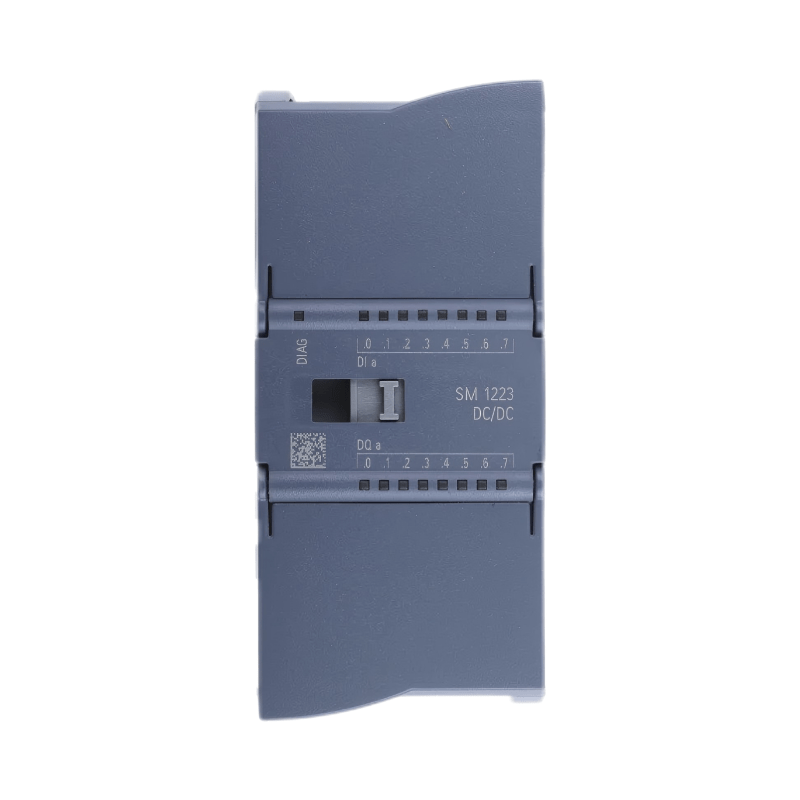

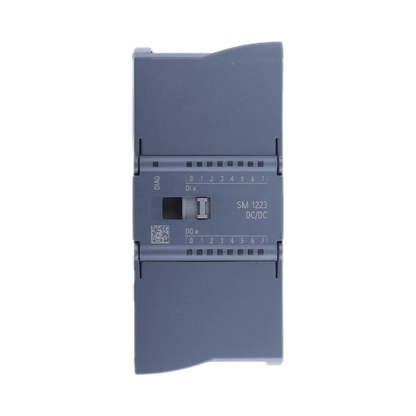

Siemens SIMATIC S7-1200 SM 1223 Digital I/O 8DI/8DO 6ES7223-1BH32-0XB0

Overview
The Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module (6ES7223-1BH32-0XB0) is a combined signal module designed to expand both the digital input and output capacity of S7-1200 PLC systems. It provides 8 digital inputs (24V DC, sink/source configurable) and 8 transistor outputs (24V DC, 0.5A, source output). This module offers a space-saving solution for applications requiring flexible I/O expansion with fast switching speeds.

Key Features

• 8 Digital Inputs – 24V DC, configurable as sink or source (PNP/NPN compatible).

• 8 Transistor Outputs – 24V DC, 0.5A per channel, source output (PNP P-switching).

• Combined I/O – Inputs and outputs in one module for efficient expansion.

• Fast Switching – Transistor outputs for high-speed control applications.

• Compact Design – Space-saving module for direct mounting on S7-1200 CPU or expansion rack.

• Easy Integration – Seamless connection to SIMATIC S7-1200 systems.

• Original Brand New, Within Warranty Period – Genuine Siemens product, brand new in sealed packaging, covered by manufacturer's warranty.

• 100% Satisfaction Guarantee – Your purchase is protected by our satisfaction guarantee; return or exchange if not completely satisfied.

Technical Specifications

• Product Type: Digital I/O Module (Combined)

• Model: 6ES7223-1BH32-0XB0

• Series: SIMATIC S7-1200 (SM 1223)

• Digital Inputs: 8 DI, 24V DC, sink/source

• Digital Outputs: 8 DO, transistor, 24V DC, 0.5A per channel, source output

• Compatibility: S7-1200 CPUs (firmware version dependent)

Applications
Ideal for applications requiring mixed I/O with fast switching, such as solenoid valve control, high-speed counters, and general machine control in factory automation, packaging, and material handling systems.

Package Includes

• 1 x SIMATIC S7-1200 SM 1223 Digital I/O Module (6ES7223-1BH32-0XB0)

• Documentation and connectors (if applicable)
