SM6100 Magnetic-Inductive Flow Meter 0.1-25 l/min G1/2 | IFM

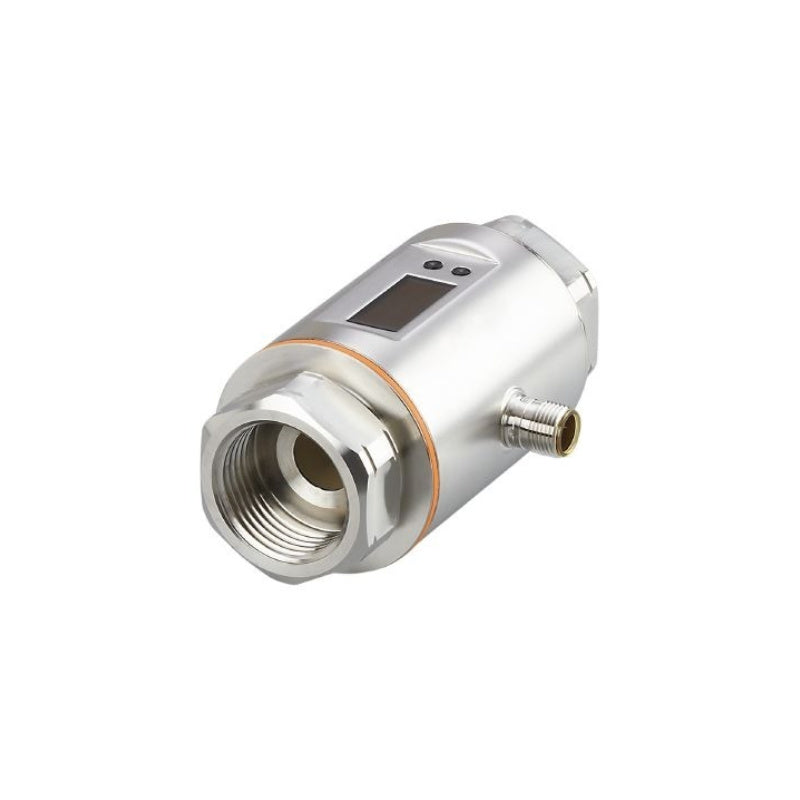

The Original New IFM SM6100 Magnetic-Inductive Flow Meter is a high-precision flow sensor designed for accurate measurement of flow rate, consumption, and medium temperature in industrial automation systems. Featuring a 4-digit LED display, intuitive pushbutton operation, and IO-Link communication capability, this flow meter delivers reliable performance for conductive liquid monitoring in factory automation, water treatment, and machine tool applications.

Core Engineering Highlights:
0.1-25 l/min measuring range | 4-20mA / 0-10V analog output | 2 x PNP/NPN switching outputs | Pulse output for totalizer | IO-Link communication | 4-digit LED display | G1/2 flat seal process connection | 18-30V DC | IP65 | –10°C to +70°C medium temperature | 16 bar pressure rating

Key Features:

• Original New IFM SM6100 flow meter

• Magnetic-inductive measuring principle for conductive liquids (≥20 µS/cm)

• Measuring range: 0.1–25 l/min (0.005–1.5 m³/h)

• 4-digit LED display for clear, real‑time flow and temperature readout

• 2 digital outputs (PNP/NPN configurable, 200mA each) – normally open / normally closed selectable

• 1 analog output (4–20mA or 0–10V, scalable)

• Pulse output for totalizer/consumption monitoring

• IO-Link communication for parameter setting and diagnostics

• Medium temperature measurement range: –10°C to +70°C

• Pressure rating: 16 bar (1.6 MPa)

• Process connection: G1/2 DN15 flat seal

• Gold-plated contacts for reliable signal transmission

• IP65 protection rating for harsh industrial environments

• Pushbutton operation or IO-Link parameter setting

• Totaliser function for consumption monitoring

• Suitable for water, hydrous media, and conductive liquids

• Viscosity: <70 mm²/s at 40°C

Applications:

• Flow rate monitoring in cooling water circuits

• Consumption measurement in machine tools and welding equipment

• Water treatment and hydrous media monitoring

• Industrial process control and automation

• Pump protection and flow monitoring systems

• OEM equipment requiring precise flow measurement

• Conductive liquid flow monitoring (≥20 µS/cm)

Technical Specifications:

Electrical Data:

Outputs:

Measuring/Setting Ranges:

Temperature Measurement:

Environmental & Physical:

System Compatibility:

• PLCs via PNP/NPN digital inputs (2 channels)

• PLC analog input modules via 4–20mA or 0–10V (1 channel)

• IO-Link masters for advanced parameterisation and diagnostics

• Totalizer/pulse counting systems via pulse output

• M12 A‑coded connection cables (5‑pin)

• 24V DC power supplies (Class 2 source recommended)

• IFM mounting adapters and accessories

Typical System Architecture:
24V DC Power Supply
↓
SM6100 Magnetic-Inductive Flow Meter (In-line installation)
│
├── 2 x Digital Outputs → PLC Digital Inputs (Flow monitoring / Alarm)
├── 1 x Analog Output (4–20mA / 0–10V) → PLC Analog Input (Continuous flow)
├── 1 x Pulse Output → PLC Counter Input (Totalizer / Consumption)
├── IO-Link → IO-Link Master (Parameter setting / Diagnostics)
│
↓
4‑digit LED Display (Local flow / temperature readout)
↓
Conductive Liquid Flow (Water, Coolants, Hydrous Media)

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• SM6400 – Flow sensor, 0.1–25 l/min, Rc1/2

• SM6000 – Flow sensor, 0.10–25.00 l/min, G1/2

• E43101 – Welding adapter for G1/2 process connection

• IO-Link master – For advanced parameter setting and diagnostics

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. IFM is a trademark of ifm electronic gmbh.
