EVC811 Female Wirable M12 Connector 4-Pin Angled Screw Terminal | IFM

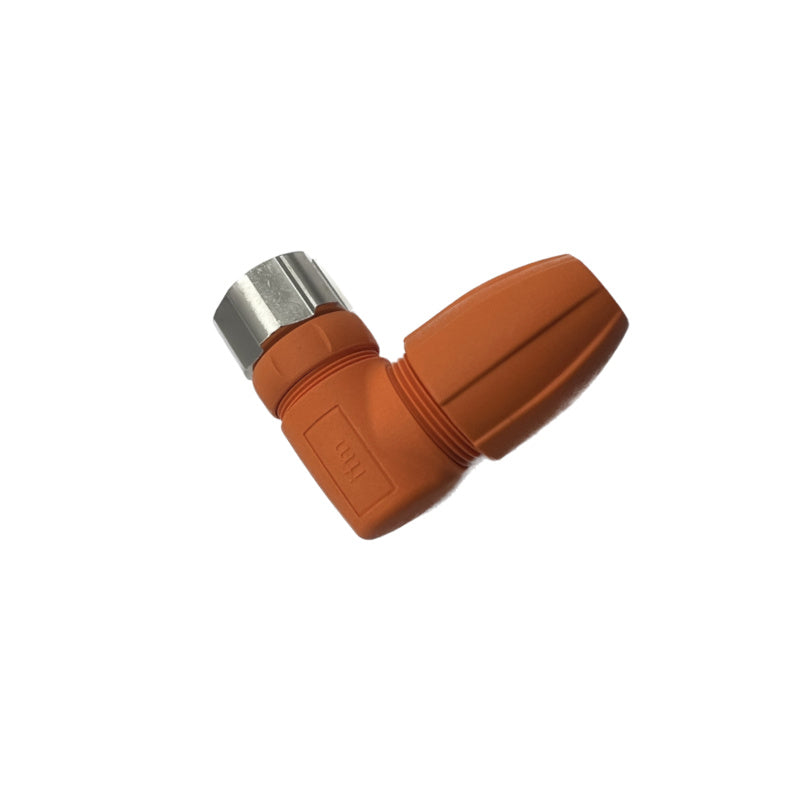

The Original New IFM EVC811 Female Wirable M12 Connector is a field-attachable, angled M12 socket designed for custom sensor-actuator cable assembly in industrial automation environments. Featuring proven screw terminal connections with gold-plated contacts, patented three‑way ball clamp strain relief, and an IP65/IP67/IP68/IP69K protection rating, this connector provides a reliable, cost-effective solution for on-site wiring without specialised tooling.

Core Engineering Highlights:
M12 female socket, A‑coded | 4‑pin angled design | Screw terminals: 0.25‑1 mm² (AWG 23‑17) | Cable sheath Ø 3.5‑6 mm | 4A current rating @ 40°C | <250V AC / <300V DC | Gold‑plated contacts | IP65 / IP67 / IP68 / IP69K | PA 6.6 orange housing | Brass, nickel‑plated locking nut | FKM sealing | –25°C to +90°C operating temperature

Key Features:

• Original New IFM EVC811 connector

• M12 female socket, A‑coded, angled design for space‑constrained installations

• 4‑pin configuration for standard sensor-actuator applications

• Screw terminals accept 0.25‑1 mm² (AWG 23‑17) conductors

• Cable sheath diameter range: 3.5‑6 mm

• Gold‑plated contacts for reliable, corrosion‑resistant electrical connections

• Patented three‑way ball clamp technology provides excellent strain relief

• Simple and fast wiring by means of screw terminals (tightening torque 0.4 Nm)

• IP65, IP67, IP68 and IP69K protection ratings for harsh industrial environments

• Orange PA 6.6 moulded body for high mechanical strength

• Brass, nickel‑plated locking nut with FKM sealing

• Free from silicone

• 4A current carrying capacity at 40°C

• Wide operating temperature range: –25°C to +90°C

• Compact and lightweight: 42.8g

• RoHS and SVHC compliant

Applications:

• Field assembly of custom-length M12 sensor-actuator cables

• On‑site repair and replacement of damaged connectors without replacing entire cables

• Machine tool and conveyor system wiring

• Packaging machinery and factory automation

• Harsh environment applications requiring high IP protection

• Food and beverage industry applications (washdown‑rated)

• Drag chain installations with reliable strain relief

Technical Specifications:

System Compatibility:

• M12 male connectors on sensors, actuators, and fieldbus devices

• A‑coded M12 standard (EN 61076‑2‑101)

• 4‑pin sensor-actuator cables

• 24V DC control systems

• PLC and distributed I/O systems

• M12 pigtails and extension cables

Typical System Architecture:
Field Device (Sensor / Actuator with M12 male connector)
↓
EVC811 Female M12 Connector (field‑wired to cable)
│
├── Angled design for tight spaces
├── Screw terminals for secure, tool‑free wiring
├── 3‑way ball clamp for strain relief
│
↓
Custom‑Length Cable (AWG 23‑17, Ø 3.5‑6 mm)
↓
Terminal Block / PLC / Junction Box

Installation Notes:

• Strip cable jacket to the required length (refer to product manual)

• Insert conductors into screw terminals (0.25‑1 mm²)

• Tighten screw terminals to 0.4 Nm

• Ensure cable sheath is securely clamped by the three‑way ball clamp

• Tighten locking nut to 0.6‑1.2 Nm (do not exceed maximum value of the counterpart)

Related Products:

• EVC810 – Female wirable connector, M12, straight, 4‑pin

• EVC814 – Female wirable connector, M12, angled, 5‑pin

• EVC815 – Female wirable connector, M12, straight, 5‑pin

• EVC001 – Female cordset, M12 to open end, 2m

• EVC002 – Female cordset, M12 to open end, 5m

• EVC003 – Female cordset, M12 to open end, 10m

• EVC551 – Female cordset, M12 to open end, 2m

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. IFM is a trademark of ifm electronic gmbh.
