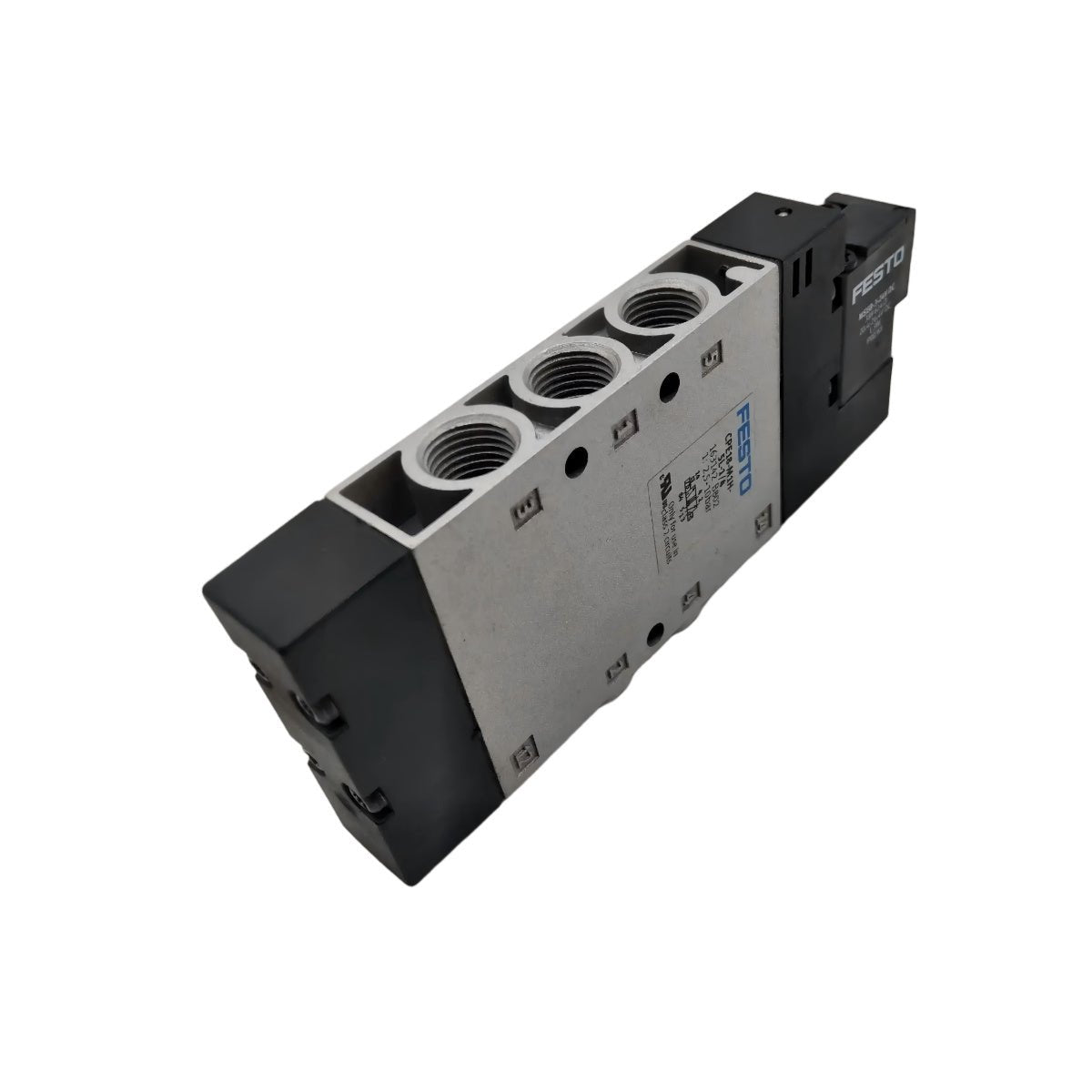

Festo CPE18-M1H-5L-1/4 163142 5/2 Solenoid Pilot Valve G1/4

Festo CPE18-M1H-5L-1/4 is a 5/2‑way, single‑solenoid (monostable) pneumatic directional control valve from the CPE compact series. With a construction width of just 18 mm, it delivers a flow rate of up to 1500 L/min while consuming only 1.5 W at 24 V DC. The die‑cast aluminium housing and corrosion‑resistant construction (CRC 2) make it suitable for industrial environments.

Applications:

• Control of double‑acting pneumatic cylinders

• Factory and packaging automation

• Material handling, conveyor, and assembly systems

• Retrofitting OEM machinery with compact valve requirements

Core Specifications:

• Valve function: 5/2‑way, monostable (single solenoid, spring return)

• Actuation type: Electrical pilot operation

• Pneumatic connection: G1/4 (female thread, all five ports)

• Standard nominal flow rate: 1500 L/min (DIN 1343)

• Operating pressure: 2.5…10 bar

• Operating voltage: 24 V DC

• Nominal power consumption: 1.5 W (24 V DC)

• Protection rating: IP65 with suitable mating socket

• Construction width: 18 mm

Advanced Specifications:

• Design: Piston gate valve with soft sealing

• Pilot air supply: Internal; pilot ports M5

• Exhaust air function: With flow control option

• Manual override: Detenting (via accessory) and non‑detenting variants

• Switching times: Off 20 ms / On 26 ms

• Max. positive test pulse (0 signal): 3300 µs; max. negative test pulse (1 signal): 3100 µs

• Permissible voltage fluctuation: –15% / +10%

• Housing material: Die‑cast aluminium

• Seal material: NBR

• Operating medium: Compressed air to ISO 8573‑1:2010 [7:4:4]; lubricated operation possible

• Ambient / media temperature: –5 °C … +50 °C

• Corrosion resistance class (CRC): 2

• Product weight: 220 g

• Mounting position: any

• Electrical connection: Form C – flying leads with 3‑pin plug socket (IEC 60529)

• Duty cycle: 100%

• RoHS compliant

System Integration:

• Compatible with Festo CPE compact series manifolds, valve terminals, and direct mounting plates.

• Requires a Festo solenoid coil (e.g., MSEB‑3‑24V DC, part 389614) for operation — the coil is not supplied with the valve body.

• Mating 3‑pin socket (IP65) for electrical connection is available separately.

• For detailed wiring and mounting instructions, refer to the official Festo CPE series hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• MSEB‑3‑24V DC (389614) – Solenoid coil 24V DC

• Plug socket – 3‑pin IP65, Form C (IEC 60529)

• CPE‑PRS manifold blocks for multi‑valve assembly
