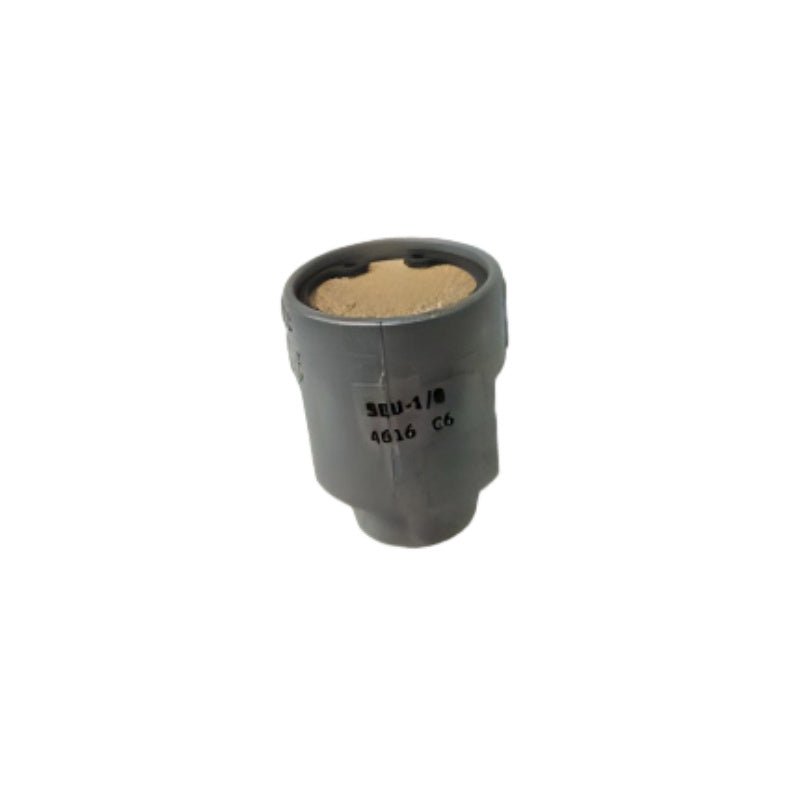

Festo SEU-1/8 4616 G1/8 Quick Exhaust Valve with Silencer

Festo SEU-1/8 is a quick exhaust valve with integrated silencer. Installed directly on the cylinder port, it enables rapid exhaust of compressed air to atmosphere, increasing piston return speed in single‑ or double‑acting pneumatic cylinders. The built‑in silencer reduces exhaust noise.

Applications:

• Increasing piston return speed in single‑acting cylinders

• Rapid exhaust in double‑acting cylinder circuits (installed between valve and cylinder)

• Packaging machinery and pick‑and‑place systems

• Factory automation requiring shorter cycle times

Core Specifications:

• Valve function: Quick exhaust

• Integrated silencer: Yes

• Pneumatic connection, port 1: G1/8 male

• Pneumatic connection, port 2: G1/8 female

• Standard nominal flow rate (6→5 bar): 550 l/min

• Operating pressure: 0.5 … 10 bar

• Nominal size: 5 mm

• Ambient / media temperature: –20 °C … +75 °C

• Sound pressure level: 85 dB(A)

Advanced Specifications:

• Standard flow rate (exhaust 6→0 bar): 1,000 l/min

• Standard flow rate (pressurisation 6→5 bar): 300 l/min

• Housing material: Die‑cast zinc

• Seal material: NBR

• Operating medium: Compressed air to ISO 8573‑1:2010 [7:4:4]

• Lubricated operation: possible (continued lubrication required if applied)

• Mounting type: Threaded (screw‑in)

• Mounting position: any

• Corrosion resistance class (CRC): 2 – moderate corrosion stress

• LABS (PWIS) conformity: VDMA24364‑B1/B2‑L

• Product weight: 65 g

• RoHS compliant

Compatibility:

• Suitable for direct mounting on cylinder ports with G1/8 female thread.

• Compatible with Festo SEU series quick exhaust valves (other port sizes: G1/4, G3/8, G1/2).

System Integration:

• Install directly on the cylinder port (between directional control valve and cylinder) for maximum exhaust speed.

• For double‑acting cylinders, use two valves or install on the return stroke side only.

• For detailed installation diagrams and pneumatic circuit schematics, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• SEU‑1/4 (G1/4, 1,100 l/min) – higher flow rate, same family

• SEU‑3/8 (G3/8, 2,280 l/min) – larger port size for higher flow

• SEU‑1/2 (G1/2, 4,020 l/min) – largest port size for main supply lines

• HSE mounting bracket (accessory) – for panel or wall mounting
