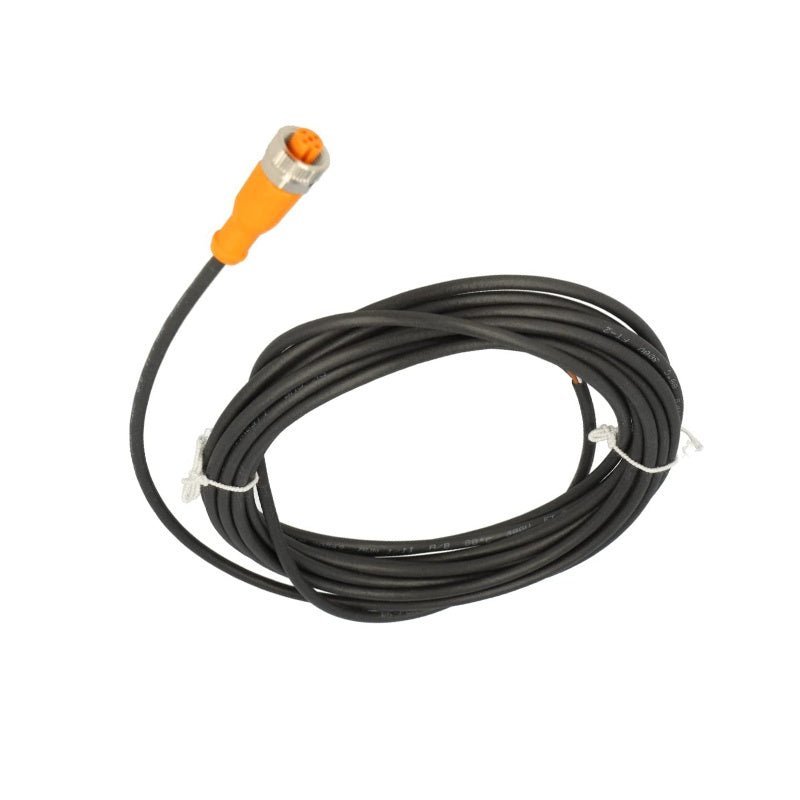

EVC002 Female M12 to Open End Sensor Actuator Cable 5m | IFM

The Original New IFM EVC002 Female M12 to Open End Sensor Actuator Cable is a 5‑metre single‑ended cordset designed for reliable signal and power transmission between M12‑equipped sensors/actuators and control systems in industrial automation environments. Featuring a straight M12 female connector on one end and flying leads on the other, this cable enables flexible integration with terminal blocks, PLCs, or other devices. Its robust PUR cable jacket and M12 coupling nut provide resistance to oils and coolants, permanent sealing even without tools, and high vibration resistance for harsh industrial conditions.

Core Engineering Highlights:
M12 female straight connector | 4‑pin A‑coded | 5m PUR halogen‑free cable | 4 x 0.34 mm² conductors | 4A current rating | <250V AC / <300V DC | IP65 / IP67 / IP68 / IP69K | –25°C to +90°C operating temperature | Gold‑plated contacts | Drag chain suitable

Key Features:

• Original New IFM EVC002 cordset

• Straight M12 female connector (4‑pin, A‑coded)

• 5‑metre black PUR halogen‑free cable with 4 x 0.34 mm² conductors (42 x Ø 0.1 mm)

• Flying leads (bare wire) on the open end for flexible wiring

• Gold‑plated contacts for reliable signal transmission

• Resistant to oils and coolants for longevity in machine environments

• Vibration and shock resistant thanks to coupling ring with locking mechanism

• Mechanical end stop protects O‑ring from destruction

• IP65, IP67, IP68, IP69K protection ratings

• Drag chain suitable with high bending cycle rating ( > 5 million cycles)

• Free from silicone and halogen‑free

Applications:

• Connecting M12 sensors and actuators to control systems

• Signal and power transmission in factory automation

• Industrial networking in harsh environments

• Machine tool and conveyor systems

• Automotive and food processing equipment

• Drag chain installations and moving cable applications

Technical Specifications:

• Catalog Number: EVC002

• Product Type: Sensor Actuator Cable / Female Cordset

• Cable Length: 5 m (16.40 ft)

• 1st Connector: M12 female socket, straight, A‑coded

• 1st Connector Gender: Female

• 1st Connector Number of Positions: 4

• 2nd Connector Type: Wire leads (flying leads)

• Cable Type: Round

• Cable Material: PUR (polyurethane), halogen‑free, black

• Cable Diameter: 4.3 mm

• Conductor Size: 4 x 0.34 mm² (42 x Ø 0.1 mm)

• Max. Current Load: 4 A

• Operating Voltage: <250 V AC / <300 V DC

• Protection Class: II

• Protection Rating: IP65, IP67, IP68, IP69K

• Ambient Temperature (Fixed): –25°C to +90°C (cULus: up to 75°C)

• Ambient Temperature (Moving): –25°C to +90°C (cULus: up to 75°C)

• Storage Temperature: –25°C to +55°C

• Storage Humidity: 10–100%

• Drag Chain Suitability: Yes

• Minimum Bending Radius (Flexible): 10 x cable diameter

• Maximum Travel Speed: 3.3 m/s (horizontal length 5m, acceleration 5 m/s²)

• Bending Cycles: > 5 million

• Torsional Strain: ±180°/m

• Coupling Nut Material: Brass, nickel‑plated

• Housing Material: TPU, orange

• Sealing Material: FKM

• Contact Material: Gold‑plated

• Tightening Torque: 0.6–1.5 Nm

• Weight: 156.2 g

• Dimensions (W x H x D): 15.5 x 15.5 x 45 mm

• Packaging Unit: 1 piece

• Certifications: CE, cULus

• UPC: 612598350612

System Compatibility:

• IFM sensors and actuators with M12 female connectors

• M12 male ports on industrial sensors, actuators, and fieldbus devices

• Terminal blocks, PLCs, and junction boxes via flying leads

• M12 A‑coded standard (EN 61076‑2‑101)
