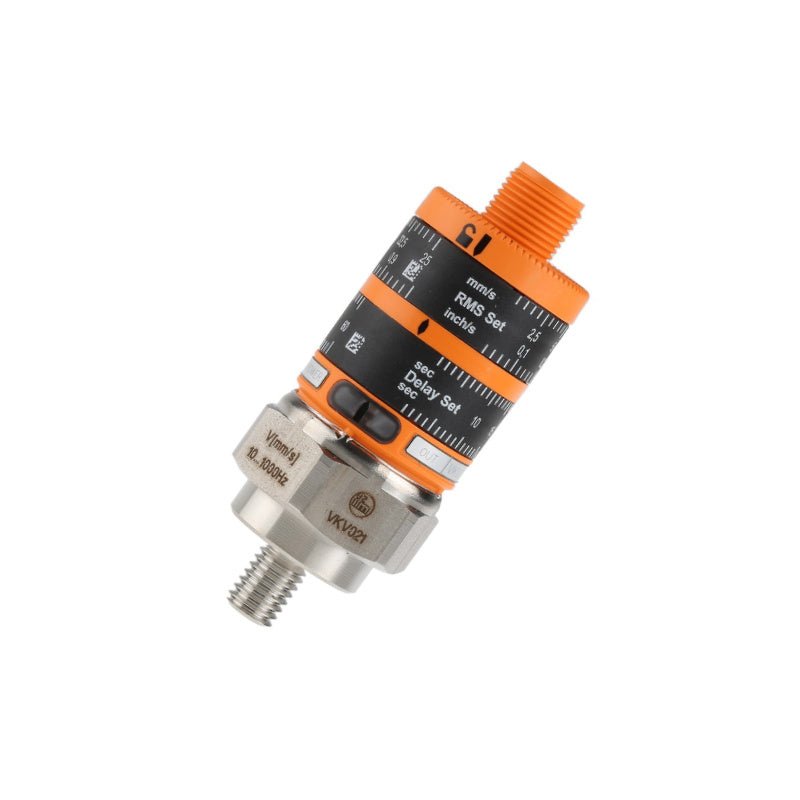

VKV021 Vibration Monitor DIN ISO 10816 0-25mm/s | IFM

The Original New IFM VKV021 Vibration Monitor is a permanent vibration monitoring device designed for predictive maintenance and machine health assessment in industrial automation systems. It measures the overall vibration velocity according to DIN ISO 10816 and provides both a switching output with adjustable switch point and response delay, and a 4-20 mA analog current output proportional to vibration velocity. Simple switch point setting by means of two setting rings allows intuitive on-site configuration without additional software or programming tools.

Core Engineering Highlights:
DIN ISO 10816 compliant vibration monitoring | 0-25 mm/s (RMS) measuring range | 10-1000 Hz frequency range | 4-20 mA analog output + 1 PNP switching output | 18-32V DC operating voltage | IP67 protection | MEMS sensor technology | M12 connector | –25°C to +80°C operating temperature

Key Features:

• Original New IFM VKV021 vibration monitor

• Reliable permanent monitoring of the overall vibration to DIN ISO 10816

• Switching output with adjustable switch point and response delay (1-60 seconds)

• Simple switch point setting by means of two setting rings allowing optimum reading

• Analog current output (4-20 mA) for vibration velocity

• Clearly visible LEDs for indicating switching status (yellow) and operation (green)

• MEMS (Microelectromechanical system) sensor technology

• Compact design for easy integration into existing machinery

• IP67 protection rating for harsh industrial environments

• PBT, PC, FKM, and stainless steel (1.4404/316L) housing materials

• M12 connector with A-coding for simple electrical connection

• 1-axis vibration measurement

• Overload and short-circuit protection (pulsed)

Applications:

• Predictive maintenance and machine health assessment

• Pump, fan, and compressor vibration monitoring

• Bearing and gearbox condition monitoring

• Machine tool vibration monitoring

• Rotating equipment vibration monitoring

• Industrial machinery protection systems

• Condition monitoring systems (CMS)

• General vibration monitoring to DIN ISO 10816

Technical Specifications:

• Catalog Number: VKV021

• Product Type: Vibration monitor

• Measuring Range: 0-25 mm/s (RMS)

• Frequency Range: 10-1000 Hz

• Measurement Axes: 1

• Application: Vibration monitor to DIN ISO 10816

• Operating Voltage: 18-32V DC

• Current Consumption: < 50 mA

• Sensor Type: MEMS (microelectromechanical system)

• Output Signal: Switching signal + analog signal

• Electrical Design: PNP

• Digital Outputs: 1 (normally closed)

• Switching Output Current: 500 mA max.

• Max. Voltage Drop: 2V DC

• Analog Output: 4-20 mA

• Max. Load (Analog): 500 Ω

• Response Time: 1-60 seconds (adjustable)

• Measuring Error: < ± 3% of final value

• Linearity Deviation: 0.25%

• Operating Temperature: –25°C to +80°C (UL application: <80°C)

• Storage Temperature: –25°C to +80°C

• Protection Rating: IP67

• Shock Resistance: 400g

• MTTF: 510 years

• Housing Material: PBT; PC; FKM; stainless steel (1.4404/316L)

• Mounting Type: M8 x 1.25

• Tightening Torque: 15 Nm

• Weight: 113.5g

• Connection: 1 x M12 connector, A-coding

• Display: LEDs: Power (green), Switching status (yellow)

• Pack Quantity: 1 piece

• Certifications: CE, cULus

EMC Approvals:

• EN 61000-4-2 ESD: 4 kV CD / 8 kV AD

• EN 61000-4-3 HF radiated: 10 V/m

• EN 61000-4-4 Burst: 2 kV

• EN 61000-4-6 HF conducted: 10 V

System Compatibility:

• PLCs and controllers via PNP digital input (switching output)

• PLC analog input modules or SCADA systems via 4-20 mA analog output

• Condition monitoring systems (CMS)

• M12 A-coded connector standard

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• VKV022 – Vibration monitor, alternative configuration

• VKV021-CAL – Calibration certificate for VKV021

• M12 connector cables – Various lengths and configurations for sensor connection
