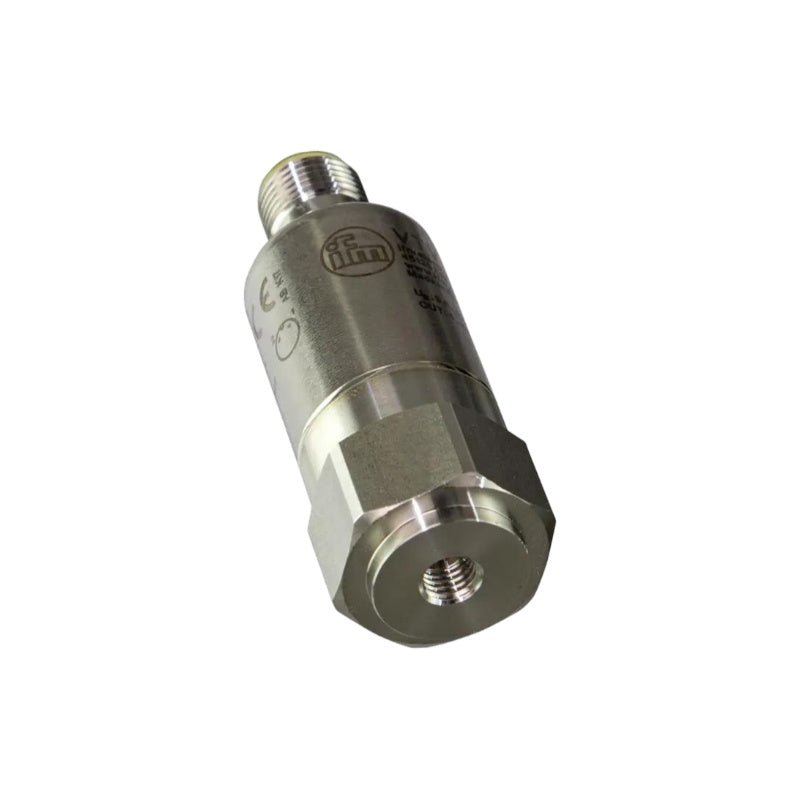

IFM VTV121 Vibration Transmitter 0-50mm/s 4-20mA IP69K MEMS

Overview
The IFM VTV121 is a high‑precision vibration transmitter designed for reliable permanent monitoring of overall vibration according to DIN ISO 10816. Utilizing MEMS (microelectromechanical system) technology, this 2‑wire device continuously measures RMS vibration velocity across a frequency range of 10…1000 Hz, making it suitable for predictive maintenance and condition monitoring of rotating machinery such as motors, pumps, fans, and compressors. The precise linearized 4…20 mA analog output provides seamless integration into PLCs, SCADA, or frequency converters for real‑time vibration monitoring. Housed in a compact stainless steel (316L/1.4404) cylindrical enclosure with triple‑rated IP67, IP68, and IP69K protection, the VTV121 withstands dust, continuous immersion, and high‑pressure, high‑temperature washdowns. With a wide ambient temperature range of -30…125 °C, shock resistance up to 500 g, and an MTTF of 868 years, this transmitter is built for long‑term reliability in demanding industrial applications including food processing, machine tools, and outdoor installations.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine IFM component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• DIN ISO 10816 compliant vibration monitoring – Reliable permanent monitoring of overall vibration according to DIN ISO 10816 standard, enabling predictive maintenance and early fault detection for rotating machinery.

• Two‑wire technology with precise linearized analog output – 2‑wire loop‑powered design (operating voltage 9.6…32 V DC) with precise linearized 4…20 mA analog output proportional to RMS vibration velocity, simplifying wiring and reducing installation costs.

• Wide measurement range with high accuracy – Measures RMS vibration velocity from 0…50 mm/s (0…25 mm/s alternative variant) across 10…1000 Hz frequency range, with measuring error < ±3 %, repeatability < 0.5 %, and linearity deviation 0.25 %, ensuring precise and consistent vibration data for critical monitoring applications.

• Triple‑rated environmental protection (IP67/IP68/IP69K) – Highest protection ratings for dust‑tight enclosure, continuous immersion, and resistance to high‑pressure, high‑temperature washdowns, making it ideal for food processing, outdoor installations, and harsh industrial environments.

• Extreme temperature and shock resistance – Operates reliably from -30…125 °C ambient temperature (UL applications: < 70 °C) with shock resistance up to 500 g (1 ms) and vibration resistance up to 20 g (10…3000 Hz) per DIN EN 60068‑2‑6.

• Robust stainless steel housing (316L/1.4404) – Rugged stainless steel housing resists corrosion and mechanical damage, with a weight of only 124 g and compact dimensions (22 mm diameter) for easy installation in space‑constrained applications.

• MEMS sensing technology for long‑term stability – MEMS (microelectromechanical system) sensor delivers excellent long‑term stability and reliability, with MTTF of 868 years ensuring uninterrupted operation and minimized downtime.

• M12 A‑coded connector for secure electrical connection – Standard M12 A‑coded connector with set screw mounting (tightening torque 8 Nm) enables quick, secure electrical connection in industrial environments.

• High reliability with global certifications – CE, UL, EAC certified, RoHS compliant, and tested to EN 61000‑6‑2 and EN 61000‑6‑3 EMC standards, ensuring suitability for international applications.

Technical Specifications

Applications

• Rotating machinery monitoring: Continuous vibration monitoring of motors, pumps, compressors, fans, blowers, turbines, and gearboxes for predictive maintenance and early fault detection (imbalance, misalignment, bearing wear).

• Industrial automation: Integration into PLCs and control systems for real‑time vibration velocity feedback in automated production lines.

• Food and beverage industry: High‑pressure washdown environments requiring IP69K protection and corrosion‑resistant stainless steel housing.

• HVAC systems: Monitoring vibration levels in air handling units, chillers, and large industrial fans to prevent unexpected failures.

• Wind turbines and power generation: Permanent vibration monitoring of generators, gearboxes, and main bearings in renewable energy applications.

• Machine tools and manufacturing: Condition monitoring of CNC machines, presses, and conveyor systems to optimize maintenance schedules and reduce downtime.

• Outdoor and harsh environment installations: Dust‑tight IP67/IP68 ratings ensure reliable operation in mining, aggregate processing, and outdoor industrial equipment.

Package Includes

• 1 × IFM VTV121 vibration transmitter

• Set screw (pre‑installed)

• Operating instructions
