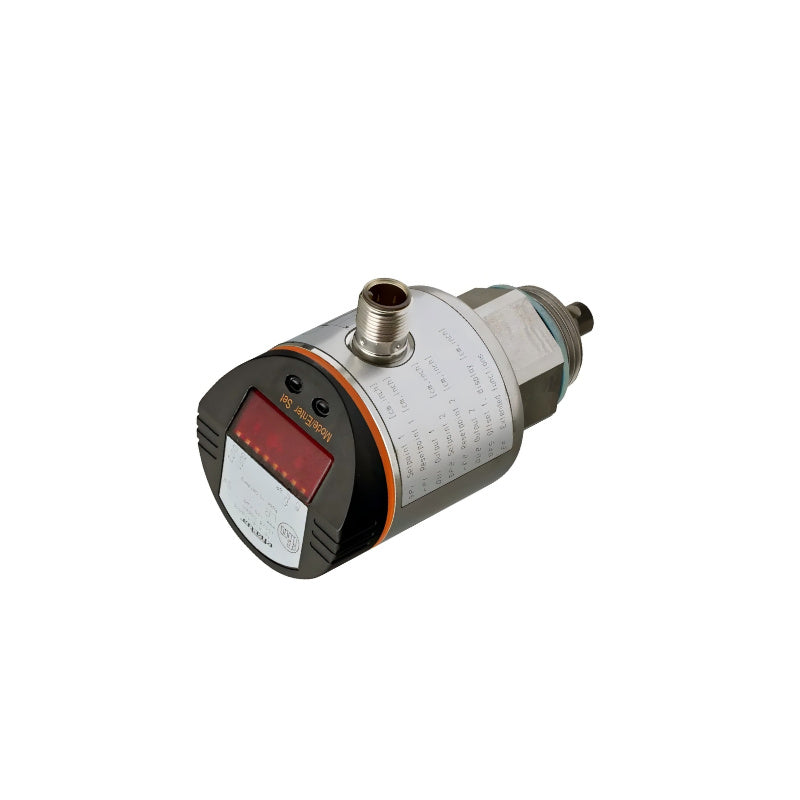

• Original New IFM LR3000 continuous level sensor guided wave radar G3/4 front view
  • PLC ERA warehouse stocked with Original New IFM LR3000 and industrial automation modules ready for global shipping
1 2

IFM

LR3000 Continuous Level Sensor Guided Wave Radar G3/4 PNP | IFM

LR3000 Continuous Level Sensor Guided Wave Radar G3/4 PNP | IFM

23 في المخزون

$287.00 USD
$287.00 USD
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.

The Original New IFM LR3000 Continuous Level Sensor is a guided wave radar (GWR) level sensor designed for reliable continuous level monitoring in tanks and containers across a wide range of industrial applications. Featuring a modular design with a 4-digit LED display, this sensor is suitable for water, oils, coolants, and other liquids. The probe length can be cut to length for application flexibility, and the sensor supports convenient operation via buttons or IO-Link parameter setting.

Core Engineering Highlights:
Guided wave radar (GWR) measurement principle | Probe length adjustable from 100–1600 mm (field-cuttable) | 1 PNP switching output + 1 scalable analog output (4‑20 mA / 0‑10 V) | IO‑Link communication | 4‑digit LED display with programming buttons | G3/4 external thread process connection | 16 bar pressure rating | IP67 protection | 18‑30 V DC | –25°C to +80°C process temperature | Gold‑plated contacts

Key Features:

  • Original New IFM LR3000 sensor (LR0000B-BR34AMPKG/US)

  • Guided wave radar measurement principle for precise level detection in liquids

  • For reliable level control in tanks and containers

  • Suitable for water, oils, and coolants

  • Modular system consisting of evaluation unit and probe

  • Probes may be cut to length for application flexibility

  • Clearly visible 4‑digit LED display for direct level indication

  • Convenient operation via buttons or parameter setting via IO‑Link

  • 1 PNP switching output (NO/NC configurable) + 1 analog output (4‑20 mA or 0‑10 V, scalable)

  • Gold‑plated contacts for reliable signal transmission

  • IP67 protection for harsh industrial environments

  • G3/4 external thread process connection

  • Dielectric constant compatibility: ≥ 1.8 (coaxial pipe required for 1.8–5, e.g., oils)

Applications:

  • Continuous level monitoring in tanks and containers for water, oils, and coolants

  • Liquid level control in industrial automation and process applications

  • Storage tank level monitoring in manufacturing and processing facilities

  • Hydraulic fluid and coolant level monitoring in machinery and equipment

  • Water treatment and wastewater applications

  • OEM machine building and panel integration

Technical Specifications:



Attribute Specification
Catalog Number LR3000
Order Code LR0000B-BR34AMPKG/US
Product Type Continuous level sensor (guided wave radar)
Measuring Principle Guided wave radar
Probe Length (L) 100–1600 mm (field‑cuttable)
Process Connection G3/4 external thread
Active Range (A) L-40 mm (L-60 for oil‑based media)
Inactive Range (I1/I2) 30 / 10 mm (30 / 30 for oil‑based media)
Dielectric Constant ≥ 1.8
Switching Point (SP) 15...L-30 mm (35...L-30 for oil‑based media)
Reset Point (rP) 10...L-35 mm (30...L-35 for oil‑based media)
Repeatability ±5 mm
Measuring Error ±7 mm
Resolution 1 mm


Attribute Specification
Operating Voltage 18–30 V DC
Current Consumption < 30 mA
Protection Class III
Reverse Polarity Protection Yes
Power-on Delay < 3 s


Attribute Specification
Total Outputs 2
Output Signal Switching signal; Analog signal; IO‑Link
Electrical Design PNP
Digital Outputs 1 (NO/NC configurable)
Switching Output Current 200 mA
Voltage Drop (Max) 2.5 V
Analog Outputs 1
Analog Current Output 4–20 mA, invertible, scalable
Max. Load (Current) 500 Ω
Analog Voltage Output 0–10 V, invertible, scalable
Min. Load Resistance (Voltage) 2000 Ω
Short-circuit Protection Yes (thermal, pulsed)
Overload Protection Yes


Attribute Specification
Process Temperature –25°C to +80°C (90°C for <1h)
Ambient Temperature –25°C to +60°C
Storage Temperature –40°C to +80°C
Pressure Rating 16 bar
Vacuum Resistance –1000 mbar
Protection Rating IP67
Housing Material Stainless steel (1.4301/304; 1.4404/316L); PBT; PC; PEI; TPE/V
Wetted Parts Stainless steel (1.4305/303; 1.4435/316L); PTFE; FKM
Weight 378.4 g
Dimensions (⌀ x L) 50 x 99 mm
Electrical Connection M12 connector, A‑coding
Display 4‑digit alphanumeric LED
IO‑Link Yes

System Compatibility:

  • Compatible with PLCs via PNP digital input (1 channel) and analog input (4‑20 mA or 0‑10 V)

  • IO‑Link masters for advanced parameterization and diagnostics

  • M12 A‑coded connection cables (5‑pin)

  • 18‑30 V DC power supplies

  • G3/4 process connections

  • IFM mounting brackets and accessories

Related Products:

  • EVC001 – M12 female cordset, 2m

  • EVC002 – M12 female cordset, 5m

  • EVC003 – M12 female cordset, 10m

  • Coaxial tubes – For media with dielectric constant 1.8–5 (e.g., oils)

  • Welding adapters – For hygienic and sanitary installations

  • LR3020 – Version with extended temperature range for high process temperatures
