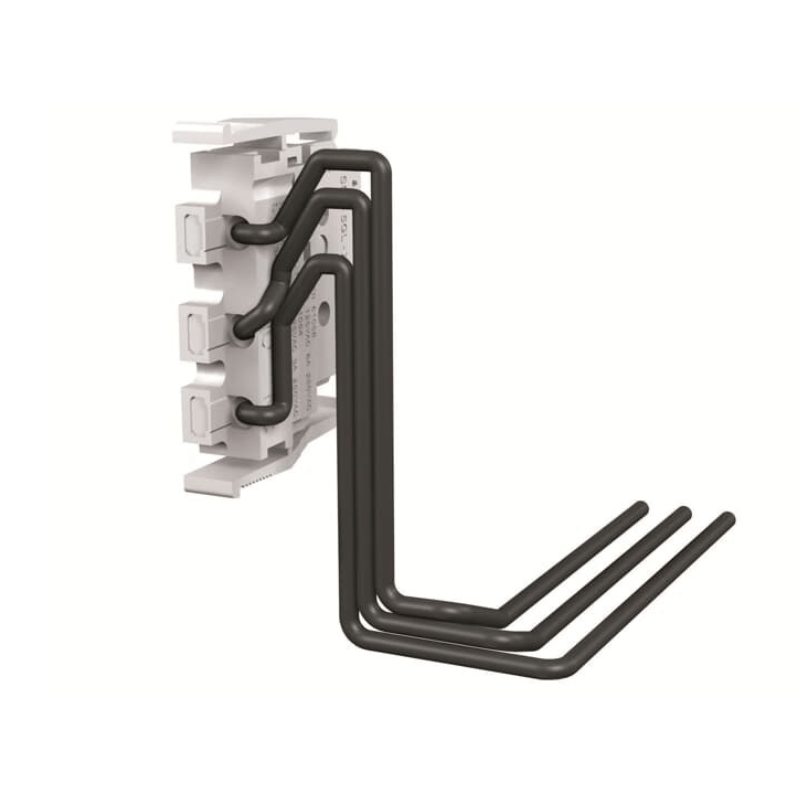

AUX-C 2Q+2SY+1S51 Auxiliary Contact Block for XT2-XT4 | ABB

The Original New ABB 1SDA066438R1 AUX-C 2Q+2SY+1S51 Auxiliary Contact Block is a multi‑function signalling and auxiliary contact accessory designed for ABB XT2 and XT4 series moulded case circuit breakers (MCCBs) in fixed or plug‑in mounting configurations. This comprehensive contact block combines 2 changeover contacts (2Q) for open/closed status indication, 2 signalling contacts (2SY) for tripped indication, and 1 additional open contact (1S51) for fault signalling — all in a single compact unit. Rated at 250V AC/DC with a 4A operational current, it enables comprehensive status monitoring and control panel integration for industrial automation, motor control centres, and power distribution applications.

Core Engineering Highlights:
Contact configuration: 2Q + 2SY + 1S51 (5 total contacts)| Rated voltage: 250V AC/DC| Rated operational current (Ie): 4A at AC-15, 230V| Compatible with ABB XT2 and XT4 MCCBs (fixed/plug-in)| Spring clamp connection| Integrated mounting| Net weight: 0.177 kg| Made in: Germany| Conforms to IEC 60947-2, UL 489, CE, RoHS, REACH

Key Features:

• Original New ABB 1SDA066438R1 auxiliary contact block

• Contact configuration: 2 changeover contacts (open‑closed status) + 2 changeover contacts for tripped indication + 1 open contact for fault signalling

• Rated voltage: 250V AC/DC

• Rated operational current: 4A at AC-15, 230V

• Suitable for fixed and plug‑in mounting configurations

• Spring clamp connection for secure, tool‑free wiring

• Comprehensive status monitoring: open/closed, tripped, and fault signalling

• Compact design: 5 contacts in a single unit reduces panel space and wiring complexity

• For use with ABB SACE Tmax XT2 and XT4 MCCBs

• Conforms to IEC 60947-2, UL 489, CE, RoHS, REACH

• Wired version with pre‑assembled cables for simplified installation

Applications:

• Status monitoring and remote signalling in industrial control panels with ABB XT2 or XT4 MCCBs

• Early make/break signalling for protection relay coordination and interlocking schemes

• Alarm output wiring for SCADA, PLC, and building management systems

• Fixed and plug‑in switchboard configurations in commercial and industrial power distribution

• Motor control centres and industrial automation assemblies requiring multi‑function auxiliary contacts

Technical Specifications:

System Compatibility:

• Compatible with ABB SACE Tmax XT2 and XT4 moulded case circuit breakers in fixed or plug‑in mounting configurations

• Suitable for use with XT1, XT2, XT3, XT4 series (contact configuration compatibility varies)

• Wired version with pre‑assembled cables

• Spring clamp connection enables rapid field wiring

Wiring & Contact Configuration:

• Q (Changeover contact): Open/closed status indication (2 contacts)

• SY (Signalling contact): Tripped indication contact (2 contacts)

• S51 (Contact open): Fault/early signalling contact (1 contact)

Related Products:

• 1SDA066431R1 – AUX-C 1Q+1SY 250V AC/DC XT1-XT4 F/P

• 1SDA066433R1 – AUX-C 2Q+1SY 250VAC/DC XT1-XT4 F/P

• 1SDA066434R1 – AUX-C 3Q+1SY 250VAC/DC XT2-XT4 F/P

• 1SDA066436R1 – AUX-C 3Q+2SY 250VAC/DC XT2-XT4 F/P

• 1SDA066440R1 – AUX-C 2Q 400V AC XT2-XT4 F/P

• 1SDA066444R1 – AUX-C 1Q+1SY 400Vac XT2-XT4 F/P
