PSR60-600-70 Softstarter 60A 30kW 208-600V AC | ABB

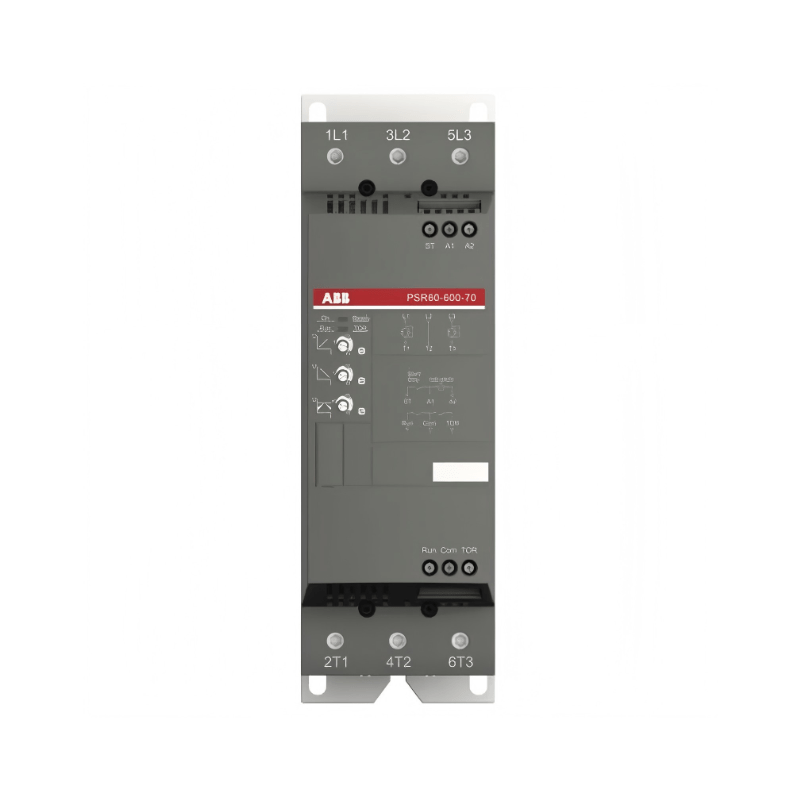

The Original New ABB PSR60-600-70 is a compact, basic-functionality softstarter from the ABB PSR series, designed to provide smooth, controlled motor starting and stopping for small three-phase motors. Rated at 60 A with an operational voltage range of 208…600 V AC, it is suitable for motors up to 30 kW at 400 V. Featuring a built-in bypass contactor for energy savings and easy installation, the PSR60-600-70 reduces mechanical stress on driven equipment and extends motor life. Three front-panel potentiometers allow straightforward adjustment of start/stop ramps and initial voltage, making it an ideal solution for pumps, fans, compressors, and conveyors.

Core Engineering Highlights:
60 A rated continuous current | 208–600 V AC operational voltage | 30 kW at 400 V / 37 kW at 500 V| Two-phase control with voltage ramp| Built-in bypass contactor| 1–20 s start ramp / 0–20 s stop ramp| IP10 enclosure| DIN rail mounting (180 mm width)| 100–240 V AC control voltage| –25°C to +60°C ambient temperature

Key Features:

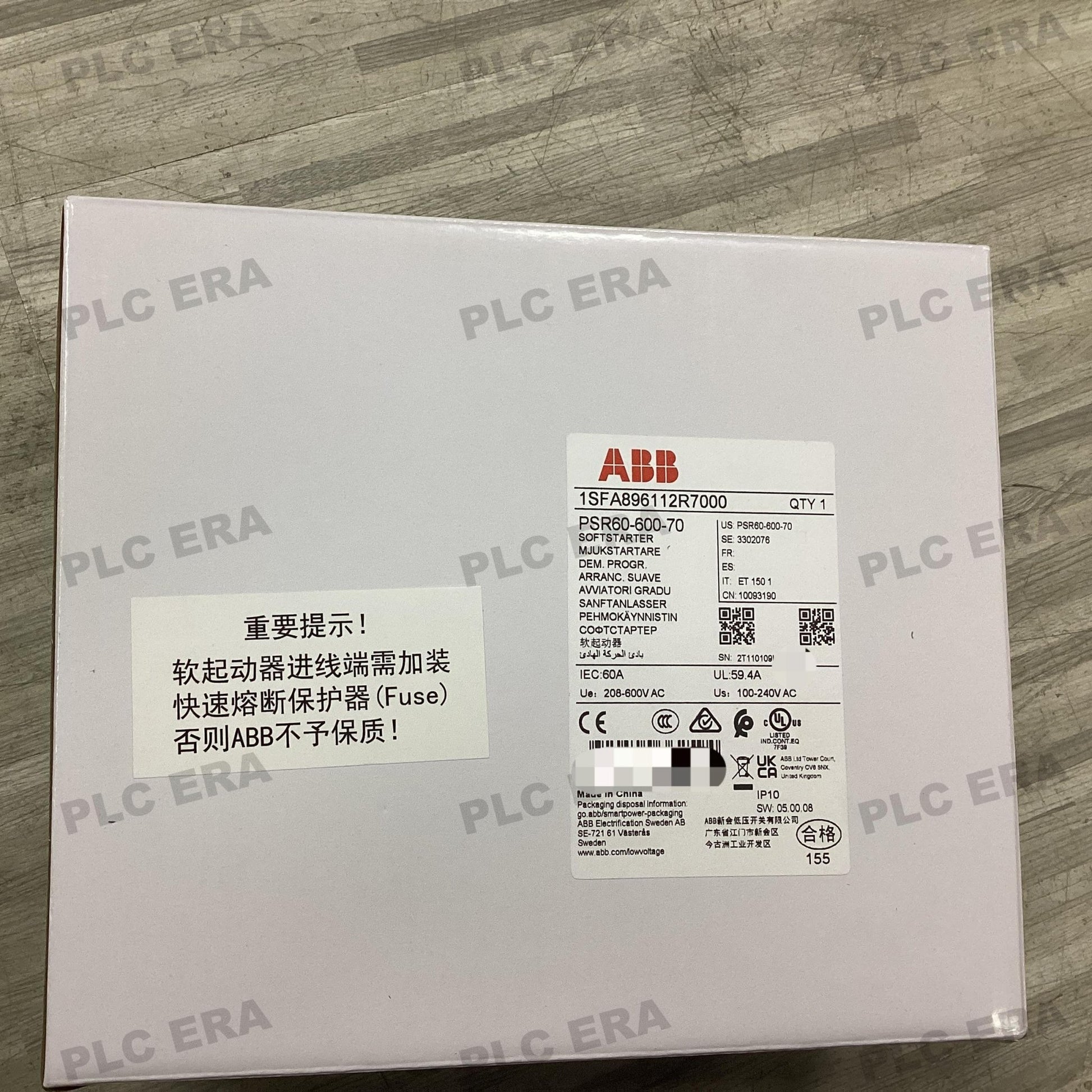

• Original New ABB PSR60-600-70 softstarter (1SFA896112R7000)

• Two-phase control for smooth soft start and soft stop via voltage ramp

• Built-in bypass contactor reduces energy loss at full speed and simplifies installation

• Three front-panel potentiometers for easy setting of start ramp (1–20 s), stop ramp (0–20 s), and initial voltage

• RUN and TOR (Top Of Ramp) signalling via relay outputs (NO)

• Wide operational voltage range: 208–600 V AC

• Wide control voltage range: 100–240 V AC, 50/60 Hz

• Compact design: 180 mm width, suitable for DIN rail mounting

• Wide ambient temperature range: –25°C to +60°C

• Up to 100 starts per hour

• Optional Fieldbus communication via external adaptor and FieldBus plug (Profibus, Modbus, DeviceNet, CANopen)

• Mechanical connection kits available for easy combination with ABB manual motor starters (MMS)

Applications:

• Pumps – centrifugal and submersible pumps

• Fans and blowers

• Compressors

• Conveyors and material handling systems

• General purpose small three-phase motor applications

• HVAC systems and building automation

Technical Specifications:

System Compatibility:

• Compatible with ABB manual motor starters (MMS) via mechanical connection kits

• Optional Fieldbus communication via FieldBus plug and external adaptor (Profibus, Modbus, DeviceNet, CANopen)

• Recommended overload protection: MS495 45–63 A

• Suitable for three-phase motors with nominal currents from 3–105 A

• DIN rail mounting (PSR3–PSR105 models)

Related Products:

• PSR-FAN60-105A – Cooling fan for PSR60–PSR105 softstarters

• MS495 – Manual motor starter, 45–63 A (recommended overload protection)

• PS-FBPA – FieldBus plug kit for PSR(C), PSE, and PSTX softstarters

• PDO22-FBP – FieldBus connector accessory for PSR and PSE

• PSR105-MS495 – Mounting kit for PSR105 softstarters

• Mechanical connection kits – For combination with ABB manual motor starters
