S201-C2 1P 2A C-Curve Miniature Circuit Breaker 6kA | ABB

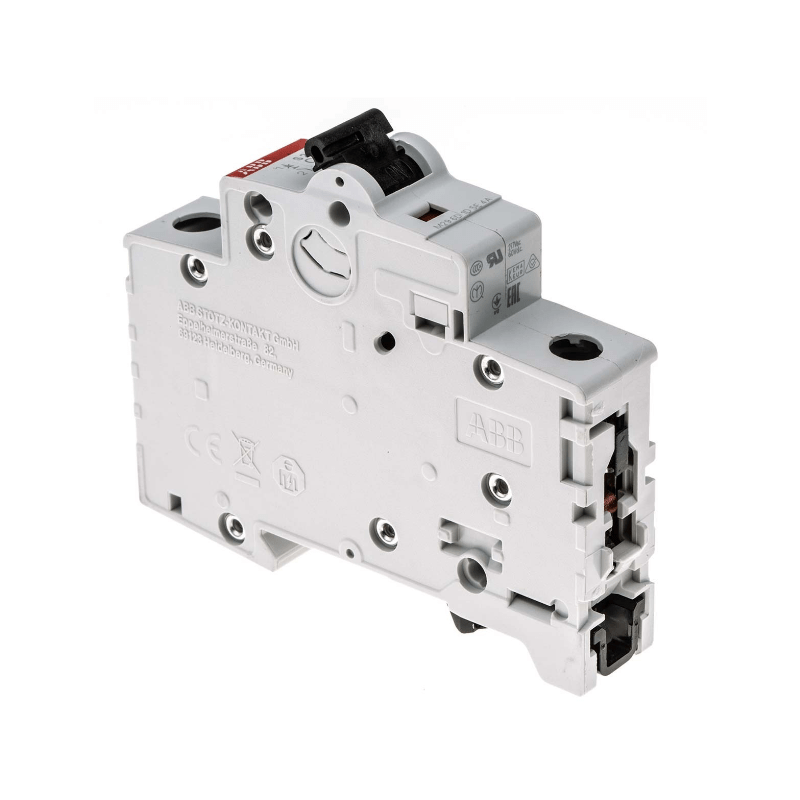

The Original New ABB S201-C2 is a 1-pole miniature circuit breaker (MCB) from the System pro M compact S200 series. It is rated at 2 A with a C tripping characteristic and a breaking capacity of 6 kA at 230/400 V AC. This current-limiting device provides reliable protection against overloads and short circuits for final circuits in residential, commercial, and industrial electrical installations. It features two independent tripping mechanisms: a thermal mechanism for overload protection and an electromagnetic mechanism for short-circuit protection. Compliant with IEC/EN 60898-1 and IEC/EN 60947-2, the S201-C2 offers robust performance in a compact 17.5 mm width.

Core Engineering Highlights:
Rated current 2 A | 1-pole | C tripping characteristic | 6 kA breaking capacity (Icn) at 230/400 V AC | 480Y/277 V AC rated voltage | 4 kV rated impulse withstand voltage (Uimp) | Complies with IEC/EN 60898-1 and IEC/EN 60947-2 | DIN rail mountable | 17.5 mm width per pole (1 module)

Key Features:

• Original New ABB S201-C2 MCB

• 2 A rated current with C-curve characteristic, suited for circuits with moderate inrush currents (e.g., inductive loads, small motors)

• 6 kA breaking capacity (Icn) as per IEC/EN 60898-1; 10 kA ultimate breaking capacity (Icu) as per IEC/EN 60947-2

• Current limiting design for enhanced protection of downstream equipment

• Thermal-magnetic trip unit for overload and short-circuit protection

• 1-pole configuration for single-phase circuits

• Front-facing status indicator for clear visual identification of ON/OFF state

• Suitable for DIN rail mounting (35 mm)

• Compliant with major international standards: IEC/EN 60898-1, IEC/EN 60947-2

• Compact 1-module width (17.5 mm) for space-efficient panel design

Applications:

• Protection of final circuits in residential and commercial electrical distribution boards

• Overcurrent protection for lighting, socket outlets, and general-purpose circuits

• Protection of inductive loads such as small motors, transformers, and coils

• Industrial control panels and distribution boards

• HVAC equipment and building automation systems

• Branch circuit protection in machinery and equipment

Technical Specifications:

System Compatibility:

• Compatible with standard 35 mm DIN rail mounting systems

• Suitable for use with ABB System pro M compact S200 series accessories, including auxiliary contacts, shunt trips, and busbars

• Compatible with standard electrical distribution boards and panelboards

Related Products:

• S201-C0.5 – 0.5 A, 1P, C-curve

• S201-C1 – 1 A, 1P, C-curve

• S201-C2 – 2 A, 1P, C-curve (current model)

• S201-C4 – 4 A, 1P, C-curve

• S201-C6 – 6 A, 1P, C-curve

• S201-B2 – 2 A, 1P, B-curve (for resistive loads)

• S202-C2 – 2 A, 2P, C-curve

• S2C-H6R – Auxiliary contact for S200 series

• S2C-D – Shunt trip for S200 series

• PS2/1P – Busbar for S200 series
