S201-C6 Miniature Circuit Breaker 1P 6A C-Curve 6kA | ABB

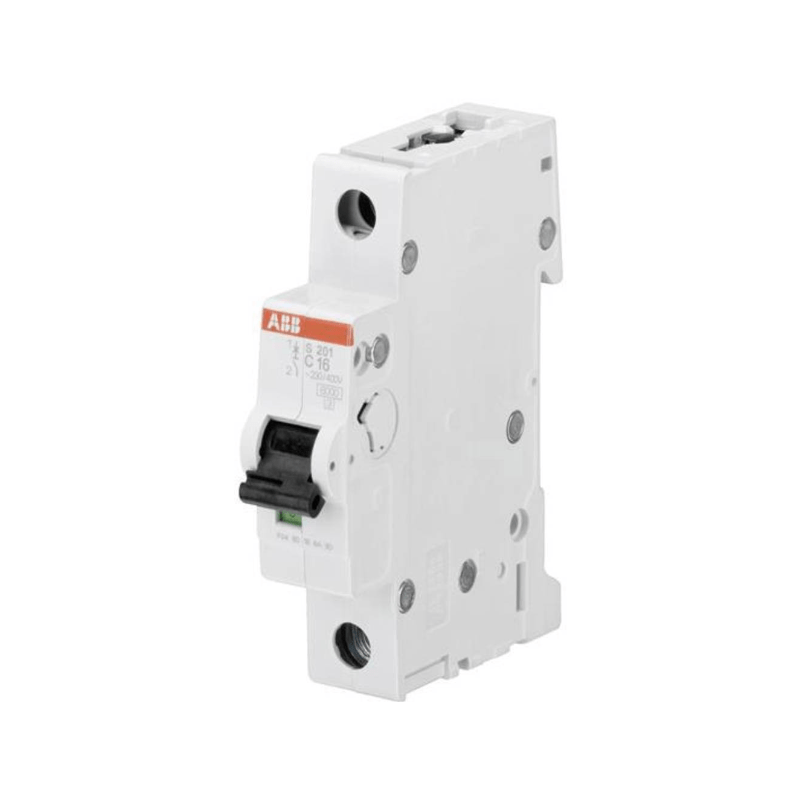

The Original New ABB S201-C6 (2CDS251001R0064) is a 1-pole miniature circuit breaker (MCB) from the System Pro M Compact S200 series, designed to provide reliable overcurrent and short-circuit protection for electrical circuits in residential, commercial, and industrial applications. Rated at 6 A with a C-curve tripping characteristic and 6 kA breaking capacity at 230/400 V AC, this current-limiting MCB features both thermal and electromechanical tripping mechanisms to safeguard against overloads and short circuits. All S200 series MCBs comply with IEC/EN 60898‑1, IEC/EN 60947‑2, and UL1077, allowing use across residential, commercial, and industrial applications.

Core Engineering Highlights:
1-pole (1P) configuration | 6 A rated current | C‑curve tripping characteristic (5–10 × In) | 6 kA breaking capacity at 230/400 V AC | 253 V AC / 72 V DC rated voltage | Current‑limiting design | Thermal and electromechanical tripping mechanisms | DIN rail mountable (35 mm) | IP20 protection | 20,000 electrical cycles | 17.5 mm width | 69 mm depth | 2.8 N·m terminal torque | 2 W power loss per pole

Key Features:

• Original New ABB S201-C6 MCB (2CDS251001R0064)

• 1-pole configuration for single-phase circuit protection

• C-curve tripping characteristic – trips instantaneously at 5 to 10 times rated current

• 6 kA breaking capacity at 230/400 V AC for reliable short-circuit protection

• Rated ultimate short-circuit breaking capacity (Icu): 20 kA at 230 V AC / 10 kA at 400 V AC

• Rated service short-circuit breaking capacity (Ics): 15 kA at 230 V AC / 7.5 kA at 400 V AC

• 6 A rated current for branch circuit and equipment protection

• Current-limiting design reduces fault current stress on downstream equipment

• Dual tripping mechanisms: thermal for overload protection, electromechanical for short-circuit protection

• Clear red/green contact position indication (real CPI) for status visibility

• Unique patented twin terminal with captive screws, finger-proof (IP20)

• Busbar slot in the back for best visibility during installation

• DIN rail mounting (35 mm) for easy installation in distribution boards

• Wide operating temperature range: –25°C to +55°C

• 20,000 electrical and mechanical cycles for long‑term reliability

• Energy Limiting Class 3 for effective fault current limitation

• 17.5 mm width (1 module) saves panel space

• Compatible with bottom‑fitting auxiliary contacts and accessories

Applications:

• Industrial control panels and automation systems

• Commercial and residential electrical distribution

• Protection of lighting circuits, socket outlets, and small motors

• HVAC equipment and building management systems

• Machine control circuits and OEM equipment

• Marine and industrial applications requiring high rated voltage

• Power transmission and distribution systems

Technical Specifications:

System Compatibility:

• Compatible with ABB System Pro M Compact S200 series accessories including auxiliary contacts, shunt trips, undervoltage releases, and busbars

• Bottom‑fitting auxiliary contact S2C‑H11L for space‑saving installation

• Suitable for use with ABB distribution boards and switchgear

• Compatible with standard 35 mm DIN rail mounting systems (TH35‑7.5 / TH35‑15)

• Meets IEC/EN 60898‑1 for residential/commercial installations, IEC/EN 60947‑2 for industrial applications, and UL1077

Related Products:

• S2C‑H11L – Auxiliary contact for S200 series (bottom‑fitting, 1 NO + 1 NC)

• S201‑C10 – 10 A version (higher current rating)

• S201‑C4 – 4 A version (lower current rating)

• S202‑C6 – 2‑pole version

• S203‑C6 – 3‑pole version

• S204‑C6 – 4‑pole version
