S202-C6 Miniature Circuit Breaker 2P 6A C-Curve 6kA | ABB

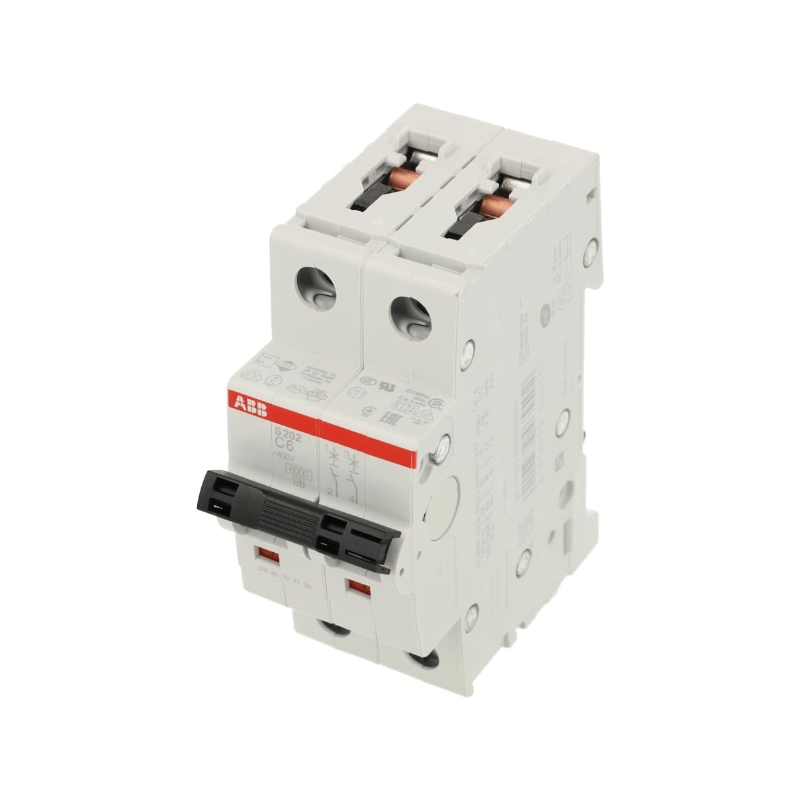

The Original New ABB S202-C6 (2CDS252001R0064) is a 2‑pole miniature circuit breaker (MCB) from the System Pro M Compact S200 series, designed to provide reliable overcurrent and short‑circuit protection for electrical circuits in residential, commercial, and industrial applications. Rated at 6 A with a C‑curve tripping characteristic and 6 kA breaking capacity at 400 V AC, this current‑limiting MCB features both thermal and electromechanical tripping mechanisms to safeguard against overloads and short circuits.

Core Engineering Highlights:
2-pole (2P) configuration | 6 A rated current | C‑curve tripping characteristic (5–10× In) | 6 kA breaking capacity at 400 V AC | 400 V AC rated voltage | Current‑limiting design | Thermal and electromechanical tripping mechanisms | DIN rail mountable (35 mm) | IP20 protection | 20,000 electrical cycles | 35 mm width | 69 mm depth

Key Features:

• Original New ABB S202-C6 MCB (2CDS252001R0064)

• 2‑pole configuration for protection of single‑phase circuits or two separate circuits

• C‑curve tripping characteristic – trips instantaneously at 5 to 10 times rated current

• 6 kA breaking capacity at 400 V AC for reliable short‑circuit protection

• 6 A rated current for branch circuit and equipment protection

• Current‑limiting design reduces fault current stress on downstream equipment

• Dual tripping mechanisms: thermal for overload protection, electromechanical for short‑circuit protection

• DIN rail mounting (35 mm) for easy installation in distribution boards

• Red ON / Green OFF contact position indication for clear status visibility

• Screw terminals with failsafe bi‑directional cylinder‑lift terminal design

• Wide operating temperature range: –25°C to +55°C

• 20,000 electrical cycles for long‑term reliability

• Compact 35 mm width saves panel space

• Compatible with bottom‑fitting auxiliary contacts and accessories

• Suitable for AC applications up to 400 V

Applications:

• Industrial control panels and automation systems

• Commercial and residential electrical distribution

• Protection of lighting circuits, socket outlets, and small motors

• HVAC equipment and building management systems

• Machine control circuits and OEM equipment

• Power transmission and distribution systems

Technical Specifications:

System Compatibility:

• Compatible with ABB System Pro M Compact S200 series accessories including auxiliary contacts, shunt trips, undervoltage releases, and busbars

• Bottom‑fitting auxiliary contact S2C‑H11L for space‑saving installation

• Suitable for use with ABB distribution boards and switchgear

• Compatible with standard 35 mm DIN rail mounting systems (TH35‑7.5 / TH35‑15)

• Meets IEC/EN 60898‑1 for residential/commercial installations and IEC/EN 60947‑2 for industrial applications

Related Products:

• S2C‑H11L – Auxiliary contact for S200 series (bottom‑fitting, 1 NO + 1 NC)

• S202‑C10 – 10 A version (higher current rating)

• S202‑C04 – 4 A version (lower current rating)

• S201‑C6 – 1‑pole version

• S203‑C6 – 3‑pole version

• S204‑C6 – 4‑pole version

• SH202C6 – Alternative 2‑pole 6 A C‑curve MCB
