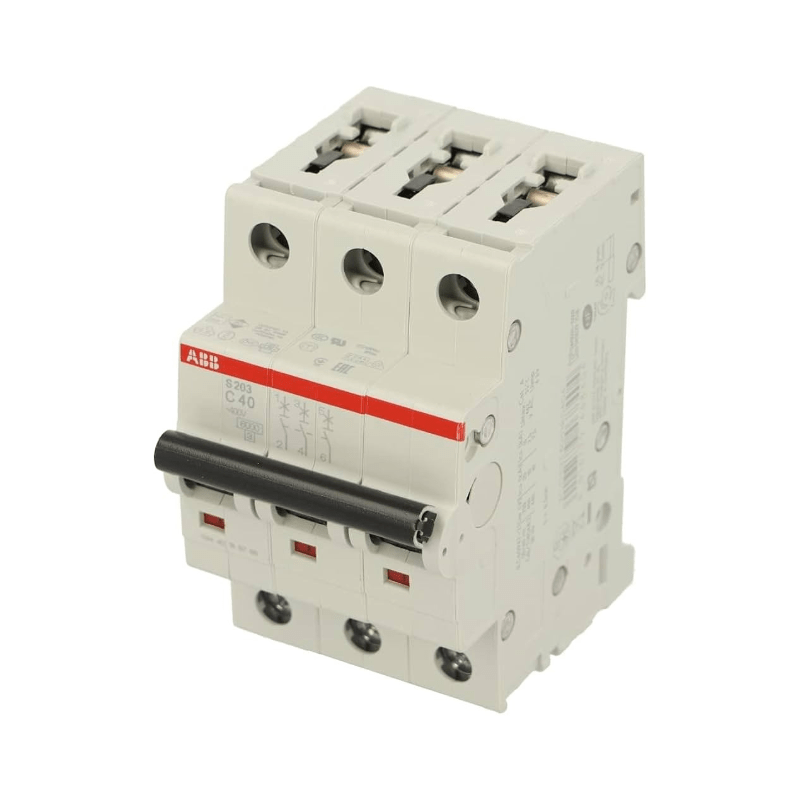

S203-C40 3P 40A C-Curve Miniature Circuit Breaker 6kA | ABB

The Original New ABB S203-C40 is a 3‑pole miniature circuit breaker (MCB) from the System Pro M Compact S200 series, designed for reliable overcurrent and short‑circuit protection in residential, commercial, and industrial electrical installations. Rated at 40 A with a C‑tripping characteristic, it is ideal for circuits with moderate inrush currents such as inductive loads, small motors, transformers, and lighting systems. Featuring a 6 kA breaking capacity at 230/400 V AC, dual thermal‑magnetic tripping mechanisms, and a compact 3‑module width (52.5 mm), the S203‑C40 provides robust protection and space‑efficient installation on standard 35 mm DIN rails. Compliant with IEC/EN 60898‑1 and IEC/EN 60947‑2, it offers flexible application across global markets.

Core Engineering Highlights:
40 A rated current | 3‑pole (3P) configuration | C‑tripping characteristic (5‑10 In) | 6 kA breaking capacity at 230/400 V AC (Icn) | 10 kA ultimate breaking capacity (Icu) | 480Y/277 V AC rated voltage | 4 kV impulse withstand voltage (Uimp) | Thermal‑magnetic trip unit | 52.5 mm width (3 modules) | 88 x 69 x 52.5 mm | IP20 protection | –25°C to +55°C operating temperature

Key Features:

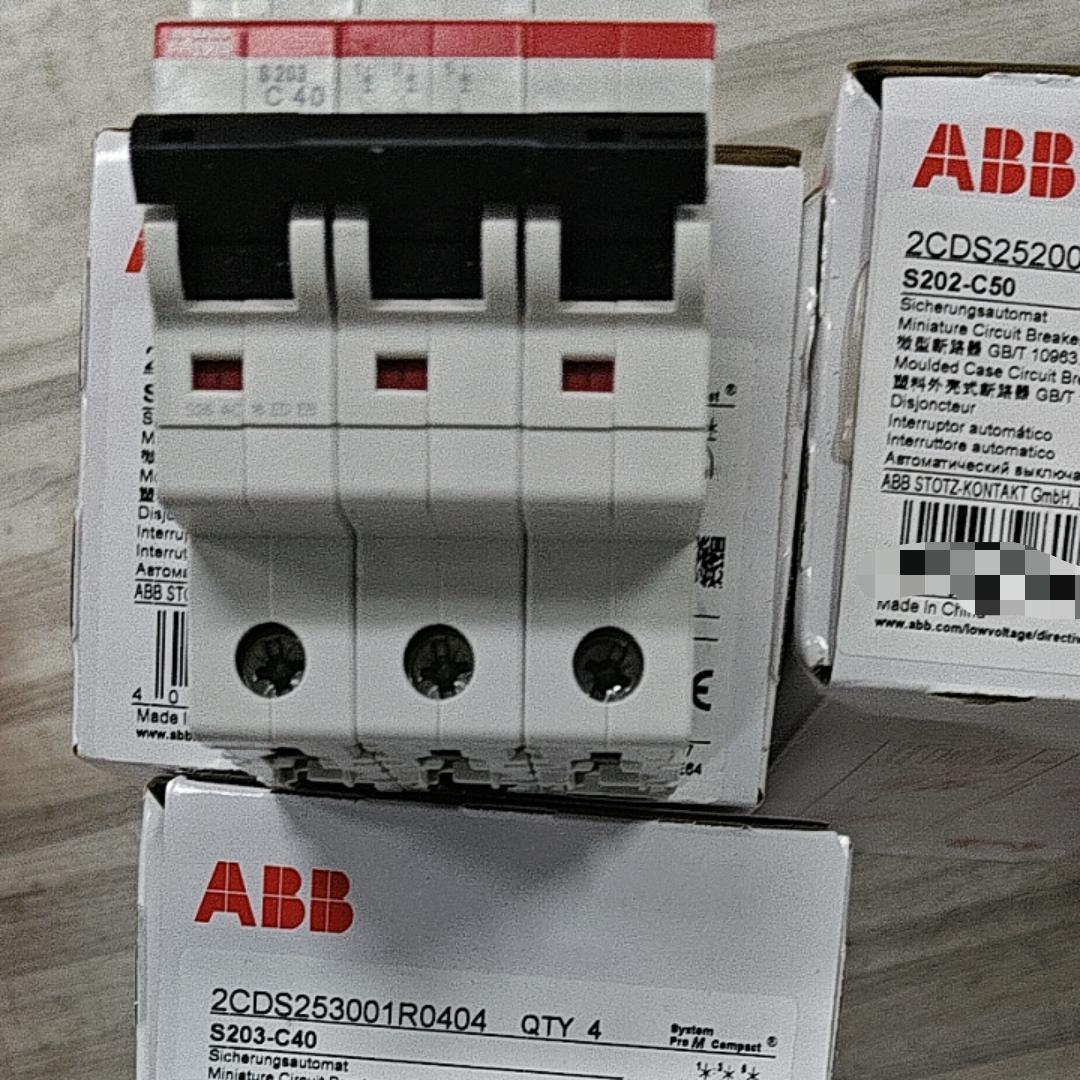

• Original New ABB S203‑C40 MCB (2CDS253001R0404)

• Current limiting design for enhanced protection of downstream equipment

• Dual tripping mechanisms: thermal for overload protection, electromagnetic for short‑circuit protection

• C‑curve characteristic (5‑10 In) for circuits with moderate inrush currents

• 6 kA breaking capacity (Icn) per IEC/EN 60898‑1; 10 kA ultimate breaking capacity (Icu) per IEC/EN 60947‑2

• Clear contact position indication (ON/OFF) in red/green

• Patented twin terminals with captive screws for secure wiring up to 35 mm²

• Busbar slot on the back for easy installation and optimal visibility

• 3‑module width (52.5 mm) for space‑efficient panel design

• IP20 finger‑proof protection

• Compliant with IEC/EN 60898‑1 and IEC/EN 60947‑2

• UL 1077 and CSA 22.2 No. 235 listed for North American applications

• RoHS compliant

Applications:

• Protection of final circuits in residential, commercial, and industrial distribution boards

• Overcurrent protection for lighting, socket outlets, and general‑purpose circuits

• Protection of inductive loads such as small motors, transformers, and coils

• Industrial control panels and distribution boards

• HVAC equipment and building automation systems

• Branch circuit protection in machinery and equipment

Technical Specifications:

System Compatibility:

• Compatible with standard 35 mm DIN rail mounting systems (TH35‑15 or TH35‑7.5)

• Suitable for use with ABB System Pro M Compact S200 series accessories, including:

  • Auxiliary contacts (S2C‑H6R, S2C‑H11L)

  • Shunt trips (S2C‑A1, S2C‑A2)

  • Undervoltage releases (S2C‑UA)

  • Busbars (PS2/1P, PS2/2P, PS2/3P, PS2/4P)

  • Locking devices (S2C‑L)

• Compatible with standard electrical distribution boards and panelboards

Related Products:

• S201‑C40 – 1P, 40A, C‑curve

• S202‑C40 – 2P, 40A, C‑curve

• S203‑C40 – 3P, 40A, C‑curve (current model)

• S204‑C40 – 4P, 40A, C‑curve

• S203‑B40 – 3P, 40A, B‑curve (for resistive loads)

• S203‑D40 – 3P, 40A, D‑curve (for high inrush loads)

• S2C‑H6R – Auxiliary contact for S200 series

• S2C‑A1 – Shunt trip for S200 series

• S2C‑UA – Undervoltage release for S200 series

• PS2/3P – 3‑phase busbar for S200 series
