AI810 8-Channel Analog Input Module 0-20mA/0-10V S800 | ABB

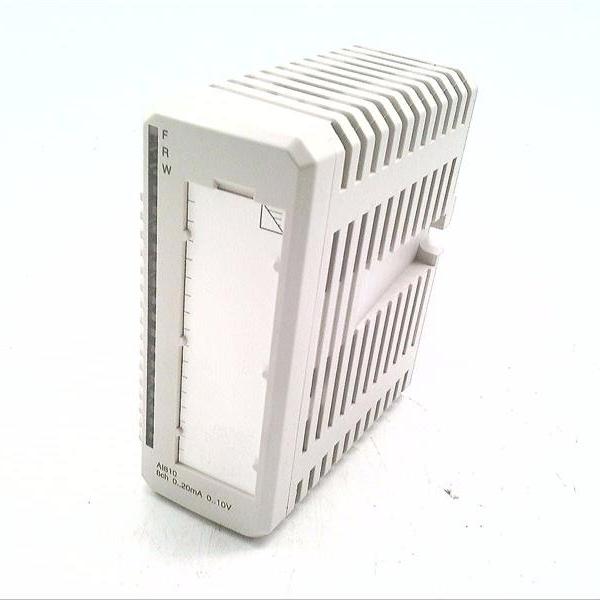

The Original New ABB AI810 3BSE008516R1 is an 8-channel analog input module for the ABB S800 I/O system, designed for high-precision signal acquisition in industrial process control and automation applications. It accepts 0-20 mA, 4-20 mA, 0-10 V, or 2-10 V DC single-ended unipolar inputs from field transmitters and sensors. The module integrates seamlessly with ABB 800xA DCS and AC 800M controller platforms, providing accurate measurement of temperature, pressure, flow, and level signals in manufacturing, oil & gas, chemical processing, and power generation facilities.

Core Engineering Highlights:
8 single-ended analog input channels | 0-20 mA, 4-20 mA, 0-10 V, 2-10 V signal ranges | 12-bit resolution | ±0.1% accuracy | 8 ms update cycle time | Group isolation from ground | 600 m max field cable length | –40°C to +70°C operating temperature | Hot-swappable | S800 I/O system compatibility | CE, UL, ATEX, Marine certified

Key Features:

• Original New ABB AI810 module (3BSE008516R1)

• 8 single-ended analog input channels

• Configurable input signals: 0-20 mA, 4-20 mA, 0-10 V, 2-10 V DC

• 12-bit resolution for accurate signal conversion

• ±0.1% accuracy of full scale

• 140 ms input filter (rise time 0-90%)

• 8 ms update cycle time for fast signal acquisition

• Input shunt resistors protected to 30 V by PTC resistor

• Analog inputs short circuit secured to ZP or +24 V

• Group isolation from ground for noise immunity

• Withstands HART communication

• Hot-swappable—replace module without system shutdown

• 600 m maximum field cable length

• LED status indicators: Fault (F), Run (R), Warning (W)

• Wide operating temperature: 0°C to +55°C standard, approvals issued for +5°C to +55°C

• Storage temperature: –40°C to +70°C

• IP20 protection

Applications:

• Process manufacturing—reactor temperature control, distillation column pressure, batch mixing

• Oil & gas facilities—wellhead pressure, pipeline flow rates, tank level monitoring

• Power generation—turbine vibration, bearing temperature, generator voltage signals

• Water and wastewater treatment—pH, conductivity, dissolved oxygen, turbidity measurement

• Chemical processing and industrial automation requiring high-precision analog signal acquisition

• SCADA systems in hazardous area classifications

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers: PM860, PM861, PM862, PM863, PM864, PM865, PM866 series

• ABB 800xA DCS platforms

• Freelance 800F distributed control system

• Module Termination Units (MTU): TU810, TU812, TU814, TU830, TU833, TU835, TU838

• ModuleBus cluster communication

• Third-party integration via PROFIBUS DP, PROFINET, or Modbus TCP gateways

Related Products:

• AO810 – 8-channel analog output module

• DI810 – 16-channel digital input module

• DO810 – 16-channel digital output module

• TU810 / TU812 / TU814 – Compact Module Termination Units (MTU)

• TU830 / TU833 / TU835 / TU838 – Extended MTUs for S800 I/O

• CI801 – PROFIBUS interface module for S800 I/O

• SD822 – Power supply module for S800 I/O

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. ABB, S800, 800xA, and AC 800M are trademarks of ABB Group.
