TU810V1 Compact Module Termination Unit 16-Channel 50V S800 I/O | ABB

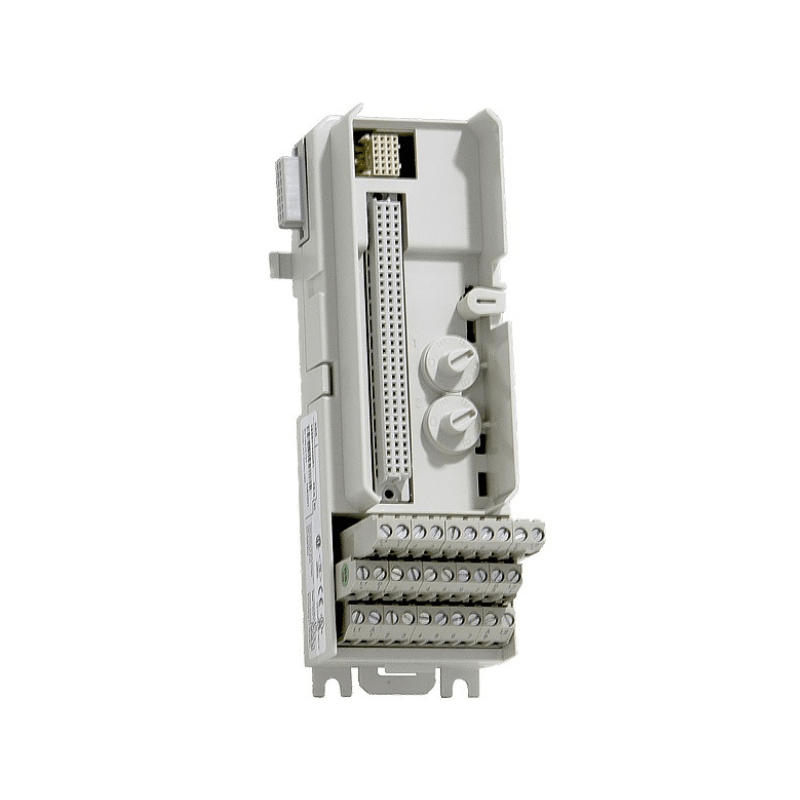

The Original New ABB TU810V1 (3BSE013230R1) is a 16‑channel, 50 V compact module termination unit (MTU) for the ABB S800 I/O system. As a passive unit, it serves as the physical wiring interface between field devices and S800 I/O modules, distributing ModuleBus signals to the connected I/O module and to the next MTU in a daisy‑chain configuration. The TU810V1 is designed for compact installations using one‑wire connections, supporting up to 16 channels of field signals and process power connections. It features mechanical keying with 36 possible configurations to prevent incorrect I/O module insertion.

Core Engineering Highlights:
16 field signal channels | 50 V rated insulation voltage | Passive MTU for S800 I/O | 2 A per I/O channel, 5 A process connection max | 2 x 2 process power + 5 x 2 process power (0 V) connections | Mechanical keying (36 configurations) | DIN rail mounting with latching device for grounding | ModuleBus distribution to I/O module and next MTU | Automatic address generation via position signal shifting | IP20 protection | –40°C to +70°C operating temperature

Key Features:

• Original New ABB TU810V1 module (3BSE013230R1)

• 16‑channel compact module termination unit (MTU) for S800 I/O systems

• Passive unit for connecting field wiring to I/O modules

• Distributes ModuleBus to I/O module and next MTU

• Generates correct I/O module address by shifting outgoing position signals

• Dual mechanical keys (6 positions each) for 36 configuration combinations to prevent incorrect module insertion

• Supports up to 16 channels of field signals and process power connections

• Process connections: 2 x 2 process power, 5 x 2 process power (0 V)

• 2 A maximum current per I/O channel, 5 A maximum process connection current

• DIN rail mounting with latching device for grounding

• Compact design for space‑saving installations

• Hot‑swappable (supports module replacement without system shutdown)

• Passive operation – no external power supply required

• Mechanical keying – electrical configuration unaffected by keys

• Compatible with single I/O configurations only

Applications:

• Field wiring termination for ABB S800 I/O modules (analog, digital, and DP modules)

• Distributed control systems (DCS) – ABB 800xA and Freelance 800F

• AC 800M controller I/O system expansion

• Industrial automation and process control

• Oil and gas, chemical, and petrochemical facilities

• Power generation and utility infrastructure

• Water and wastewater treatment plants

• Manufacturing and factory automation

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers (PM860, PM861, PM862, PM863, PM864, PM865, PM866 series)

• ABB 800xA DCS and Freelance 800F systems

• Compatible I/O modules include: AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845; AO810, AO810V2, AO815, AO820, AO845, AO845A; DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885; DO810, DO814, DO815, DO840, DO880; DP820, DP840

• ModuleBus communication interface

• Single I/O configurations only

Related Products:

• TU812V1 – 24V compact MTU for S800 I/O

• TU814V1 – 24V compact MTU with current limiting

• TU830V1 – Extended MTU with fusing

• TU833V1 – Extended MTU with process voltage supervision

• TU835V1 – Extended MTU with redundant process voltage

• TU838V1 – Extended MTU with redundant process voltage and fusing

• AI810 – 8‑channel analog input module

• DI810 – 16‑channel digital input module

• DO810 – 16‑channel digital output module

• CI801 – PROFIBUS communication interface for S800 I/O
