TU830V1 Extended Module Termination Unit 16-Channel 50V S800 I/O | ABB

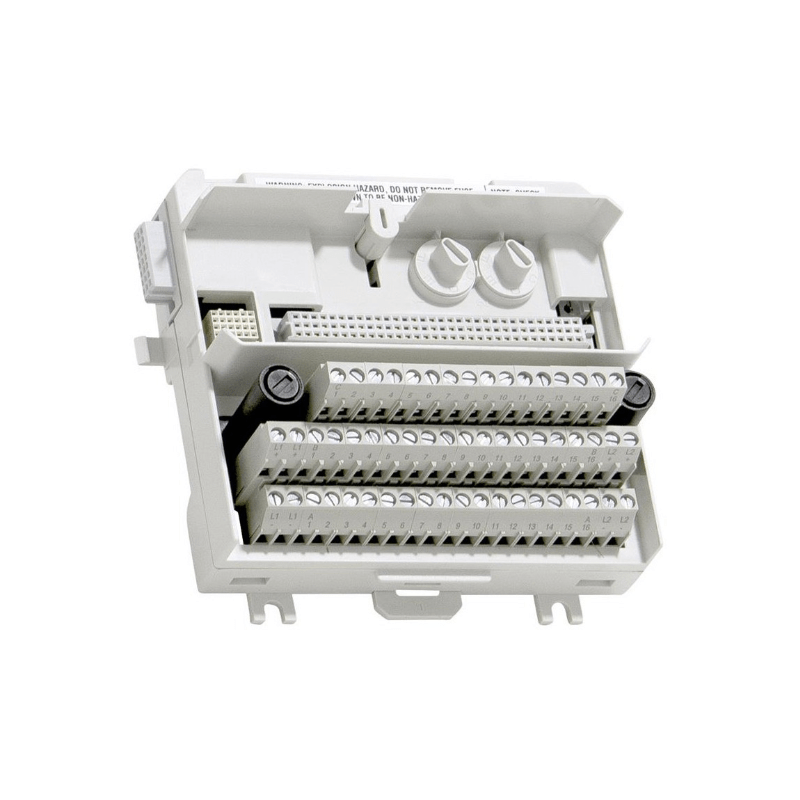

The Original New ABB TU830V1 (3BSE013234R1) is an extended module termination unit (MTU) for the ABB S800 I/O system, designed to provide a complete installation solution for I/O modules using 3-wire connections, fuses, and field power distribution. As a passive unit, it serves as the physical interface between field devices and S800 I/O modules, distributing ModuleBus signals to the connected I/O module and to the next MTU in a daisy‑chain configuration. The TU830V1 supports up to 16 I/O channels with two individually isolated process voltage groups, each protected by a 6.3 A fuse. It features an extended 2 × 16 terminal layout, mechanical keying with 36 configuration combinations to prevent incorrect I/O module insertion, and DIN rail mounting with a latching device for grounding. Designed for demanding industrial environments, it is widely used in ABB 800xA, Advant OCS, and Compact Product Suite environments.

Core Engineering Highlights:
Up to 16 I/O channels with 2 × 16 terminal configuration | 50 V maximum rated voltage | 2 A maximum current per I/O channel | Two individually isolated process voltage groups with 6.3 A fuses | 3-wire connections for signal, return, and power | 36 mechanical keying combinations | ModuleBus distribution with automatic address generation | Passive unit – no external power required | IP20 protection | –40°C to +70°C storage temperature | DIN rail mounting | ATEX Zone 2 and Marine certified

Key Features:

• Original New ABB TU830V1 module (3BSE013234R1)

• Extended MTU for ABB S800 I/O systems with 2 × 16 terminal configuration

• Supports up to 16 channels of field signals and process power connections

• Two individually isolated process voltage groups (UP1 and UP2)

• Each group protected by a 6.3 A time-lag fuse (5 × 20 mm)

• 3-wire connections: two I/O connections and one ZP connection per channel

• Mechanical keying with 36 coding combinations prevents insertion of wrong I/O module

• Distributes ModuleBus to I/O module and next MTU

• Automatic address generation by shifting outgoing position signals

• Latching device to DIN rail for system grounding

• Screw terminals with 0.5–0.6 Nm torque specification

• Accepts solid wire 0.2–4 mm² and stranded wire 0.2–2.5 mm² (24–12 AWG)

• Passive unit – no external power required

• Supports single I/O configurations only (non‑redundant)

Applications:

• Field wiring termination for ABB S800 I/O modules (analog, digital, and DP modules)

• Distributed control systems (DCS) – ABB 800xA and Freelance 800F

• AC 800M controller I/O system expansion

• Industrial automation and process control

• Oil and gas, chemical, and petrochemical facilities

• Power generation and utility infrastructure

• Water and wastewater treatment plants

• Manufacturing and factory automation

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers (PM860, PM861, PM862, PM863, PM864, PM865, PM866 series)

• ABB 800xA DCS and Freelance 800F systems

• Compatible I/O modules include:

  • Analog Inputs: AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845

  • Analog Outputs: AO810, AO810V2, AO815, AO820, AO845, AO845A

  • Digital Inputs: DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885

  • Digital Outputs: DO810, DO814, DO815, DO818, DO840, DO880

  • DP Modules: DP820, DP840

• ModuleBus communication interface

• Single I/O configurations only (non‑redundant)

Related Products:

• TU810V1 – Compact MTU for S800 I/O (16-channel, 50V)

• TU812V1 – 24V compact MTU for S800 I/O

• TU814V1 – 24V compact MTU with current limiting

• TU833V1 – Extended MTU with process voltage supervision

• TU835V1 – Extended MTU with redundant process voltage

• TU838V1 – Extended MTU with redundant process voltage and fusing

• TU842V1 – Redundant MTU for high‑availability configurations

• AI810 – 8‑channel analog input module

• DI810 – 16‑channel digital input module

• DO810 – 16‑channel digital output module

• CI801 – PROFIBUS communication interface for S800 I/O

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. ABB, S800, 800xA, and AC 800M are trademarks of ABB Group.
