CI801 PROFIBUS DP-V1 Communication Interface for S800 I/O | ABB

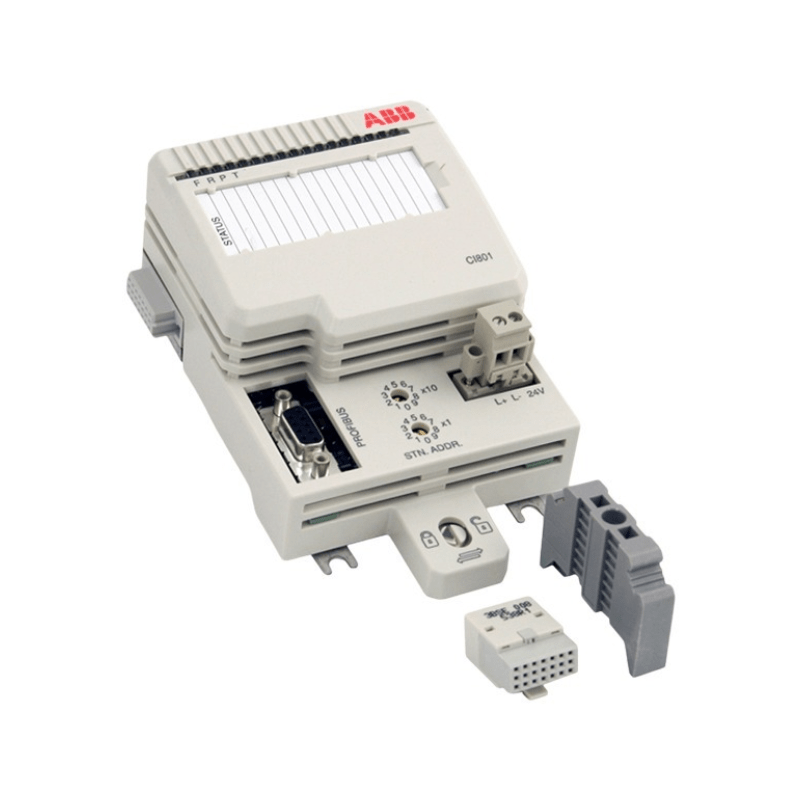

The Original New ABB CI801 3BSE022366R1 is a PROFIBUS DP-V1 fieldbus communication interface (FCI) module for the ABB S800 I/O system. It enables seamless integration of S800 I/O modules with PROFIBUS DP-V1 networks, allowing up to 24 I/O modules to be controlled remotely via a single fieldbus connection. The CI801 supports Hot Configuration In Run (HCIR), HART pass-through, OSP (Output State Preset) handling, and supervisory functions of the I/O ModuleBus. Designed for distributed and modular process I/O applications, this module is used with ABB's 800xA and Freelance DCS systems, as well as third-party PLCs supporting PROFIBUS DP-V1.

Core Engineering Highlights:
PROFIBUS DP-V1 fieldbus interface (slave mode) | Up to 12 Mbit/s automatic baud rate detection | Supports up to 24 S800 I/O units per module | Hot Configuration In Run (HCIR) | HART pass-through | OSP handling and configuration | Isolated power supply to I/O modules | Input power fused | 24V DC power input (19.2–30V) | 140 mA typical current consumption | IP20 protection class | 0°C to +55°C operating temperature | 0.3 kg (0.66 lb) weight

Key Features:

• Original New ABB CI801 module (3BSE022366R1)

• PROFIBUS DP-V1 slave interface for S800 I/O system integration

• Automatic baud rate detection: 9.6 kbit/s to 12 Mbit/s

• Supports up to 24 S800 I/O modules per FCI

• Hot Configuration In Run (HCIR) – replace I/O modules online without system shutdown

• HART pass-through for smart device communication

• OSP (Output State Preset) handling on communication error

• Isolated power supply to I/O modules

• Input power fused for protection

• No line redundancy, no module redundancy

• PROFIBUS GSD file provided for easy integration

• IP20 protection class for control cabinet installation

• CE marking, UL 61010-1, ATEX Zone 2, and Marine certified

Applications:

• Integration of ABB S800 I/O systems into PROFIBUS DP-V1 networks

• Distributed process control and manufacturing automation

• Oil and gas, chemical, and petrochemical facilities

• Water and wastewater treatment plants

• Power generation and utility infrastructure

• Food and beverage processing

• General industrial automation and OEM machinery

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers (PM860, PM861, PM862, PM863, PM864, PM865, PM866 series)

• ABB 800xA DCS and Freelance 800F systems

• Any PROFIBUS DP-V1 master controller (PLC, DCS)

• HART-enabled field devices via pass-through

• PROFIBUS GSD file provided for third-party integration

Related Products:

• DI810 – 16-channel digital input module, 24V DC

• DO810 – 16-channel digital output module, 24V DC

• AI810 – 8-channel analog input module

• AO810 – 8-channel analog output module

• TU807 – ModuleBus terminator (included with CI801)

• CI840A – Redundant PROFIBUS communication interface

• CI845 – Ethernet FCI module for S800 I/O

• TB820V2 – ModuleBus communication interface module

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. ABB, S800, 800xA, and Freelance are trademarks of ABB Group.
