AI815 8-Channel Analog Input Module 0-20mA/0-5V HART S800 | ABB

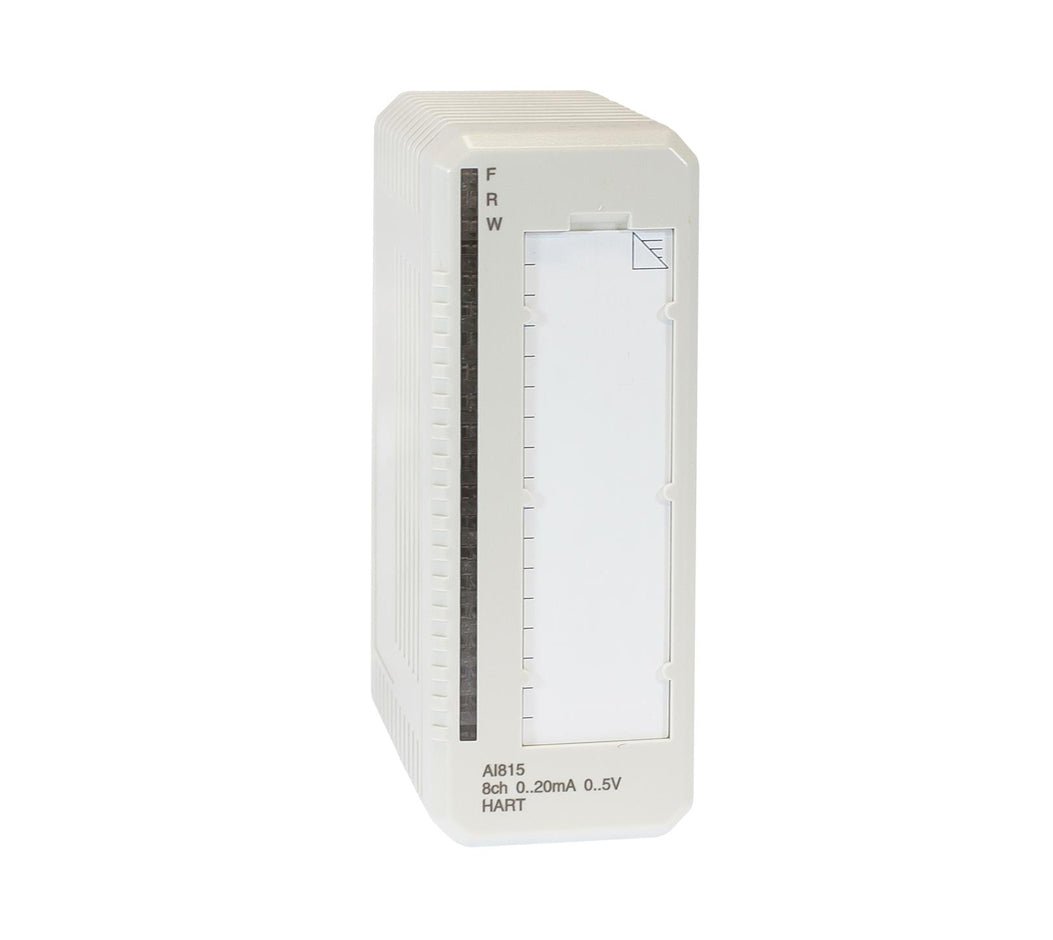

The Original New ABB AI815 3BSE052604R1 is an 8-channel analog input module for the ABB S800 I/O system, designed for high-precision signal acquisition with integrated HART pass-through communication. It accepts 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V DC single-ended unipolar signals from field transmitters and sensors. The module distributes a HART-compatible transmitter supply to each channel, enabling direct communication with HART-enabled smart field devices without additional hardware. It integrates seamlessly with ABB 800xA DCS, AC 800M, and Freelance controller platforms, providing accurate measurement of temperature, pressure, flow, and level signals in process manufacturing, oil & gas, chemical processing, and power generation facilities.

Core Engineering Highlights:
8 single-ended unipolar analog input channels | 0-20 mA, 4-20 mA, 0-5 V, 1-5 V signal ranges | 12-bit resolution | ±0.1% accuracy | 10 ms update cycle time | HART pass-through communication (point-to-point) | Current-limited transmitter power distribution per channel | Group isolation from ground | Rated insulation 50 V / Dielectric test 500 V AC | 600 m max field cable length | 0°C to +55°C operating temperature | Hot-swappable | S800 I/O system compatible

Key Features:

• Original New ABB AI815 module (3BSE052604R1)

• 8 single-ended unipolar analog input channels

• Configurable signal inputs: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V DC (voltage and current signals cannot be mixed on the same module)

• 12-bit resolution for accurate signal conversion

• ±0.1% accuracy of full scale

• HART pass-through communication per channel – enables direct communication with HART smart transmitters without external demodulators

• Current-limited transmitter power distribution per channel for 2-wire and 3-wire transmitters

• HART-compatible external power supply required for transmitter feeding

• 10 ms update cycle time for fast signal acquisition

• Group isolation from ground – 1 group of 8 channels isolated

• 50 V rated insulation voltage / 500 V AC dielectric test voltage

• 600 m maximum field cable length (shielded twisted pair)

• 290 ms input filter (rise time 0-90%)

• Built-in input overvoltage/undervoltage tolerance: ≥11 V DC

• Hot-swappable – replace module without system shutdown

• LED status indicators: Fault (F), Run (R), Warning (W)

• CE, UL, ATEX Zone 2, and Marine certified

Applications:

• Process manufacturing – reactor temperature control, distillation column pressure, batch mixing

• Oil & gas facilities – wellhead pressure, pipeline flow rates, tank level monitoring

• Power generation – turbine vibration, bearing temperature, generator voltage signals

• Water and wastewater treatment – pH, conductivity, dissolved oxygen, turbidity measurement

• Chemical processing and industrial automation requiring high-precision analog signal acquisition with HART communication

• SCADA systems in hazardous area classifications

• Pharmaceutical and food processing facilities

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers: PM860, PM861, PM862, PM863, PM864, PM865, PM866 series

• ABB 800xA DCS and Freelance 800F systems

• Module Termination Units (MTU): TU810, TU812, TU814, TU830, TU833, TU835, TU838

• ModuleBus cluster communication

• Third-party integration via PROFIBUS DP, PROFINET, or Modbus TCP gateways

• HART-enabled field devices via pass-through communication

Related Products:

• AO815 – 8-channel analog output module with HART

• AI810 – 8-channel analog input module (without HART)

• DI810 – 16-channel digital input module, 24V DC

• DO810 – 16-channel digital output module, 24V DC

• TU810 / TU812 / TU814 – Compact Module Termination Units (MTU)

• TU830 / TU833 / TU835 / TU838 – Extended MTUs for S800 I/O

• CI801 – PROFIBUS communication interface for S800 I/O
