AO815 8-Channel Analog Output Module 4-20mA HART S800 | ABB

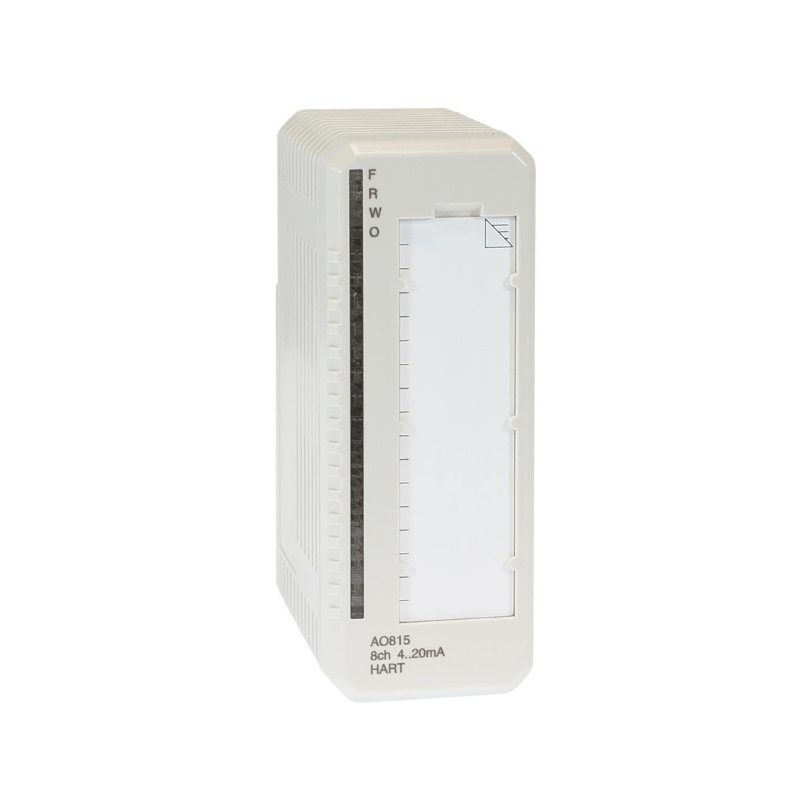

The Original New ABB AO815 3BSE052605R1 is an 8-channel analog output module for the ABB S800 I/O system, designed to convert digital control signals into precise 4-20 mA analog outputs for driving field actuators, valves, positioners, and other process instruments. The module provides eight unipolar single-ended output channels with 12-bit resolution, a 10 ms update cycle, and groupwise isolation from ground. Integrated HART pass-through communication supports point-to-point connectivity with HART-enabled smart devices, enabling advanced diagnostics and configuration without additional hardware. Part of the ABB 800xA and Compact Product Suite platforms, the AO815 is ideal for high-density process control applications in the chemical, oil & gas, pharmaceutical, and power generation industries.

Core Engineering Highlights:
8 unipolar 4-20 mA analog output channels | 12-bit resolution | 10 ms update cycle | Max load: 750 Ω | Groupwise isolation from ground | HART pass-through communication (point-to-point) | Output State Preset (OSP) on error detection | 0.1% accuracy (max) | 50 ppm/°C temperature drift | 600 m max field cable length | MTU compatibility: TU810, TU812, TU814, TU830, TU833

Key Features:

• Original New ABB AO815 module (3BSE052605R1)

• 8 unipolar analog output channels for 4-20 mA current loops

• 12-bit resolution for precise signal conversion

• 10 ms update cycle for responsive process control

• HART pass-through communication per channel – point-to-point only; output filter must be enabled on channels used for HART communication

• Output State Preset (OSP) sets outputs to a predetermined state upon error detection (256, 512, or 1024 ms timer)

• Groupwise isolation from ground; 50 V rated insulation voltage / 500 V AC dielectric test voltage

• Short-circuit protected outputs, secured to ZP or +24V

• Cyclic self-diagnostics with LED status indicators: F(ault), R(un), W(arning), O(SP)

• 600 m maximum field cable length (shielded twisted pair required for HART)

• Hot-swappable – supports module replacement without system shutdown in compatible configurations

• CE, UL, ATEX Zone 2, and Marine certified

Applications:

• Control of valves, actuators, and positioners in process industries

• High-density analog output cabinets in industrial automation systems

• ABB 800xA DCS and Compact Product Suite integration

• Chemical, oil & gas, pharmaceutical, and power generation process control

• HART-enabled smart device communication for advanced diagnostics

• SCADA system analog output expansion

Technical Specifications:

System Compatibility:

• Compatible with ABB S800 I/O system architecture

• AC 800M controllers (PM860, PM861, PM862, PM863, PM864, PM865, PM866 series)

• ABB 800xA DCS (versions 4.1 to 6.0) and Compact Product Suite

• Freelance 800F distributed control systems

• Module Termination Units (MTU): TU810, TU812, TU814, TU830, TU833

• ModuleBus cluster communication

• HART-enabled field devices via pass-through communication

• Third-party integration via PROFIBUS DP, PROFINET, or Modbus TCP gateways

Related Products:

• AI815 – 8-channel analog input module with HART

• AO810V2 – 8-channel analog output module (without HART)

• DI810 – 16-channel digital input module, 24V DC

• DO810 – 16-channel digital output module, 24V DC

• TU810 / TU812 / TU814 – Compact Module Termination Units (MTU)

• TU830 / TU833 – Extended MTUs for S800 I/O

• CI801 – PROFIBUS communication interface for S800 I/O
