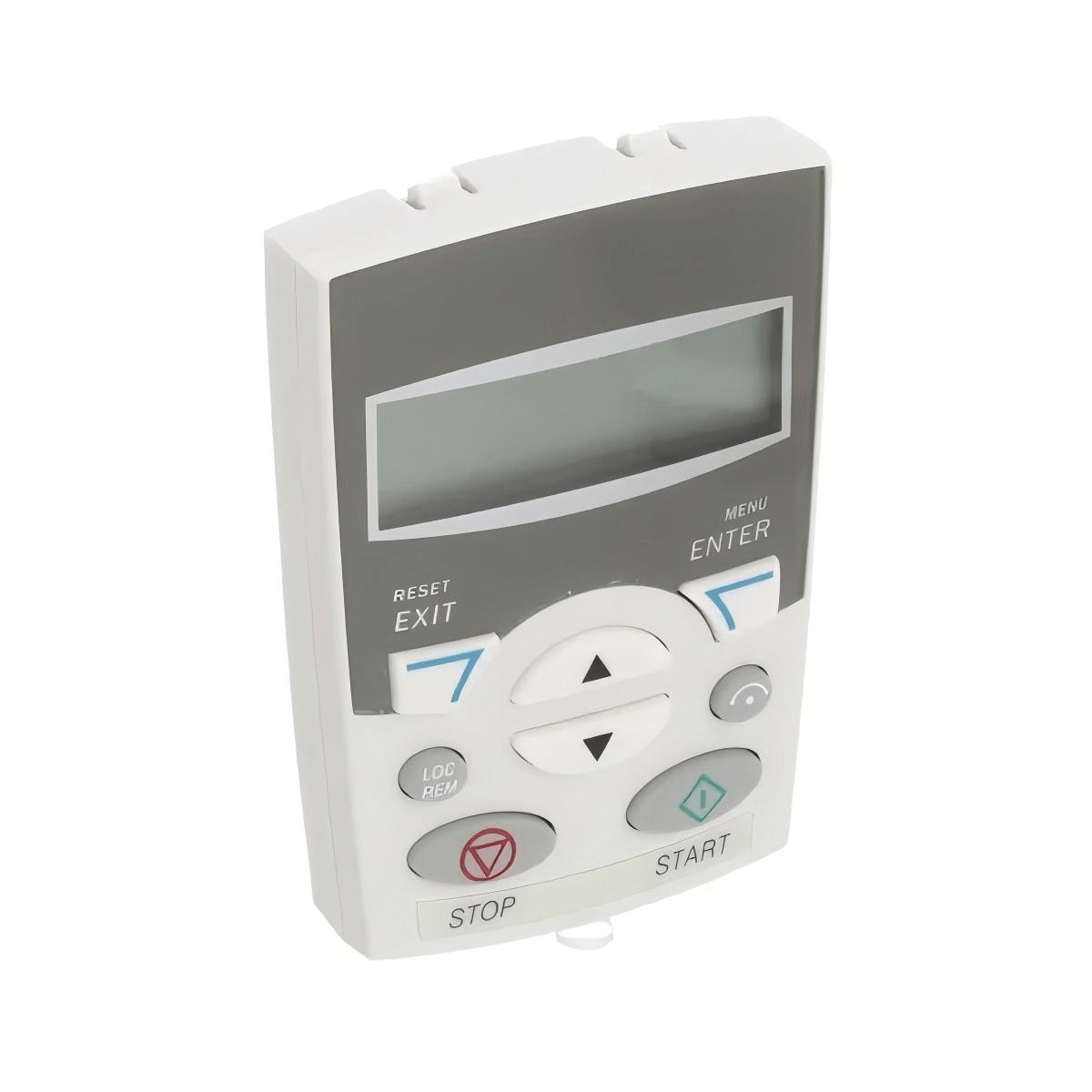

The Original New ABB ACS-CP-C Basic Control Panel (3ABD64739000) is a compact, user‑friendly operator interface designed for local control and monitoring of ABB low‑voltage AC drives. Featuring a single‑line numeric LCD display and an 8‑button keypad, it enables operators to start and stop drives, adjust frequency setpoints, modify parameters, and copy configurations between drives. This panel is a cost‑effective solution for OEM machine builders, panel integrators, and maintenance teams requiring simple, reliable drive access in industrial automation, HVAC, and material handling applications. The ACS‑CP‑C offers password protection for critical drive parameters, adding an extra layer of security to prevent unauthorised access.

Core Engineering Highlights:
Single‑line numeric LCD display | 8‑button interface (Start, Stop, Direction, Local/Remote, Arrow keys, Menu/Enter, Reset/Exit) | Parameter copy function between drives| Compact dimensions: 100 × 60 × 20 mm| 0.1 kg net weight| IP20 enclosure| Compatible with ACS310, ACS350, ACS355, ACS510, ACS550, and other selected ABB drives| Password protection for critical parameters

Key Features:

• Original New ABB ACS‑CP‑C panel (3ABD64739000)

• Single‑line numeric LCD display with clear parameter readout

• 8‑button interface: Start, Stop, Direction, Local/Remote change, Arrow keys, Menu/Enter, Reset/Exit

• Parameter copy function – copy settings from one drive to another for rapid commissioning

• Compact, lightweight design: 100 × 60 × 20 mm, 0.1 kg

• IP20 protection for control cabinet installation

• Password protection for critical drive parameters

• LED status indicators for at‑a‑glance operational status

• Local/Remote control mode switching

• Real‑time monitoring of drive status, motor performance, and system diagnostics

• Simple integration via communication cable (typically RJ45)

Applications:

• Industrial automation – conveyors, pumps, fans, and general machinery

• HVAC systems – precise control of air handling unit fans and pumps

• Material handling – conveyor systems and transport equipment

• Water and wastewater treatment – pumping systems for distribution and sewage

• Energy savings – energy‑efficient motor control, reducing operational costs

• OEM machine building and panel integration

Technical Specifications:

System Compatibility:

• Compatible with ABB low‑voltage AC drives including: ACS310, ACS350, ACS355, ACS510, ACS550, and selected other drives. Drive model and firmware compatibility should be verified before installation.

• Also reported compatible with ACS150 and ACS580 series

• Connects to the drive via communication cable (typically RJ45)

• Suitable for drives with basic control panel support (ACS‑CP‑C Rev. M or later recommended)

Related Products:

• ACS‑CP‑D – Basic control panel with Chinese/English language support

• ACS‑CP‑A – Assistant control panel (advanced version with enhanced features)

• ACS‑AP‑I – Advanced control panel with graphical display

• ACS/H‑CP‑EXT – Extension cable for remote panel mounting

• Mounting kit – For panel installation (if required)
