ACS150-03E-02A4-4 0.75kW Micro AC Drive 380-480V | ABB

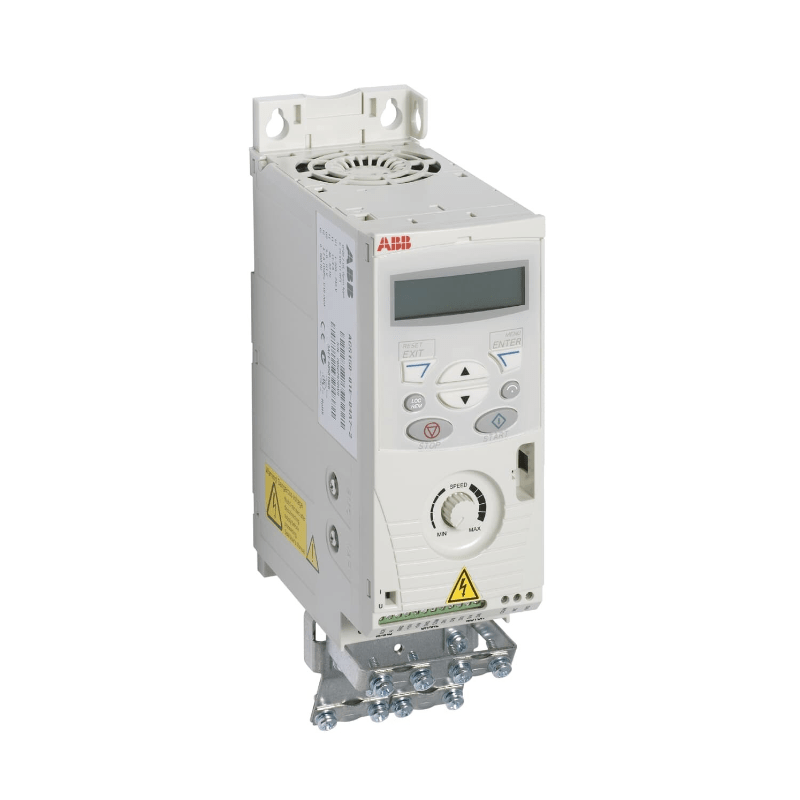

The Original New ABB ACS150-03E-02A4-4 is a compact and efficient variable frequency drive (VFD) designed for light-duty motor control in OEM and industrial automation applications. With a 0.75 kW (1 HP) power rating, 2.4 A output current, and a 380–480 V three-phase supply, it delivers precise speed control for small motors in mixers, conveyors, fans, pumps, and small machinery. It is ideal for applications where a fixed-speed motor needs to be upgraded to variable speed. The drive features a built-in keypad with potentiometer, integrated EMC filter, and built-in brake chopper, simplifying installation while delivering reliable and efficient operation.

Core Engineering Highlights:
0.75 kW (1 HP) output power | 2.4 A output current | 380–480 V 3‑phase input (±10%) | 0–500 Hz frequency range | Scalar (V/f) control | Built-in keypad with potentiometer | Integrated EMC filter (Class C2) | Built-in brake chopper | IP20 enclosure | R1 frame size | -10°C to +40°C operating temperature (no derating)

Key Features:

• Original New ABB ACS150-03E-02A4-4 drive

• Integrated user panel with potentiometer for easy local control

• Built-in EMC filter and brake chopper reduce need for external components

• Pre‑defined connection macros (e.g., 3‑wire, PID‑control, motor potentiometer) enable rapid configuration

• Scalar (V/f) control for basic speed regulation applications

• FlashDrop tool support for quick, volume configuration of unpowered drives

• UL, cUL, CE, C‑tick, and GOST R approvals

Applications:

• Mixers and agitators

• Conveyors and material handling

• Fans and pumps

• Small machinery and OEM systems

• Light industrial automation

Technical Specifications:

Product Status:
This product has been discontinued by ABB and remains available as a spare part for maintaining existing systems while supplies last.

System Compatibility:

• Compatible with three‑phase induction motors

• Programmable via built‑in keypad or optional FlashDrop configuration tool

• Supports predefined macros for fast, application‑specific setup

• Suitable for DIN rail or wall mounting

Related Products:

• ACS150‑03E‑03A3‑4 – 1.1 kW version (higher power)

• ACS150‑01E‑02A4‑2 – 0.75 kW, single‑phase 200–240 V version

• FlashDrop – Optional tool for volume configuration

• ACS‑CP‑C – Basic control panel for ABB drives

• ACS‑AP‑I – Advanced control panel with graphical display
