ACS150-03E-03A3-4 1.1kW Micro Drive 380-480V IP20 R1 | ABB

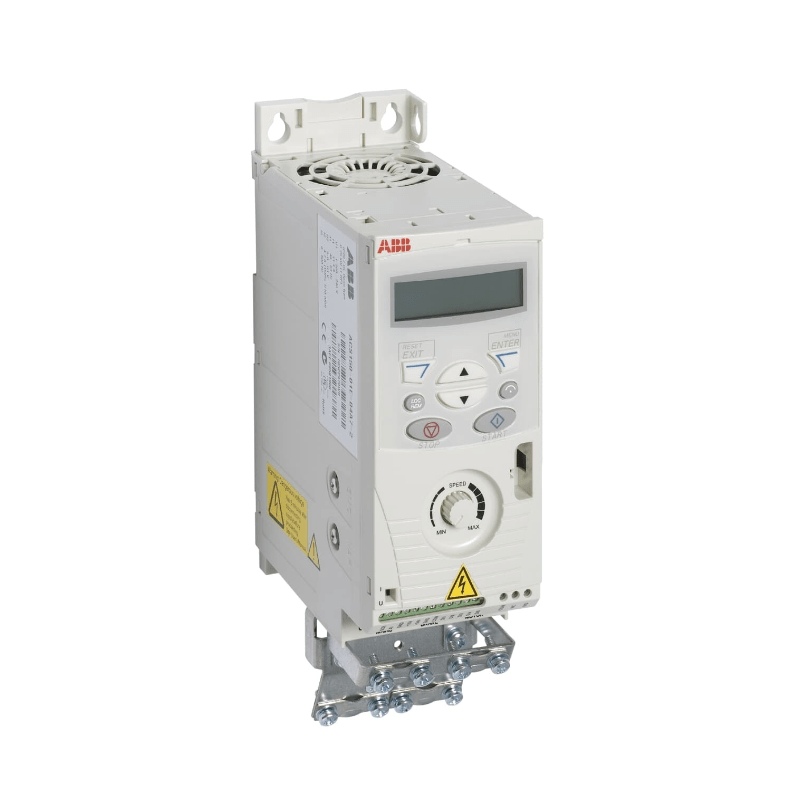

The Original New ABB ACS150-03E-03A3-4 is a 1.1 kW (1.5 HP) micro drive from the ABB ACS150 series, engineered for reliable motor control in light industrial and OEM machinery applications. Rated at 3.3 A with a 380–480 V three-phase input, this compact drive delivers efficient speed and torque control for mixers, conveyors, fans, pumps, and other variable speed applications. Featuring an IP20 enclosure, integrated EMC filter, built-in brake chopper, scalar (U/f) control, and an integrated user panel with potentiometer, the ACS150-03E-03A3-4 simplifies installation and reduces the need for external components. The drive is part of the ABB micro drive portfolio and includes built-in PID control, application macros, and FlashDrop compatibility for fast volume configuration without powering the drive. Its compact R1 frame size and lightweight 1.2 kg design make it suitable for a wide range of OEM and machinery applications.

⚠️ Important Product Status Note:

This product has been discontinued by ABB. It remains available as a spare part for maintaining existing ACS150-based systems while supplies last. For new installations, consider the recommended successor series (ACS355 or ACS580).

Core Engineering Highlights:
1.1 kW (1.5 HP) power rating | 3.3 A nominal output current | 380–480 V 3-phase input (±10%) | 0–500 Hz output frequency range | IP20 enclosure | Frame size R1 | Integrated EMC filter + built-in brake chopper | Scalar (U/f) control | Built-in PID controller | Integrated user panel with potentiometer | Application macros (3-wire, PID-control, motor potentiometer) | FlashDrop compatible | 150% overload capacity for 60 seconds

Key Features:

• Original New ABB ACS150-03E-03A3-4 drive (68581761)

• 1.1 kW (1.5 HP) rated output power, 3.3 A nominal output current

• 380–480 V AC 3-phase input, 50/60 Hz

• 0–500 Hz output frequency range

• IP20 enclosure for control cabinet installation

• Frame size R1 with compact dimensions (169 × 70 × 142 mm)

• Integrated EMC filter for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking (external resistor optional)

• Scalar (U/f) control for simple applications

• Built-in PID controller for pressure, flow, or temperature control

• Integrated user panel with potentiometer for easy speed setting and monitoring

• Application macros: 3-wire, PID-control, motor potentiometer

• 5 digital inputs, 1 relay output, 1 analog input

• FlashDrop compatible – configure unpowered drives in seconds

• Wall mounting design

• 150% overload capacity for 60 seconds

• UL, cUL, CE, C-tick and GOST R approved

Applications:

• Mixers and agitators

• Conveyors and material handling systems

• Fans and blowers

• Pumps and pumping systems

• Food and beverage processing

• Simple OEM machinery

• HVAC and ventilation equipment

• General industrial automation

Technical Specifications:

System Compatibility:

• Compatible with three-phase induction motors

• FlashDrop tool for unpowered drive configuration (optional)

• Integrated user panel with potentiometer for local control

• Suitable for use with ABB motors and third-party motors

• No built‑in fieldbus communication (I/O‑based control only)

Related Products:

• ACS-CP-C – Basic control panel

• ACS-CP-A – Assistant control panel

• FlashDrop – Configuration tool for unpowered drives

• Braking resistors – For external dynamic braking

• Mounting kit – For panel mounting

• RFI-11 / RFI-12 / RFI-13 – External EMC filters

• ACS150-03E-02A4-4 – 0.75 kW version (lower power)

• ACS150-03E-04A1-4 – 1.5 kW version (higher power)
