ACS355-03E-12A5-4 5.5kW Machinery Drive 380-480V IP20 R3 | ABB

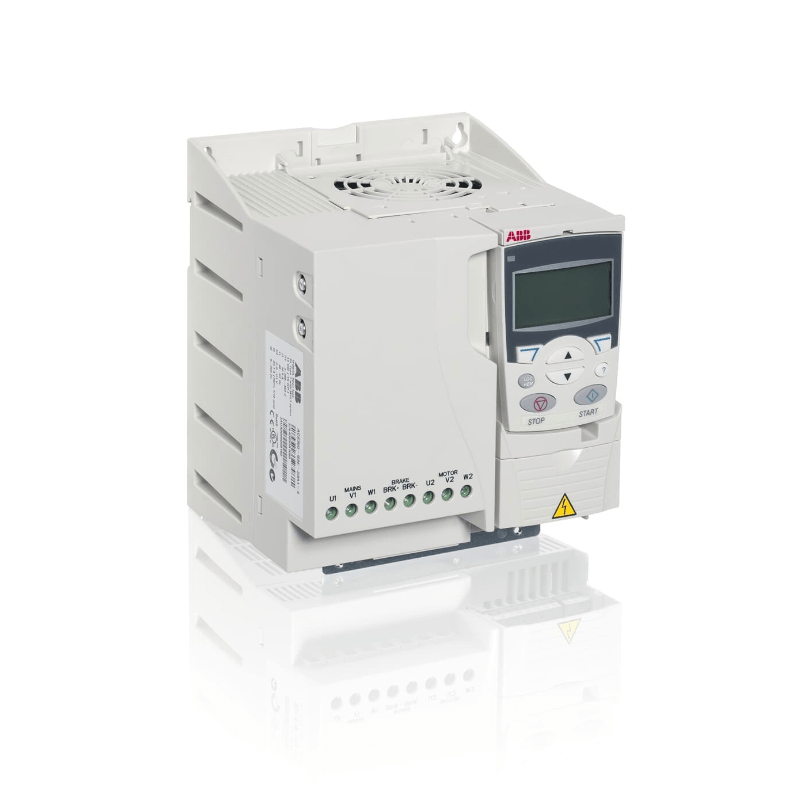

The Original New ABB ACS355-03E-12A5-4 is a 5.5 kW (7.5 HP) machinery drive from the ABB ACS355 series, engineered for reliable motor control in light to mid-range industrial and OEM machinery applications. Rated at 12.5 A with a 380–480 V three-phase input, this compact drive delivers efficient speed and torque control for conveyors, packaging machines, material handling equipment, gates and barriers, compressors, and bottling lines. Featuring an IP20 enclosure, integrated EMC filter, built-in brake chopper, and Safe Torque Off (STO) safety function as standard (SIL3 / PLe), the ACS355-03E-12A5-4 simplifies installation and reduces the need for external components. The drive is part of the ABB machinery drive portfolio and includes scalar and sensorless vector control modes, support for both induction and permanent magnet motors, and an 8-step built-in sequencer (16-step optional) for machine automation without an external PLC. Its compact R3 frame size makes it suitable for a wide range of OEM and machinery applications.

Core Engineering Highlights:
5.5 kW (7.5 HP) power rating | 12.5 A nominal output current | 380–480 V 3-phase input (±10%) | 0–599 Hz output frequency range | IP20 enclosure | Frame size R3 | Integrated EMC filter + built-in brake chopper | Safe Torque Off (STO) SIL3 / PLe as standard | Scalar (V/f), sensorless vector control, and closed-loop vector control | Induction and PM motor support | 8-step built-in sequencer (16-step optional) | 150% overload capacity for 60 seconds | –10°C to +50°C operating temperature | Wall-mounted design

Key Features:

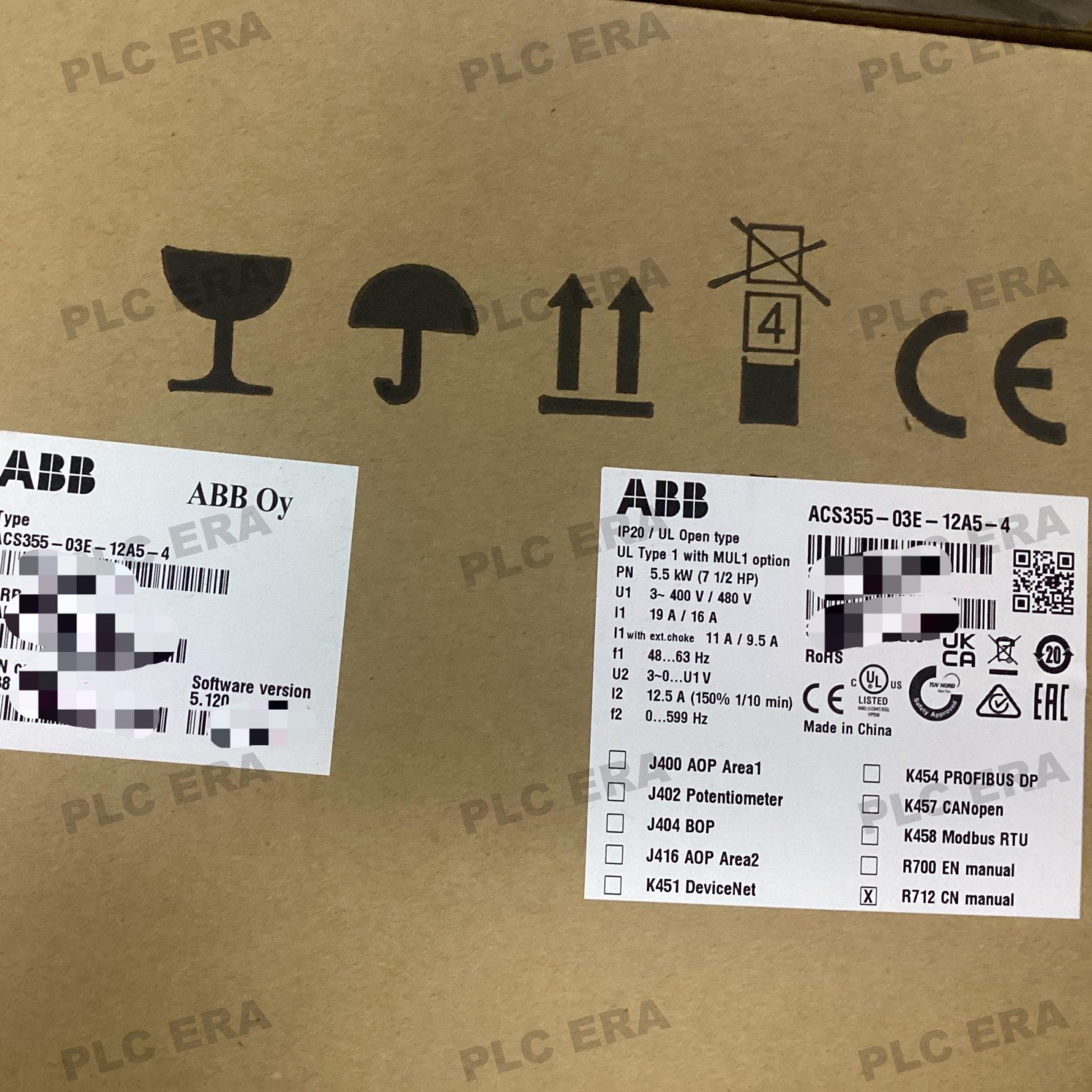

• Original New ABB ACS355-03E-12A5-4 drive (3ABD0000058250)

• 5.5 kW (7.5 HP) rated output power, 12.5 A nominal output current

• 380–480 V AC 3-phase input (±10%), 47.5–63 Hz

• 0–599 Hz output frequency range

• IP20 enclosure for control cabinet installation

• Frame size R3 with compact dimensions (236 × 169 × 169 mm)

• Integrated EMC filter for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking (external resistor required)

• Safe Torque Off (STO) safety function — SIL3 / PLe as standard

• Scalar (V/f), sensorless vector, and closed-loop vector control modes

• Supports both induction motors and permanent magnet (PM) motors

• 8-step built-in sequencer (16-step optional) for machine automation

• Extensive parameter set including PID control

• 5 digital inputs, 1 digital output, 1 relay output, 2 analog inputs, 1 analog output

• Auxiliary 24V DC output (max 200 mA)

• Real Time Clock (RTC) when assistant keypad fitted

• RS232 and RS485 communication interfaces

• FlashDrop tool compatible for unpowered configuration in seconds

• Wall-mounted design with space-saving enclosure

Applications:

• Conveyors and material handling systems

• Packaging machines and bottling lines

• Gates, doors, and barriers

• Compressors and blowers

• Food and beverage processing

• Textile and printing machinery

• Cutting and grinding equipment

• General industrial automation and OEM machinery

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, and PROFINET IO via optional fieldbus adapters

• FlashDrop tool for unpowered drive configuration in seconds

• Compatible with ABB ACS355 series accessories including mounting kits, external EMC filters, braking resistors, and I/O extension modules

• Suitable for use with ABB motors and third-party motors

• IP66 variant available for harsh and washdown environments

Related Products:

• ACS-CP-C – Basic control panel with numeric display

• ACS-AP-I – Assistant control panel with graphical display and RTC

• ACS355-03E-08A8-4 – 4 kW version (lower power)

• ACS355-03E-15A6-4 – 7.5 kW version (higher power)

• Fieldbus adapters – PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, PROFINET

• Braking resistors – For external dynamic braking applications

• Mounting kit – For panel or remote mounting of control panel

• FlashDrop tool – For unpowered drive configuration
