ACS355-03E-23A1-4 11kW Machinery Drive 380-480V IP20 R3 | ABB

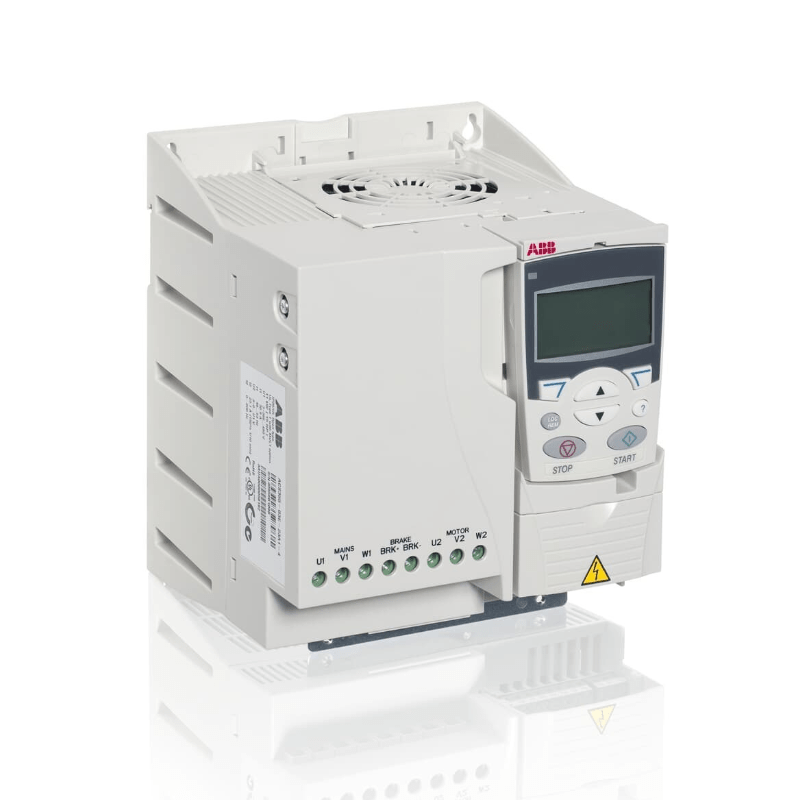

The Original New ABB ACS355-03E-23A1-4 is an 11 kW (15 HP) machinery drive from the ABB ACS355 series, engineered for reliable motor control in industrial and OEM machinery applications. Rated at 23.1 A with a 380–480 V three-phase input, this compact drive delivers efficient speed and torque control for conveyors, packaging machines, material handling equipment, gates and barriers, compressors, and bottling lines. Featuring an IP20 enclosure, integrated EMC filter, built-in brake chopper, and Safe Torque Off (STO) safety function as standard (SIL3 / PLe), the ACS355-03E-23A1-4 simplifies installation and reduces the need for external components. The drive is part of the ABB machinery drive portfolio and includes scalar and sensorless vector control modes, support for both induction and permanent magnet motors, and an 8-step built-in sequencer (16-step optional) for machine automation without an external PLC. Its compact R3 frame size makes it suitable for a wide range of OEM and machinery applications, from food and beverage processing to textile and printing machinery.

Core Engineering Highlights:
11 kW (15 HP) power rating | 23.1 A nominal output current | 380–480 V 3-phase input (±10%) | 0–599 Hz output frequency range | IP20 enclosure | Frame size R3 | Integrated EMC filter + built-in brake chopper | Safe Torque Off (STO) SIL3 / PLe as standard | Scalar and sensorless vector control | Induction and PM motor support | 8-step built-in sequencer (16-step optional) | 150% overload capacity for 60 seconds | –10°C to +50°C operating temperature

Key Features:

• Original New ABB ACS355-03E-23A1-4 drive (3AUA0000058192)

• 11 kW (15 HP) rated output power

• 23.1 A nominal output current

• 380–480 V AC 3-phase input, 50/60 Hz

• 0–599 Hz output frequency range

• IP20 enclosure for control cabinet installation

• Frame size R3 with compact dimensions (236 × 169 × 169 mm)

• Integrated EMC filter for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking (external resistor required)

• Safe Torque Off (STO) safety function — SIL3 / PLe as standard

• Scalar (V/f) and sensorless vector control modes

• Supports both induction motors and permanent magnet (PM) motors

• 8-step built-in sequencer (16-step optional) for machine automation

• 5 digital inputs, 1 digital output, 1 relay output, 2 analog inputs, 1 analog output

• Auxiliary 24V DC output (max 200 mA)

• PID control for closed-loop applications

• IP20 protection rating

• Wall-mounted design with R3 frame size

• Overall weight: approx. 3.1–3.6 kg

• EAN: 6438177223672

Applications:

• Conveyors and material handling systems

• Packaging machines and bottling lines

• Food and beverage processing

• Textile and printing machinery

• Cutting and grinding equipment

• Material handling and OEM machinery

• Automotive and agricultural machinery

• Rubber and plastics processing

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, and PROFINET IO via optional fieldbus adapters

• Compatible with ABB ACS355 series accessories including control panels (ACS-CP-A, ACS-CP-C), external EMC filters (RFI-11, RFI-12, RFI-13, LRFI-31, LRFI-32), and communication modules

• Suitable for use with ABB motors and third-party motors

• IP66 variant available for harsh and washdown environments

Related Products:

• ACS-CP-A – Assistant control panel with graphical display and RTC

• ACS-CP-C – Basic control panel with numeric display

• ACS355-03E-15A6-4 – 7.5 kW version (lower power)

• ACS355-03E-31A0-4 – 15 kW version (higher power)

• Fieldbus adapters – PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, PROFINET

• Braking resistors – For external dynamic braking applications

• Mounting kit – For panel or remote mounting of control panel

• RFI-11 / RFI-12 / RFI-13 / LRFI-31 / LRFI-32 – External EMC filters
