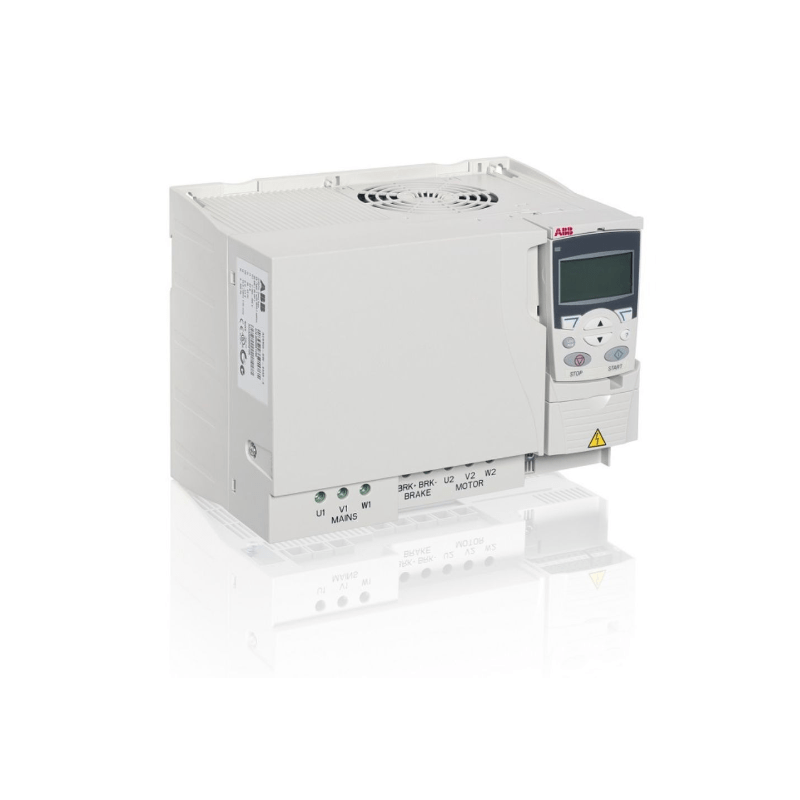

ACS355-03E-44A0-4 22kW Machinery Drive 380-480V IP20 R4 | ABB

The Original New ABB ACS355-03E-44A0-4 is a 22 kW (30 HP) machinery drive from the ABB ACS355 series, engineered for reliable motor control in demanding industrial and OEM machinery applications. Rated at 44 A with a 380–480 V three-phase input, this high-power drive delivers efficient speed and torque control for conveyors, compressors, mixers, extruders, packaging lines, and material handling equipment. Featuring an IP20 enclosure, integrated EMC filter, built-in brake chopper, and Safe Torque Off (STO) safety function as standard (SIL3 / PLe), the ACS355-03E-44A0-4 simplifies installation and reduces the need for external components. The drive is part of the ABB machinery drive portfolio and includes scalar and sensorless vector control modes, support for both induction and permanent magnet motors, and an 8-step built-in sequencer (16-step optional) for machine automation without an external PLC. Its compact R4 frame size makes it suitable for a wide range of OEM and machinery applications, from food and beverage processing to textile and printing machinery.

Core Engineering Highlights:
22 kW (30 HP) power rating | 44 A nominal output current | 380–480 V 3-phase input (±10%) | 0–599 Hz output frequency range | IP20 enclosure | Frame size R4 | Integrated EMC filter + built-in brake chopper | Safe Torque Off (STO) SIL3 / PLe as standard | Scalar and sensorless vector control | Induction and PM motor support | 8-step built-in sequencer (16-step optional) | IE2 efficiency | –10°C to +40°C operating temperature | Wall-mounted design | FlashDrop tool compatible

Key Features:

• Original New ABB ACS355-03E-44A0-4 drive (3ABD0000058255)

• 22 kW (30 HP) rated output power, 44 A nominal output current

• 380–480 V AC 3-phase input (±10%), 47.5–63 Hz

• 0–599 Hz output frequency range

• IP20 enclosure for control cabinet installation

• Frame size R4 with compact dimensions (244 x 260 x 169 mm)

• Integrated EMC filter for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking (external resistor required)

• Safe Torque Off (STO) safety function — SIL3 / PLe as standard

• Scalar (V/f) and sensorless vector control modes

• Supports both induction motors and permanent magnet (PM) motors

• 8-step built-in sequencer (16-step optional) for machine automation

• 5 digital inputs, 1 digital output, 1 relay output, 2 analog inputs, 1 analog output

• Auxiliary 24V DC output (max 200 mA)

• FlashDrop tool for unpowered configuration in seconds

• Modbus RTU communication via RS-485

• IE2 efficiency level

• Overload capacity: 150% for 60 seconds

• Wall-mounted design with R4 frame size

• Optional Assistant Control Panel with USB support and Real-Time Clock

Applications:

• Conveyors and material handling systems

• Compressors and blowers

• Packaging machines and bottling lines

• Mixers, extruders and centrifuges

• Food and beverage processing

• Textile and printing machinery

• Gates, doors, and barriers

• Material handling and logistics equipment

• OEM machinery and industrial automation

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, and PROFINET IO via optional fieldbus adapters

• Supports ABB Assistant Control Panel for enhanced user interface and real-time clock functionality

• FlashDrop tool for unpowered drive configuration in seconds

• Compatible with ABB ACS355 series accessories including mounting kits, external EMC filters, braking resistors, and I/O extension modules

• Suitable for use with ABB motors and third-party motors

• IP66 variant available for harsh and washdown environments

Related Products:

• ACS-CP-C – Basic control panel with numeric display

• ACS-AP-I – Assistant control panel with graphical display

• ACS355-03E-31A0-4 – 15 kW version (lower power)

• ACS355-03E-44A0-4 – 22 kW version (current model)

• Fieldbus adapters – PROFIBUS DP, CANopen, DeviceNet, EtherNet/IP, PROFINET

• Braking resistors – For external dynamic braking applications

• Mounting kit – For panel or remote mounting of control panel

• FlashDrop tool – For unpowered drive configuration

• RFI-11 / RFI-12 / RFI-13 – External EMC filters

• IP66 hood – Optional for harsh and washdown environments
